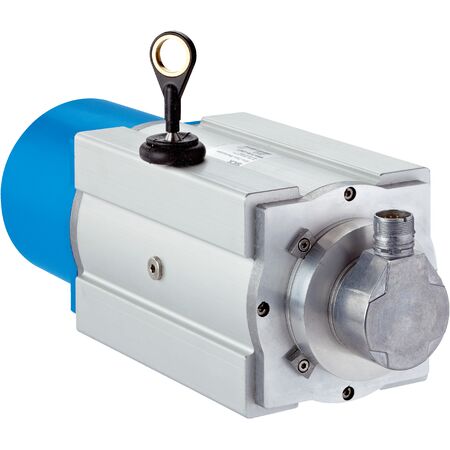

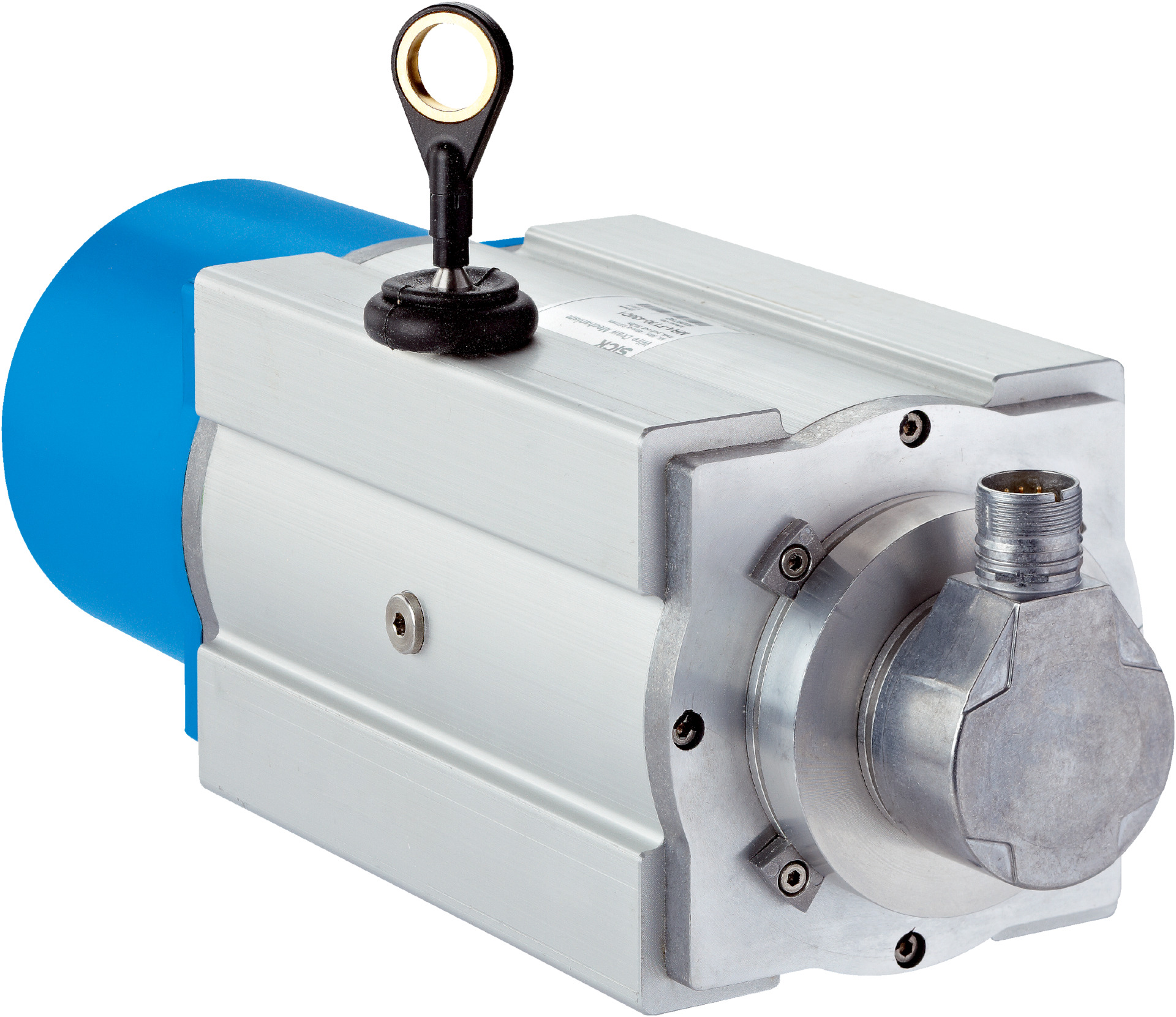

Incremental Wire Draw Encoder | 30 m Measurement Range | 0.03 mm Resolution | IP64/IP67 Rated | by SICK
The Incremental Wire Draw Encoder PRF13-C1AM3020 offers a measurement range of up to 30 m with a high resolution of 0.03 mm, making it ideal for industrial automation and safety-related applications. Designed for reliability, it features robust aluminum and plastic housing with IP64/IP67 protection, ensuring durability in challenging environments. With a long life of approximately 1,000,000 cycles, this encoder is perfect for precise length measurement and machine monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Wire Draw Encoder | 30 m Measurement Range | 0.03 mm Resolution | IP64/IP67 Rated | by SICK
Brand: SICK
SKU: 1034333
Alternatively Known As: Incremental Wire Draw Encoder, Length Measurement Sensor, Safety Wire Draw Sensor
Technical Specifications
- Measurement range: 0 m to 30 m
- Resolution: 0.03 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: Incremental / TTL / RS-422
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 300 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.5 kg
Key Features
- Measurement range up to 30 m
- High resolution of 0.03 mm
- Repeatability ≤ 2 mm and linearity ≤ ± 2 mm
- Programmable incremental encoders with TTL/RS-422 interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from -30 °C to +70 °C
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 0.7 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PRF13-C1AM3020 is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
