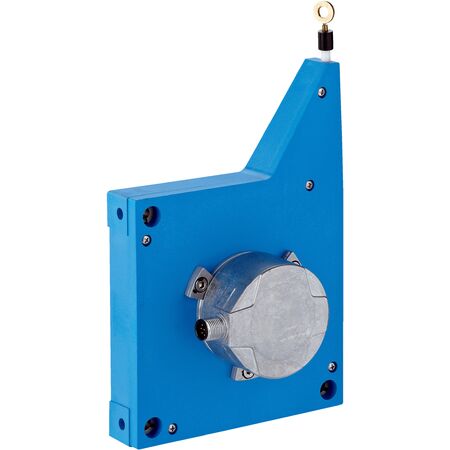

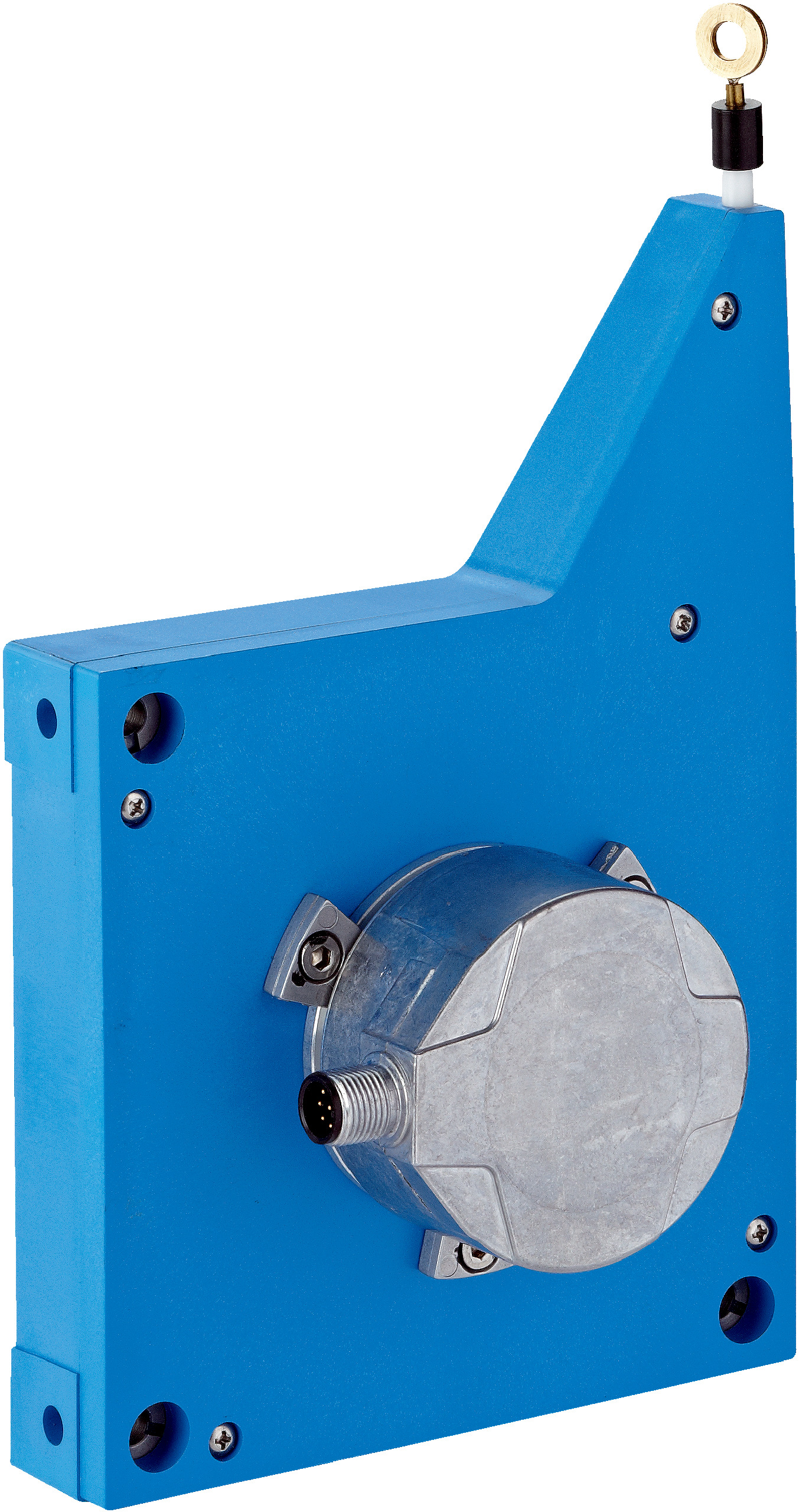

Incremental Wire Draw Sensor | 0.02 mm Resolution | IP50 Enclosure | by SICK
The Incremental Wire Draw Sensor PFG13-A1CM0544 offers high measurement accuracy with a 0.02 mm resolution, making it ideal for industrial automation and safety systems. Designed for reliability, it features a robust plastic Noryl housing and stainless steel measuring wire, ensuring a long service life of up to 1,000,000 cycles. With an operating temperature range of -30 °C to +70 °C, this sensor is perfect for precise position and length measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / RS-422
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V to 5.5 V
- Operating current: 40 mA (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Mounted encoder: DFS60, DFS60A-S1AC16384
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.1 kg
Key Features
- High measurement accuracy with 0.02 mm resolution
- Robust design with plastic Noryl housing and stainless steel measuring wire
- Long service life with up to 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- IP50 enclosure rating with IP67 for mounted mechanic and encoder
- Spring return force between 4.5 N and 7 N
- Communication via Incremental / TTL / RS-422 interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety sensor systems to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems requiring precise wire draw measurement
- Position and length measurement in manufacturing processes
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low operating current (40 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PFG13-A1CM0544 Incremental Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety measurement applications.
