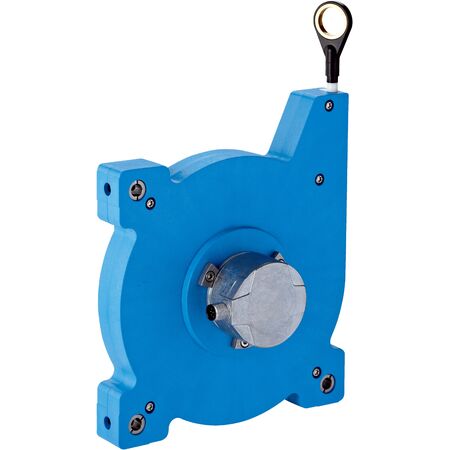

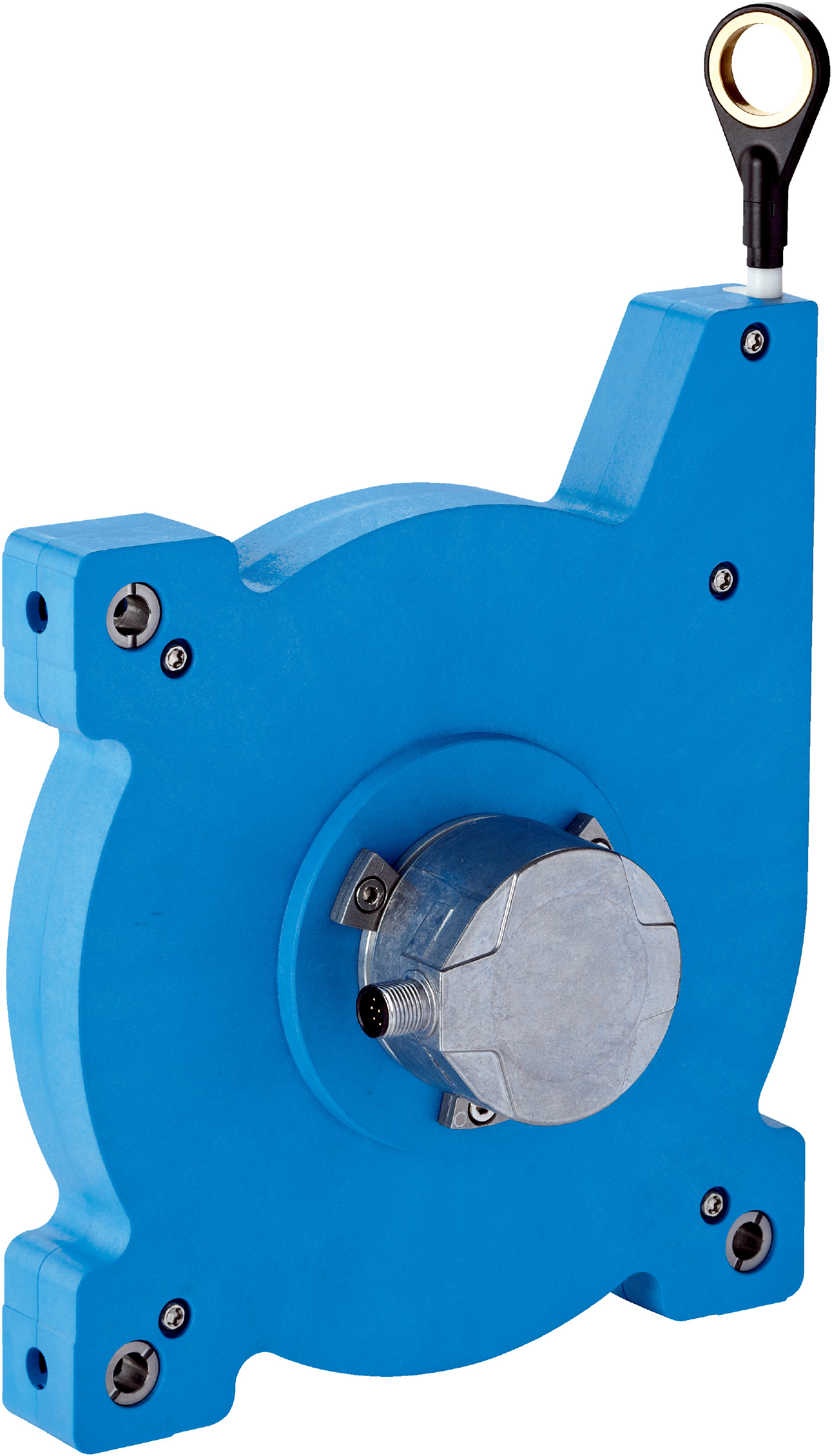

Incremental Wire Draw Sensor | 0 m to 10 m Measurement Range | 0.008 mm Resolution | IP67 Rated | by SICK
The Incremental Wire Draw Sensor is designed for precise linear measurement with a measurement range of 0 m to 10 m and a high resolution of 0.008 mm. Ideal for industrial automation and safety monitoring, this sensor features robust mechanics and operates in temperatures from –30 °C to +70 °C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.008 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / HTL
- Supply voltage: 4.5 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder: DFS60, DFS60A-S1PC65536
- Enclosure rating: IP50 sensor, IP67 mounted mechanic
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 2.2 kg
Key Features
- Measurement range of 0 m to 10 m
- High resolution of 0.008 mm
- Repeatability ≤ 0.2 mm
- Linearity ≤ ± 2 mm
- Hysteresis ≤ 0.4 mm
- Programmable and configurable output with factory TTL setting
- Robust mechanics with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating IP50 for sensor, IP67 for mounted mechanic
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise linear measurement
- Position feedback in manufacturing processes
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable stainless steel measuring wire extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFG19-P1CM10PP is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
