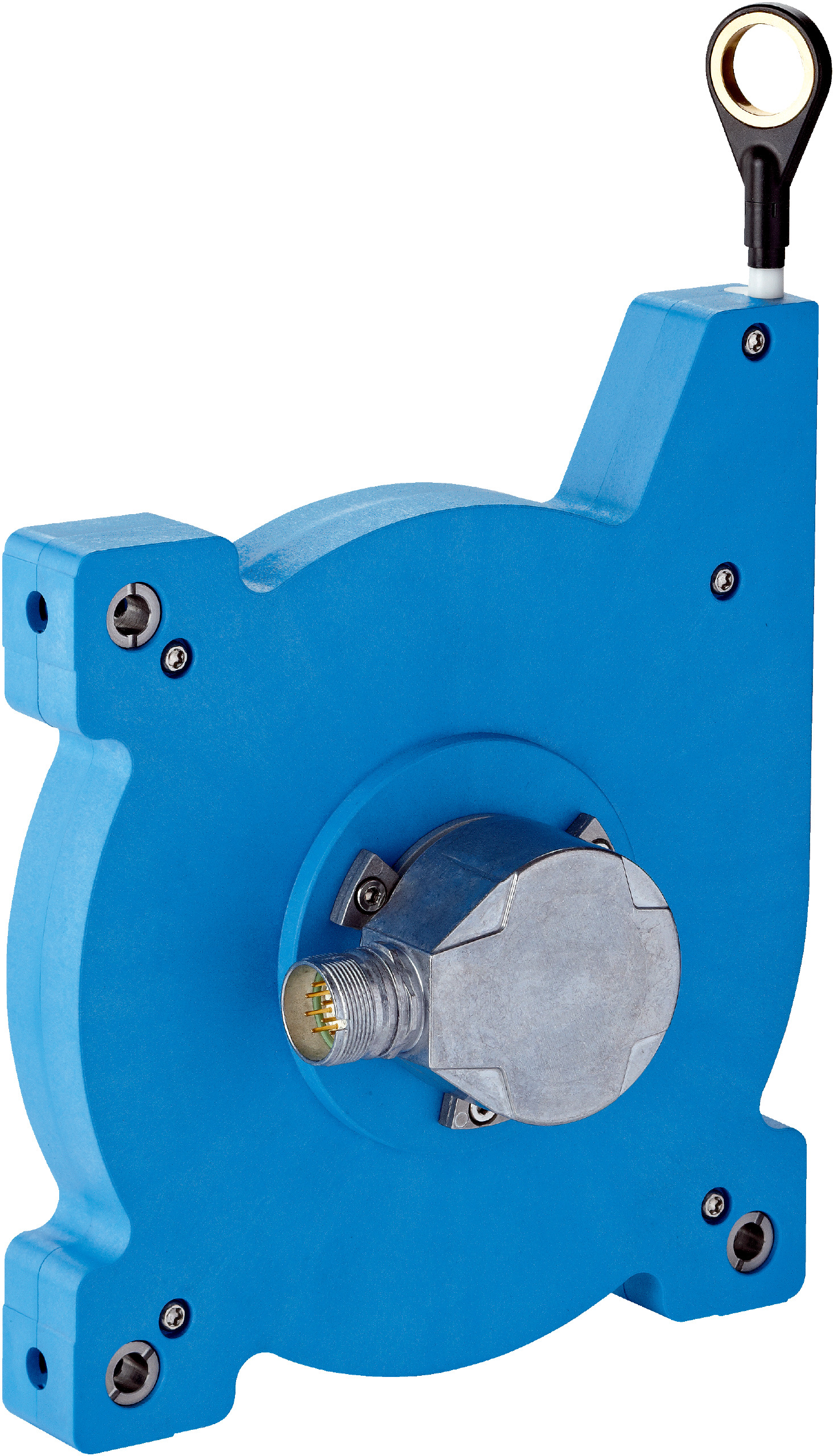

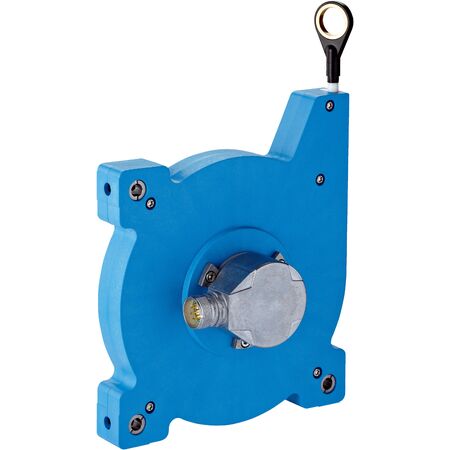

Incremental Wire Draw Sensor PFG19-P1AM10PP | 10m Measurement Range | 0.008mm Resolution | IP50 Rated | by SICK
The Incremental Wire Draw Sensor PFG19-P1AM10PP offers a measurement range of up to 10 meters with an impressive resolution of 0.008 mm, making it ideal for industrial automation and precise length measurement applications. Designed for robust performance, it features a durable stainless steel measuring wire and operates effectively in temperatures from -30 °C to +70 °C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.008 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Incremental / TTL / HTL
- Supply voltage: 4.5 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP67, encoder IEC 60529)
- Operating temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.2 kg
Key Features
- Measurement range up to 10 meters
- High resolution of 0.008 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- Programmable and configurable output with factory TTL setting
- Robust mechanics with plastic Noryl housing and stainless steel measuring wire
- Operating temperature range from -30 °C to +70 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- IP50 enclosure rating with IP67 for mounted mechanic and encoder
