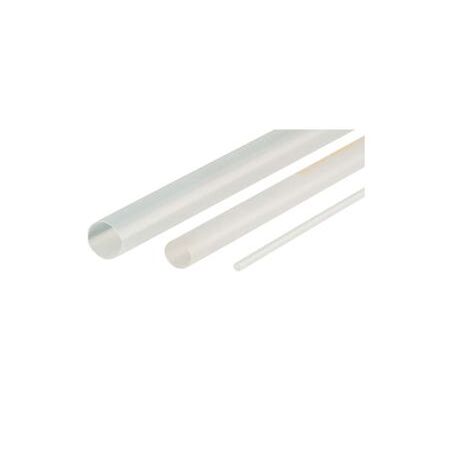

Heatshrink Thin Wall 6.4MM | Flame Retardant | UV Resistant | White by Cabac

BRAND: CABAC

SKU: XLP7WH

$56.80 List price: $68.80

Free pick up (over 1 meter)

For delivery quote message

30 Days Return Delivery Options

Heatshrink thin wall tubing with flame retardant and UV resistant properties—ideal for electrical insulation and protection. Built for durability, with a flexible polyolefin material that operates from -75 to +135°C.

Description

Product Name/Title: Heatshrink Thin Wall 6.4MM White

Brand: Cabac

SKU: XLP7WH

Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve 6.4mm, Flame Retardant Heatshrink

Technical Specifications

Material: Electron Beam Cross Linked Polyolefin
Continuous Operating Temperature: -75 to +135 °C
Shrinkage Temperature: > 105 °C
Longitudinal Shrinkage: < 5%
Tensile Strength: 10.4 MPa
Breakdown Voltage: 25 kV/mm wall thickness
Elongation at Break Point: 400%
Water Absorption: 0.15% max
Voltage Rating: 600V
Heat Shock Resistance: 250 °C for 4 hours
UL Certified: UL224 VW1 File No. E366157
Complies with ASTM D2671
Dimensions (H x L x W): n/a mm x 50000mm x n/a mm
Weight: 0.1 kg

Key Features

Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
Operating temperature range from -75 to +135 degrees Celsius
Resistant to common fluids, solvents, impact, and abrasion
UV resistant except for clear variants
Shrinks to approximately 50% of pre-shrink diameter upon heating

Professional Installation Requirements

Installation requires a heat gun for proper shrinking; professional installation recommended for electrical safety compliance.

Applications

Electrical insulation and protection of conductors
Colour coding of electrical wiring
Mechanical protection in electrical and associated industries
Environmental protection against fluids and solvents

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Durable and reusable insulation reduces waste from damaged wiring
UV resistance extends product life, reducing replacement frequency
Protects electrical components from environmental damage, enhancing system longevity

Warranty Information

Warranty details are provided by the manufacturer; typically covers manufacturing defects.

Available Now

The Cabac Heatshrink Thin Wall 6.4MM White is available for immediate purchase. Ideal for electrical insulation and protection applications in residential, commercial, and industrial settings.
