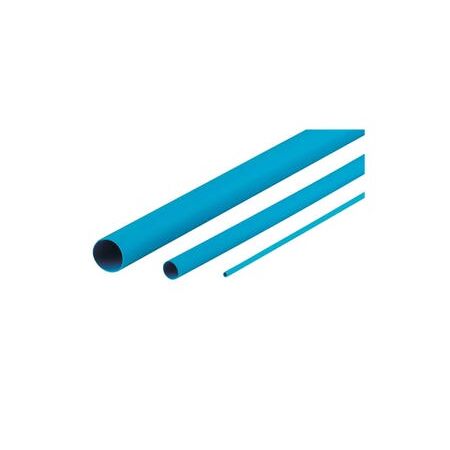

Heatshrink Thin Wall 2.4MM | Flame Retardant | Blue 1.2M by Cabac

BRAND: CABAC

SKU: XLP2.5BL/4FT

$1.10 List price: $1.40

Free pick up (over 1 meter)

For delivery quote message

30 Days Return Delivery Options

Heatshrink tubing with 2.4mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with resistance to abrasion, UV radiation, and solvents.

Description

Product Name/Title: Heatshrink Thin Wall 2.4MM Blue 1.2M

Brand: Cabac

SKU: XLP2.5BL/4FT

Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing

Technical Specifications

Material: Electron Beam Cross Linked Polyolefin
Pre-shrink diameter: 2.4mm
After-shrink diameter: 1.2mm
Recovered wall thickness: 0.48mm
Length: 1.2 meters (4 feet)
Continuous Operating Temperature: -75 to +135 °C
Shrinkage Temperature: > 105 °C
Longitudinal Shrinkage: < 5%
Tensile Strength: 10.4 MPa
Breakdown Voltage: 25 kV/mm wall thickness
Elongation at Break Point: 400%
Water Absorption: 0.15% max
Voltage Rating: 600V
Heat Shock Resistance: 250 °C for 4 hours
UL224 VW1 File No. E366157 certified
Complies with ASTM D2671
Dimensions (H x L x W): 2.4mm x 1200mm x 2.4mm
Weight: 0.1 kg

Key Features

Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
Operating temperature range from -75 to +135 degrees Celsius
Resistant to common fluids, solvents, abrasion, and UV radiation
Shrinks to approximately 50% of pre-shrink diameter upon heating
Flexible and impact resistant
UL certified and compliant with ASTM D2671

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure proper application and safety.

Applications

Electrical insulation and protection of conductors
Colour coding in electrical and associated industries
Protection against environmental factors such as fluids and solvents
Mechanical protection in electrical installations

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Durable and reusable protection reduces need for frequent replacements
UV resistance extends product life, reducing waste
Protects electrical components, enhancing energy efficiency and safety

Warranty Information

Warranty information not specified; typically covered by manufacturer against defects.

Available Now

The Cabac Heatshrink Thin Wall 2.4MM Blue 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
