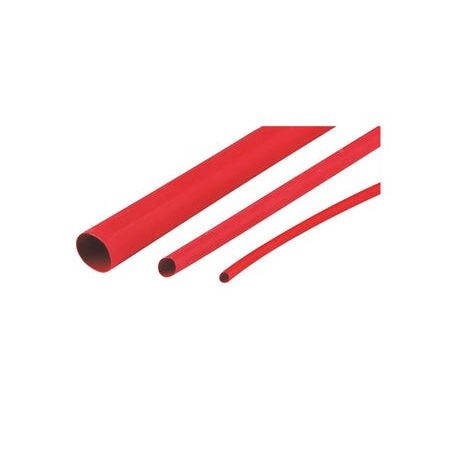

Heatshrink Thin Wall Tubing 6.4MM Red | Flame Retardant | Flexible & UV Stabilised by Cabac
Cabac Heatshrink Thin Wall 6.4MM Red 10M Box is a flame retardant, flexible heat shrink tubing used for electrical insulation, protection, and colour coding, suitable for harsh environments with resistance to fluids and abrasion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 6.4MM Red 10M Box
Brand: Cabac
SKU: XLP7RD-10M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Pre-shrink diameter: 6.4mm
- After-shrink diameter: 3.2mm
- Recovered wall thickness: 0.56mm
- Length: 10m
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 6.4mm x 10000mm x 6400mm
- Weight: 0.05 kg
Key Features
- Flame retardant
- Flexible and resistant to impact and abrasion
- Made from electron beam cross-linked polyolefin
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- UV stabilised except clear variants
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation requires heat application using a suitable heat gun; professional installation recommended for electrical safety compliance.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV stabilisation extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Heatshrink Thin Wall 6.4MM Red 10M Box is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
