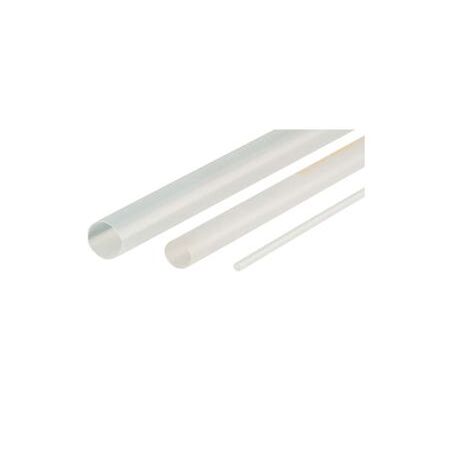

Heatshrink Thin Wall Tubing 1.6MM Clear | Flexible & Abrasion Resistant | 10M Length by Cabac
Cabac Heatshrink Thin Wall 1.6MM Clear 10M Box is a chemically cross-linked polyolefin tubing designed for electrical insulation, colour coding, and mechanical protection with operating temperature from -75°C to +135°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 1.6MM Clear 10M Box
Brand: Cabac
SKU: XLP1.5CL-10M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Clear Heatshrink Tubing, XLP Heatshrink, Electrical Heatshrink Sleeve
Technical Specifications
- Material: Chemically cross-linked, thermally stabilised polyolefin
- Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: >100°C
- Longitudinal Shrinkage: <5%
- Tensile Strength: 16 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohm cm
- Elongation at Break: 400%
- Water Absorption: 0.15% max
- Flammability: Passed ASTM-D-2671 (Clear variant is flammable and conforms to MIL-1-23053/5 Class 2)
- UV Stability: All tubing stable except clear variant
- Voltage Rating: 600V
- Compliant Standards: UL224 VW1 File No. E366157
- Conformant Standards: MIL-1-23053/5; JIS
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.05 kg
Key Features
- Space saving design with handy counter size box
- Keeps XLP Thinwall Heatshrink tubing dust and dirt free
- Offers flexibility in length - buy as much or as little as needed
- Highly flexible chemically cross-linked polyolefin tubing
- Abrasion and impact resistant
- For use in all electrical and electronic applications
- Full range 1.5mm to 125mm diameter with 2:1 shrink ratio
- Available in most colours on reels or 4ft (1.2m) lengths
- In-house cutting facility available for cut sleeves
Professional Installation Requirements
- Professional installation is recommended to ensure proper application and safety, especially in electrical systems.
Applications
- Electrical and electronic insulation
- Colour coding of wires and cables
- Mechanical protection of wiring
- Use in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and abrasion resistant, reducing need for frequent replacements
- Chemically cross-linked material enhances longevity and performance
- Reduces electrical waste by protecting wiring and components
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Clear 10M Box is available for immediate purchase. Ideal for electrical insulation, wiring protection, and colour coding applications.
