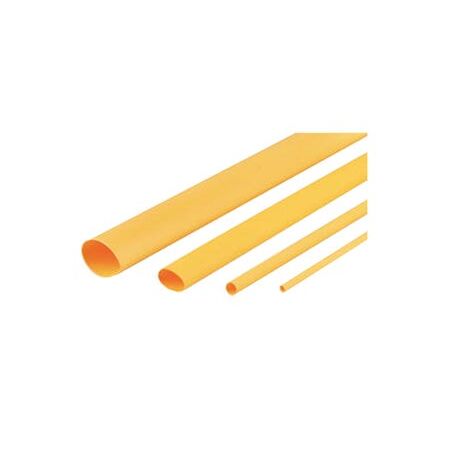

Heatshrink Thin Wall Tubing 50.8MM | -75 to +135°C | Flame Retardant & UV Resistant | 25m Roll by Cabac
The Cabac Heatshrink Thin Wall 50.8MM is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding, suitable for harsh environments with resistance to fluids, solvents, abrasion, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 50.8MM Box
Brand: Cabac
SKU: XLP51Y
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve Roll
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 50.8mm
- After-shrink diameter: 25.4mm
- Recovered wall thickness: 1.1mm
- Length: 25m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- Dimensions (H x L x W): 25mm x 25000mm x 508mm
- Weight: 0.3 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation requires heating with a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation. Professional installation recommended for electrical safety compliance.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides durable protection extending the lifespan of electrical components, reducing waste
- UV resistance reduces degradation and replacement frequency
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Warranty details available upon request from Cabac; typically includes coverage against manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 50.8MM roll is available for immediate purchase, ideal for electrical insulation and protection applications in industrial, commercial, and residential settings.
