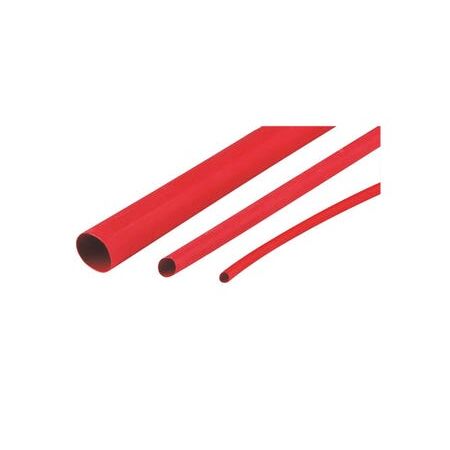

Heatshrink Thin Wall Tubing 102MM Red | Flame Retardant | Flexible & UV Stabilised by Cabac
Cabac Heatshrink Thin Wall 102MM Red is a flame retardant, flexible polyolefin tubing used for electrical insulation, protection, and colour coding with resistance to fluids, solvents, and abrasion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 102MM Red
Brand: Cabac
SKU: XLP102RD
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 102mm
- After-shrink diameter: 50.8mm
- Recovered wall thickness: 1.35mm
- Length: 1 metre
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 102mm x 1000mm x 102mm
- Weight: 0.05 kg
Key Features
- Flame retardant thin wall heat shrink tubing
- Made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact and abrasion
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- UV stabilised except clear variants
- Resistant to common fluids and solvents
Professional Installation Requirements
- Professional installation recommended to ensure proper heat application and secure fitting using appropriate heat gun tools.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against common fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- UV stabilisation extends product life reducing waste
- Durable material reduces need for frequent replacement
- Protects electrical components enhancing energy efficiency
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 102MM Red is available for immediate purchase, ideal for electrical insulation and protection applications.
