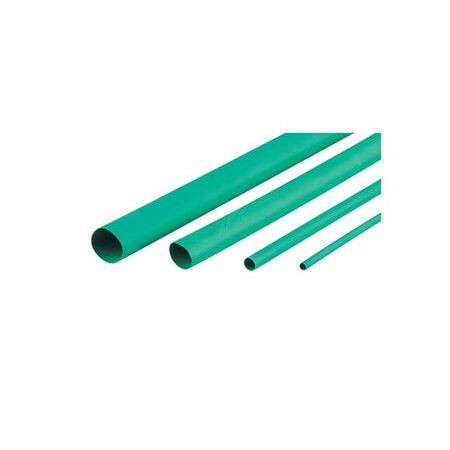

Heatshrink Thin Wall Tubing 4.8MM Green | Flame Retardant | Flexible & UV Resistant by Cabac
Cabac Heatshrink Thin Wall 4.8MM Green is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 4.8MM Green
Brand: Cabac
SKU: XLP5G
Alternatively Known As: Thin Wall Heat Shrink Tubing, Green Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 100000mm x n/a mm
- Weight: 0.2 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variant which may fade over time
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
Professional Installation Requirements
- Installation requires heat application using a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids, solvents, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Warranty details available upon request from Cabac; typically covers manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 4.8MM Green is available for immediate purchase, ideal for electrical insulation and protection applications in industrial and residential settings.
