Heatshrink Dual Wall Glue Tube | 40mm Diameter | 3:1 Shrink Ratio | Flame Retardant by Cabac

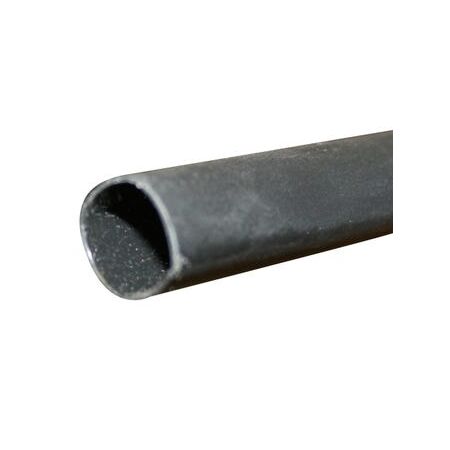

Cabac Heatshrink Dual Wall Glue L 40-13 1.2M is a thin-walled, flexible, flame-retarded polyolefin heatshrink tube with a glue-lined inner surface, ideal for electrical and mechanical protection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Dual Wall Glue L 40-13 1.2M
Brand: Cabac
SKU: XDW38BK
Alternatively Known As: Dual Wall Heat Shrink Tubing, Glue Lined Heatshrink Tube, Flexible Heatshrink Sleeve, Flame Retardant Heatshrink
Technical Specifications
- Material: Dual wall, flexible, flame retarded polyolefin with modified polyamide adhesive sealant
- Continuous operating temperature: -55°C to +110°C
- Shrinkage temperature: Starts at 90°C, completed at 125°C
- Tensile strength: 10.5 MPa
- Elongation at break point: 200%
- Longitudinal shrinkage: 15%
- Breakdown voltage: 20 kV/mm wall thickness
- Volume resistivity: 1.0 x 10^14 ohm cm
- Water absorption: 0.5%
- Flammability: All tubing flame test passed
- UV resistance: Passed ISO 1408
- Voltage rating: 600 V
- Dimensions (H x L x W): 40mm x 1200mm x 40mm
- Weight: 0.05 kg
Key Features
- Highly flexible
- Very high shrink ratio 3:1
- Flame retarded
- Good mechanical adhesion
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper application and safety.
Applications
- Electrical insulation repair and strain relief on cords
- Mechanical protection for brake and fuel pipes in automotive industry
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant material enhances safety and reduces fire risk
- Durable and flexible design extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Heatshrink Dual Wall Glue L 40-13 1.2M is available now for immediate purchase. Ideal for electrical insulation and mechanical protection applications.
