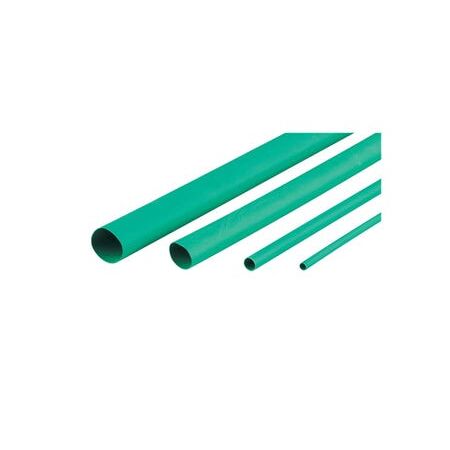

Heatshrink Thin Wall Tubing 2.4MM Green | Flame Retardant | Flexible & UV Resistant | 1.2M by Cabac
The Cabac Heatshrink Thin Wall 2.4MM Green 1.2M is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding with resistance to fluids, abrasion, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2.4MM Green 1.2M
Brand: Cabac
SKU: XLP2.5G/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Green Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 2.4mm
- After-shrink diameter: 1.2mm
- Recovered wall thickness: 0.48mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): 2.4mm x 1200mm x 2.4mm
- Weight: 0.01 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
- Operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Professional installation is recommended to ensure proper application and safety, especially when used in electrical systems.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids, solvents, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces electrical waste
- UV resistance extends product life, reducing replacement frequency
- Protects electrical components from environmental damage, enhancing longevity
Warranty Information
Warranty information not specified; typically covered by standard manufacturer warranty.
Available Now
The Cabac Heatshrink Thin Wall 2.4MM Green 1.2M is available for immediate purchase, ideal for electrical insulation and protection applications.
