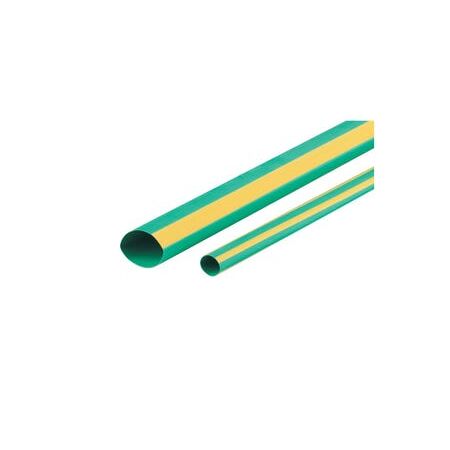

Heatshrink Thin Wall Tubing 50.8MM | Flame Retardant & UV Resistant | 1.2M by Cabac
The Cabac Heatshrink Thin Wall 50.8MM Yellow Green 1.2M is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 50.8MM Yellow Green 1.2M
Brand: Cabac
SKU: XLP51YG/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Yellow Green Heatshrink
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 50.8mm
- After-shrink diameter: 25.4mm
- Recovered wall thickness: 1.1mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250 °C for 4 hours
- UV Stabilised except clear variants
- Dimensions (H x L x W): 50.8mm x 1200mm x 50.8mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, impact and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter for tight fitting insulation
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 50.8MM Yellow Green 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection applications in industrial and commercial settings.
