Trade Discount 18%
Heatshrink Thin Wall Tubing 6.4MM | -75°C to +135°C | Flexible & Abrasion Resistant | Clear by Cabac

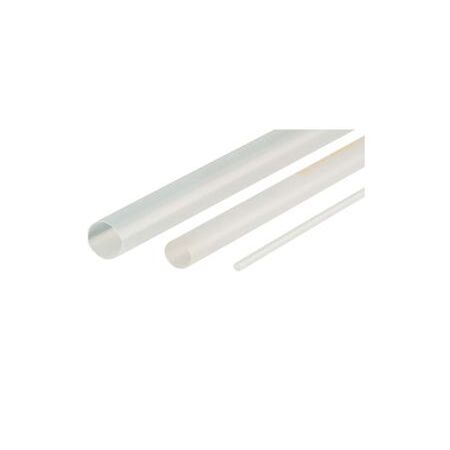

Cabac Heatshrink Thin Wall 6.4MM Clear 5M Box is a chemically cross-linked polyolefin tubing designed for electrical insulation, colour coding, and mechanical protection with operating temperature from -75°C to +135°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 6.4MM Clear 5M Box
Brand: Cabac
SKU: XLP7CL-5M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Clear Heatshrink Tube, XLP Heatshrink, Electrical Heatshrink Sleeve
Technical Specifications
- Material: Chemically cross-linked, thermally stabilised flame retardant polyolefin
- Continuous Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: >100°C
- Longitudinal Shrinkage: <5%
- Tensile Strength: 16 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohm cm
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Flammability: Passed ASTM-D-2671 (except clear variant which is flammable)
- UV Stability: All tubing stable except clear
- Voltage Rating: 600V
- Compliant Standards: UL224 VW1 File No. E366157
- Conformant Standards: MIL-1-23053/5; JIS
- Dimensions (H x L x W): 6.4mm x 50mm x 6400mm
- Weight: 0.05 kg
Key Features
- Highly flexible
- Abrasion and impact resistant
- For use in all electrical and electronic applications
- In-house cutting facility available for cut sleeves
- Full range 1.5mm to 125mm diameter with 2:1 shrink ratio
- Available in most colours on reels or 4ft (1.2m) lengths
- Range is UV stabilised except clear variant
Professional Installation Requirements
- Professional installation recommended to ensure proper shrinking and insulation integrity using heat gun or heat tunnel.
Applications
- Electrical and electronic insulation
- Colour coding of wires and cables
- Mechanical protection of wiring
- Use in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and abrasion resistant, reducing need for frequent replacements
- Chemically cross-linked material enhances longevity
- Reduces electrical faults and waste by providing reliable insulation
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 6.4MM Clear 5M Box is available for immediate purchase. Ideal for electrical insulation and protection applications.
