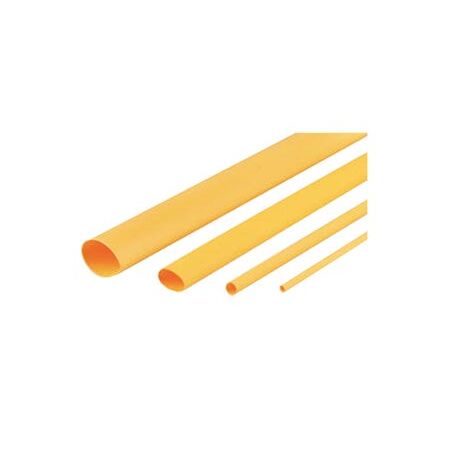

Heatshrink Thin Wall Tubing 4.8MM | Flame Retardant | Flexible & Durable | 100m Roll by Cabac
The Cabac Heatshrink Thin Wall 4.8MM tubing is a flame retardant, flexible polyolefin heat shrink tubing designed for electrical insulation, protection, and colour coding with resistance to fluids, solvents, abrasion, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 4.8MM Box
Brand: Cabac
SKU: XLP5Y
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve 4.8mm
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 4.8mm
- After-shrink diameter: 2.4mm
- Recovered wall thickness: 0.48mm
- Length: 100m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 0.48mm x 100000mm x 4800mm
- Weight: 0.2 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, impact and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and durable for electrical and mechanical protection
Professional Installation Requirements
- Professional installation recommended to ensure proper heat application and secure fitting using appropriate heat gun tools.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in wiring and cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste from damaged wiring
- UV resistance extends product life, reducing replacement frequency
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty information not specified; typically covered under manufacturer’s standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 4.8MM tubing is available for immediate purchase, ideal for electrical insulation and protection applications in industrial, commercial, and residential settings.
