Heatshrink Thin Wall Tubing 1.6MM Red | Flame Retardant | Flexible & UV Resistant | 10M by Cabac
Cabac Heatshrink Thin Wall 1.6MM Red 10M Box is a flame retardant, flexible heat shrink tubing used for electrical insulation, protection, and colour coding, resistant to fluids, solvents, abrasion, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

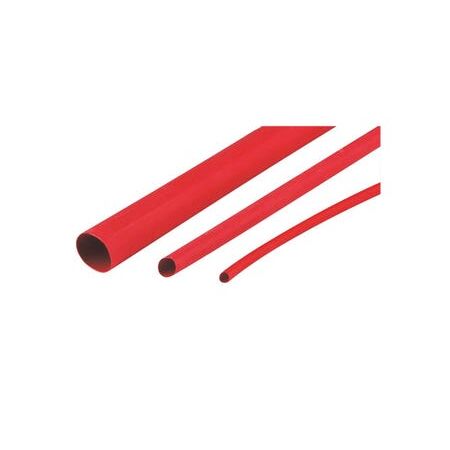

Product Name/Title: Heatshrink Thin Wall 1.6MM Red 10M Box
Brand: Cabac
SKU: XLP1.5RD-10M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Operating Temperature Range: -75 to +135 degrees Celsius
- Shrinkage Temperature: > 105 degrees Celsius
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 degrees Celsius for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 10000mm x n/a mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact and abrasion
- UV resistant except clear variants which may fade over time
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting insulation reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components from environmental damage, enhancing system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Red 10M Box is available now for immediate purchase. Ideal for electrical insulation and protection applications in residential, commercial, and industrial settings.
