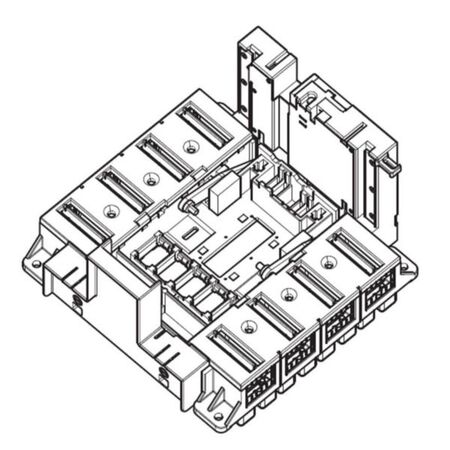

Front Terminals DPX³ 1600 Draw-Out Version | 3-Pole Configuration | Bolt Connection | by Legrand
Front terminals DPX³ 1600 draw-out version is designed for seamless integration into industrial electrical distribution systems. Featuring a 3-pole configuration and a bolt connection type, this product ensures reliable electrical connections and easy withdrawal with its Debro-lift mechanism. Ideal for commercial switchboards and modular switchgear assemblies, it supports energy-efficient operations and is compliant with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Front Terminals DPX³ 1600 Draw-Out Version | 3-Pole Configuration | Bolt Connection | by Legrand
Brand: Legrand
SKU: 422586
Alternatively Known As: DPX3 1600 Draw-Out Base, Legrand DPX³ 1600 Front Terminal, DPX³ 1600 Circuit Breaker Draw-Out Version
Technical Specifications
- Type: Draw-out version with Debro-lift mechanism
- Poles: 3P
- Electrical connection: Bolt connection
- Compatible as busbar adaptor and built-in device
- Suitable for DPX³ 1600 circuit breakers
- Dimensions (H x L x W): 400mm x 350mm x 300mm
- Weight: 15 kg
Key Features
- Draw-out version with Debro-lift mechanism for easy withdrawal while on base
- Front terminals for convenient electrical connections
- 3-pole configuration
- Bolt connection type for main circuit electrical connection
- Compatible as busbar adaptor and built-in device
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with modular switchboard systems and draw-out circuit breakers.
Applications
- Industrial electrical distribution systems
- Commercial switchboards and power cabinets
- Modular switchgear assemblies requiring draw-out circuit breakers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for modularity and ease of maintenance, reducing downtime and waste
- Supports energy-efficient electrical distribution systems
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand Front Terminals DPX³ 1600 draw-out version 3P is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
