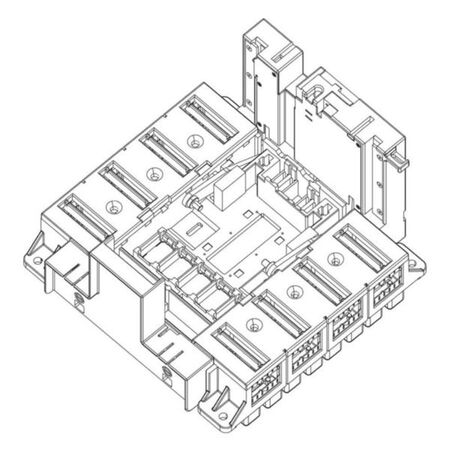

Rear Terminals DPX³ 1600 | Draw-Out Version | 4P Configuration | Bolt Connection | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 422589
$7,873.90 List price: $9,812.00
+ −
30 Days Return Delivery Options
Rear terminals DPX³ 1600 are designed for seamless integration with DPX³ 1600 circuit breakers, featuring a draw-out version with a Debro-lift mechanism for easy withdrawal. Ideal for industrial and commercial electrical distribution systems, these terminals ensure secure bolt connections and can function as busbar adaptors or built-in devices, enhancing operational efficiency and safety.

Product Name/Title: Rear Terminals DPX³ 1600 | Draw-Out Version | 4P Configuration | Bolt Connection | @EA of 1 | by Legrand

Brand: Legrand

SKU: 422589

Alternatively Known As: DPX3 1600 Rear Terminals, DPX³ 1600 Draw-Out Base, Legrand DPX 1600 4P Rear Terminal

Technical Specifications
  • Type: Draw-out version with Debro-lift mechanism
  • Poles: 4P
  • Connection: Bolt connection for main circuit
  • Compatible with DPX³ 1600 circuit breakers
  • Can function as busbar adaptor or built-in device
  • Dimensions (H x L x W): 400mm x 350mm x 300mm
  • Weight: 15 kg
Key Features
  • Draw-out version with Debro-lift mechanism for easy withdrawal while on base
  • Rear terminals for secure bolt connection
  • 4-pole configuration
  • Compatible with DPX³ 1600 circuit breakers
  • Can be used as busbar adaptor or built-in device
Professional Installation Requirements
  • Installation must be performed by a qualified electrician familiar with modular switchgear and draw-out circuit breaker systems to ensure safety and compliance.
Applications
  • Industrial electrical distribution systems
  • Commercial switchboards and power cabinets
  • Modular switchgear assemblies requiring draw-out circuit breakers
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Draw-out design facilitates maintenance and reduces downtime, minimizing waste and resource use
  • Durable construction extends product lifecycle, reducing replacement frequency
Warranty Information

Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand Rear Terminals DPX³ 1600 draw-out version 4P is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
