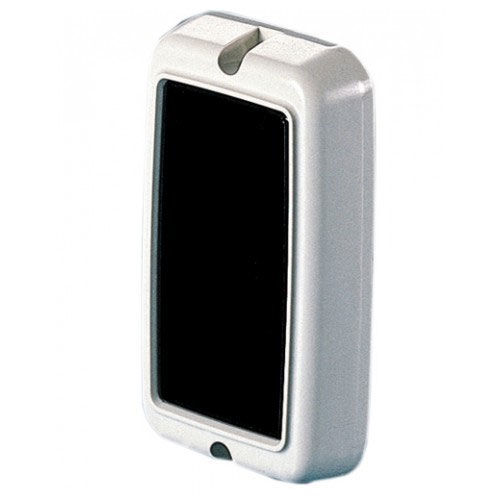

Indoor Infrared Beam Sensor 1m Range Contact Output Hardwired Ness

BRAND: Ness
SKU: 106-204
$196.30 List price: $261.70
+ −
30 Days Return Electricians Unlock Trade Access
Ness indoor infrared beam sensor features a 1m range and contact output. Ideal for indoor alarm systems.

Alternatively Known As: 1 m Indoor Infrared Beam Sensor, Reflective Photoelectric Beam Sensor, Presence Sensor

Technical Specifications
  • Model: PR-1B ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Detection System: Near-infrared direct-reflection type ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Protection Distance: 1 m or less ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Alarm Output: Dry-contact relay, Form C / 1c ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Contact Capacity: 30 V AC/DC, 0.5 A maximum, resistive load ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Supply Voltage: 10.5–22 V DC, non-polarity sensitive ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Current Consumption: 60 mA maximum at 12 V DC ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Response: Detection time of 100 ms or more with approximately 0.5-second off-delay ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Operating Temperature: -20 °C to +50 °C ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Mounting: Indoor wall mounting; optional flush-mount plate and L-bracket available ([takex-eng.co.jp](https://www.takex-eng.co.jp/ja/products/item/71/?utm_source=openai))
  • Housing: Off-white resin ([takex.com](https://takex.com/storage/series_download/Cat_PR-1B.pdf?utm_source=openai))
  • Dimensions (H x L x W): 106mm x 23.5mm x 62mm
  • Weight: 0.1 kg
Key Features
  • Direct-reflection infrared detection without a separate reflector
  • Detects movement and motionless objects within the 1 m sensing distance
  • Dry-contact relay output for connection to compatible alarm panels
  • Single-ended wiring, avoiding the need to run cable to a separate receiver
  • Compact design for unobtrusive indoor security installation
  • Sensitivity adjustment and visible alarm indication LED
  • Low-voltage hardwired operation
Professional Installation Requirements
  • Installation should be performed by a qualified security technician. Connect the low-voltage supply and relay output in accordance with the alarm panel manufacturer's wiring requirements and applicable electrical installation rules.
Applications
  • Indoor intruder alarm systems
  • Doorway, corridor and stairway presence detection
  • Unobtrusive security monitoring across short distances
  • Connection to alarm panels, access-control systems or other compatible dry-contact inputs
Standards & Compliance
  • AS/NZS 2201.1:2007 — relevant to the design, installation, commissioning and maintenance of intruder alarm systems; product-specific compliance was not stated in the manufacturer's documentation. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-2201-5-2008-117333_saig_as_as_245551/?utm_source=openai))
Environmental Benefits
  • Low-current 10.5–22 V DC operation may reduce energy consumption in continuously powered security installations.
  • Compact resin construction uses a relatively small material volume and supports unobtrusive, long-term installation.
  • Ness publishes a RoHS certificate for its product range; product-specific RoHS status should be confirmed where required. ([ness.com.au](https://ness.com.au/compliance))
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms. ([ness.com.au](https://ness.com.au/product-warranty))

Available Now

Available by special order through Ness and authorised Australian distributors. ([ness.com.au](https://ness.com.au/106-204))
