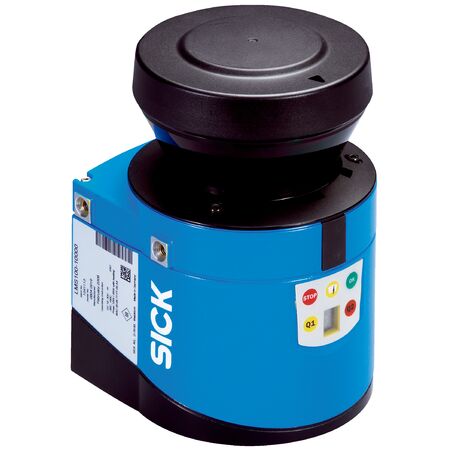

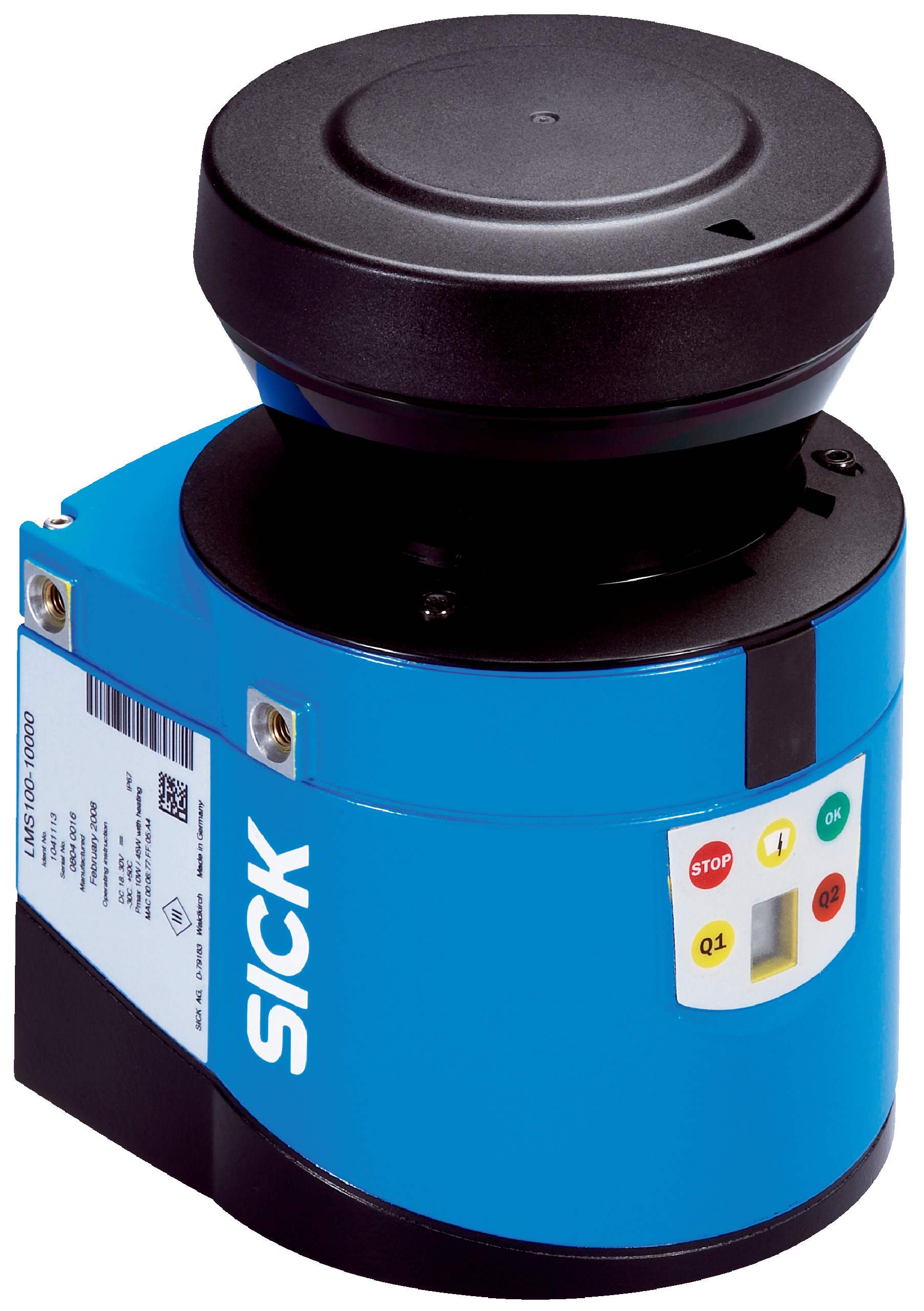

Indoor Laser Scanner LMS100-10000 | Infrared Light Source | IP65 Rated | 270° Aperture Angle | by SICK
The Indoor Laser Scanner LMS100-10000 features an infrared light source with a 905 nm wavelength and an impressive 270° horizontal aperture angle. Designed for indoor environment scanning and object detection, this scanner operates within a working range of 0.5 m to 20 m and includes fog correction for reliable performance. Ideal for industrial automation and safety monitoring, it ensures high accuracy and durability with its IP65 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Laser Scanner LMS100-10000 | Infrared Light Source | IP65 Rated | 270° Aperture Angle | by SICK
Brand: SICK
SKU: 1041113
Alternatively Known As: Indoor Laser Scanner, Infrared Laser Scanner, SICK LMS100, Industrial Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° or 0.5°
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: 22 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rate: 9.6 kBaud to 115.2 kBaud
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 270° horizontal aperture angle with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m to 20 m with fog correction
- IP65 rated enclosure for dust and water protection
- Light blue housing (RAL 5012) with robust mechanical design
- Multiple interfaces including Ethernet TCP/IP, RS-232 serial, and CAN
- 7-segment display with LEDs for device status and warnings
- High electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Indoor environment scanning and object detection
- Field evaluation and automation systems
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption
- Durable IP65 housing extends product lifespan reducing waste
- Supports automation that can optimize resource use and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LMS100-10000 Indoor Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation and indoor scanning applications.
