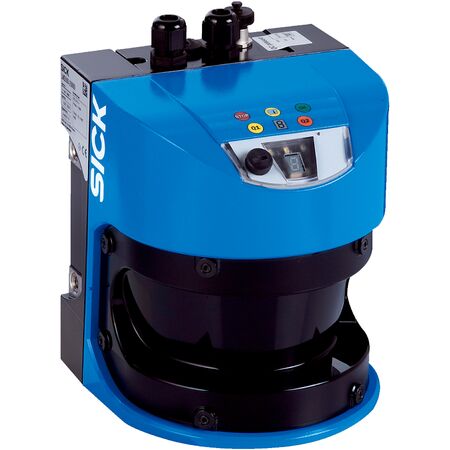

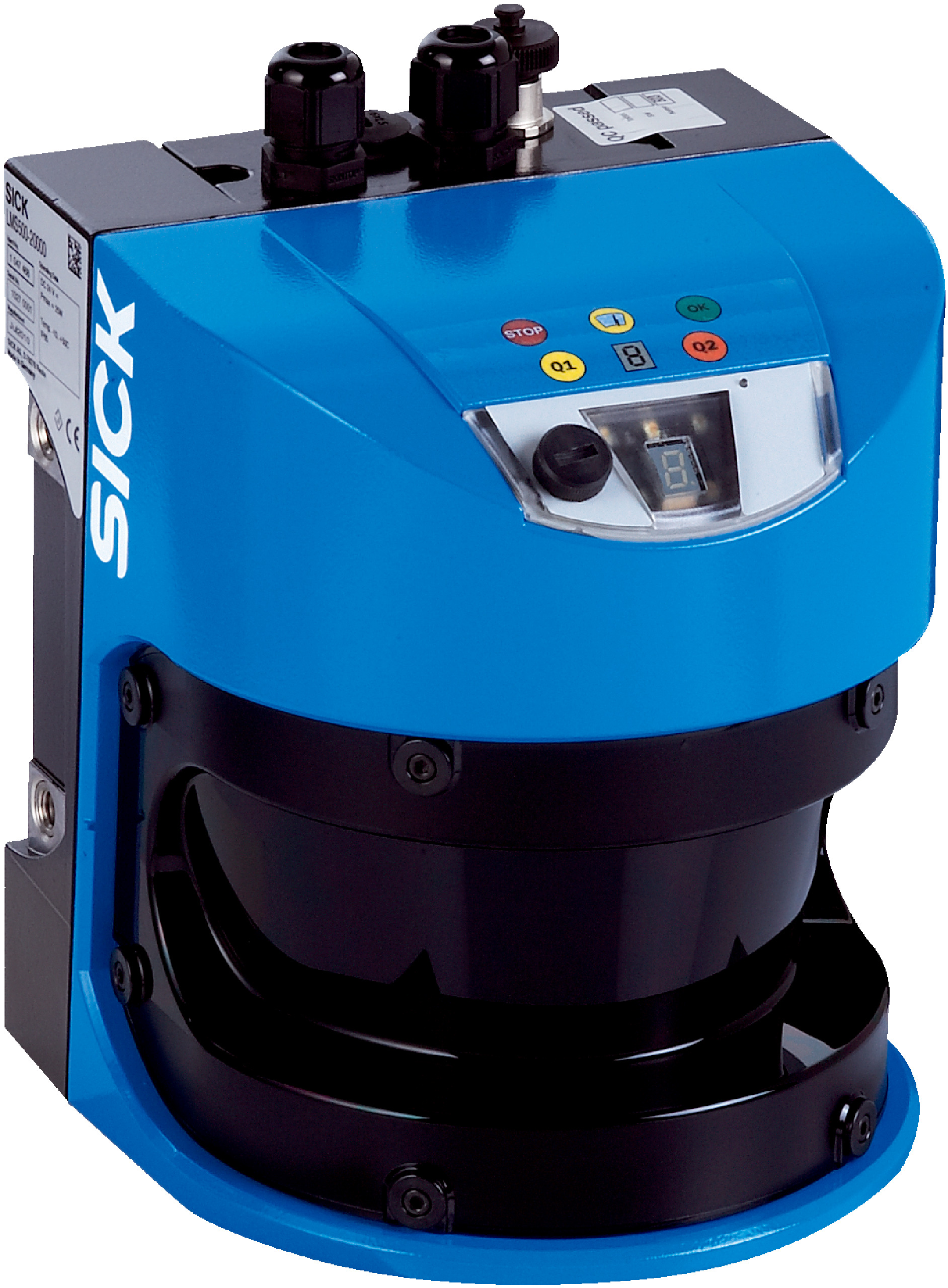

Indoor Laser Scanner LMS500-21000 Lite | High Resolution | IP65 Rated | 190° Aperture Angle | by SICK
The Indoor Laser Scanner LMS500-21000 Lite offers high resolution with a 0.25° angular resolution and a wide 190° aperture angle, making it ideal for indoor environment scanning and industrial automation. With multiple scanning frequencies and robust IP65-rated housing, this scanner ensures reliable performance in various applications, from object detection to safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Laser Scanner LMS500-21000 Lite | High Resolution | IP65 Rated | 190° Aperture Angle | by SICK
Brand: SICK
SKU: 1054153
Alternatively Known As: Indoor Laser Scanner, High Resolution Laser Scanner, SICK LMS500 Lite, Industrial Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Angular resolution: 0.25°, 0.5°, 1° selectable
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 12 mm
- Spot size divergence: 4.7 mrad
- Power consumption: 22 W
- Supply voltage: 24 V DC, ± 20%
- Housing material: AlSi12 with light blue (RAL 5012) color
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (IEC 61140:2016-11)
- Interfaces: Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), USB (Mini-USB)
- Digital inputs: 2, Digital outputs: 3
- Response time: ≥ 13 ms
- Weight: 3.7 kg
- Dimensions: 160 mm x 155 mm x 185 mm
- MTBF: > 100 years
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Impact resistance: IK05, IK06, IK07
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution with 0.25° angular resolution
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Working range from 0.2 m up to 80 m
- Self-heating for stable operation
- Robust housing with IP65 rating and scratch-resistant polycarbonate window
- Multiple interface options including Ethernet, Serial (RS-232, RS-422), and USB
- Advanced filtering options including echo, fog, particle, average, and glare filters
- High electromagnetic compatibility for industrial environments
- Shock and vibration resistant with IK05 to IK07 impact resistance
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Indoor environment scanning and measurement
- Object detection and evaluation
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 22 W
- Durable and robust design reduces need for frequent replacements
- Supports precise measurement reducing waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS500-21000 Lite laser scanner is available for immediate purchase, ideal for indoor industrial automation and safety applications.
