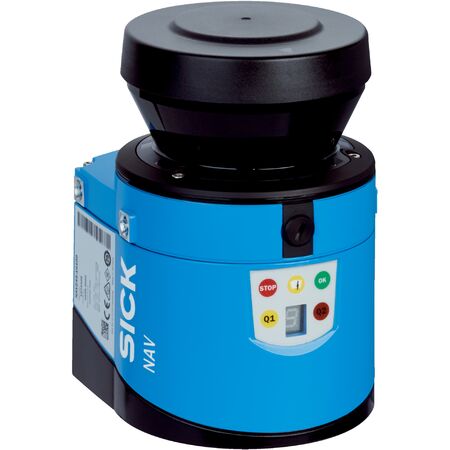

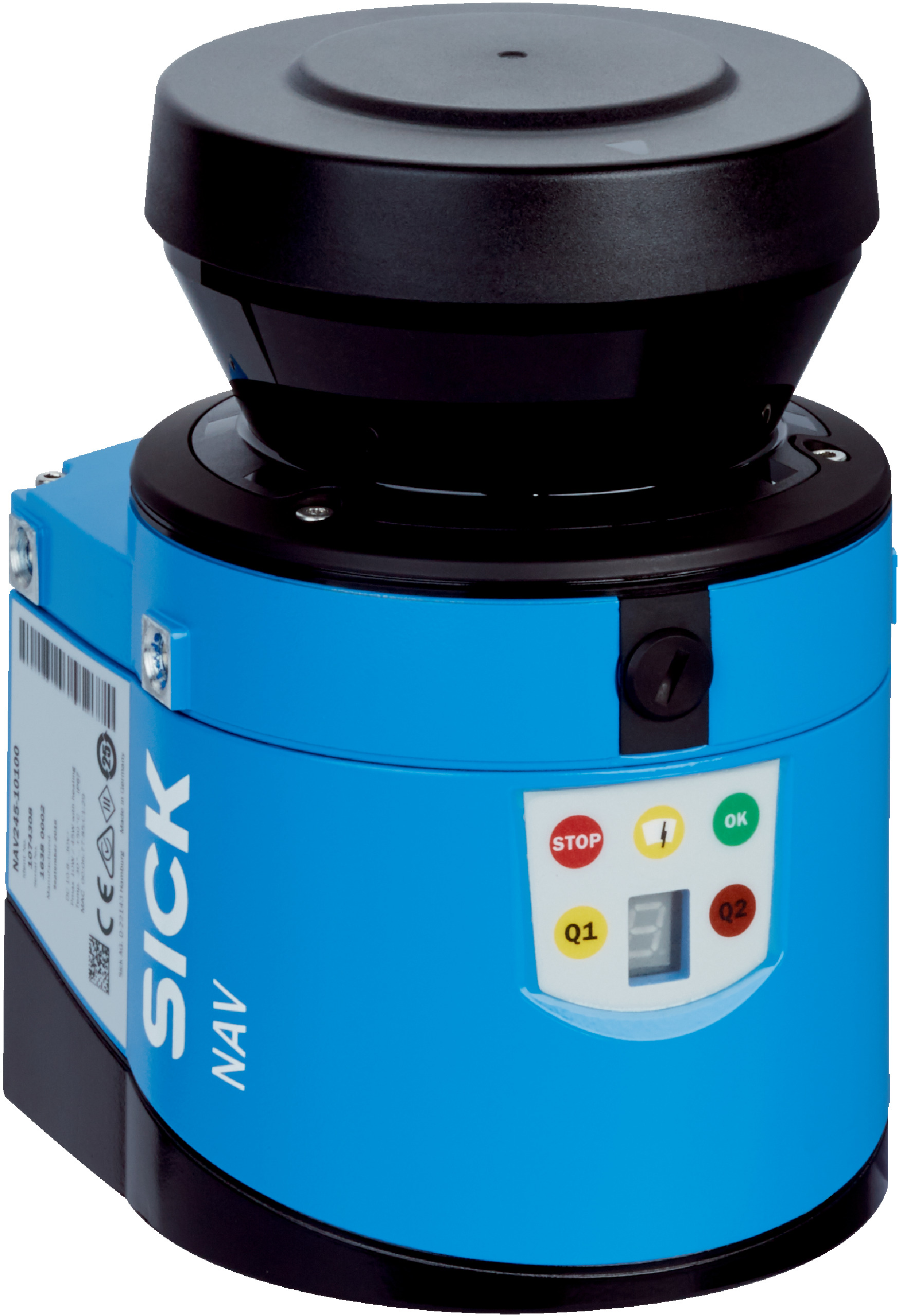

Indoor Laser Scanner NAV210-10100 | Laser Diode 905 nm | IP65 Rated | 270° Aperture Angle | by SICK
The Indoor Laser Scanner NAV210-10100 features a laser diode light source with a 905 nm wavelength, ensuring precise measurements for indoor applications. With a wide aperture angle of 270° and a high scanning frequency of ≥ 25 Hz, this sensor is perfect for industrial environments. Its robust aluminum housing and IP65 rating provide durability and reliability, making it an ideal choice for professionals seeking accurate laser scanning solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Laser diode (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° on raw/contour data
- Scanning frequency: ≥ 25 Hz
- Working range: 0.5 m to 50 m
- Scanning range: 18 m at 10% remission factor, 50 m at 90% remission factor
- Connection type: 2 x M12 male/female connectors
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529/A1 (2002-02))
- Protection class: III (EN 61140 (2002-03))
- MTBF: > 100 years
- Systematic error: Typical ± 30 mm (Contour)
- Statistical error: Typical 12 mm (Contour)
- Temperature drift: Typical 0.1 mm/K
- Interfaces: Ethernet (TCP/IP), Serial (RS-232)
- Data transmission rate: 10/100 MBit/s Ethernet, 9.6 kBaud to 115.2 kBaud Serial
- Operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Permissible relative humidity: ≤ 85%, Non-condensing
- Dimensions (H x L x W): 152mm x 125mm x 102mm
- Weight: 1.1 kg
Key Features
- Laser diode light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 and EN 60825-1:2014+A11:2021
- Wide aperture angle of 270° horizontal
- High scanning frequency of ≥ 25 Hz
- Angular resolution of 0.25° on raw and contour data
- Working range from 0.5 m to 50 m
- Scanning range up to 18 m at 10% remission factor and 50 m at 90% remission factor
- Robust aluminum die cast housing with IP65 enclosure rating
- Operating temperature range from –30 °C to +50 °C
- Multiple interfaces including Ethernet (TCP/IP) and Serial (RS-232)
- Low power consumption typical 8 W, heating typical 35 W
- High reliability with MTBF greater than 100 years
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Indoor use for precise laser scanning and measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NAV210-10100 Indoor Laser Diode Sensor is available for immediate purchase, ideal for precise indoor scanning and measurement applications.
