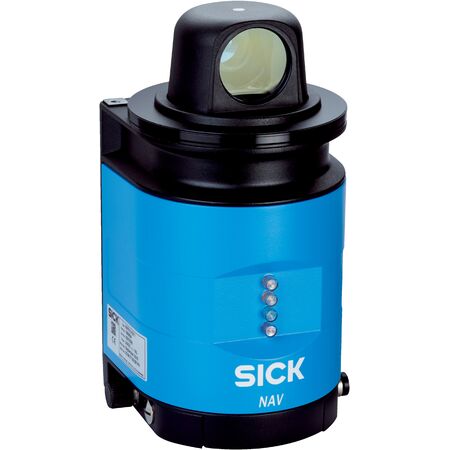

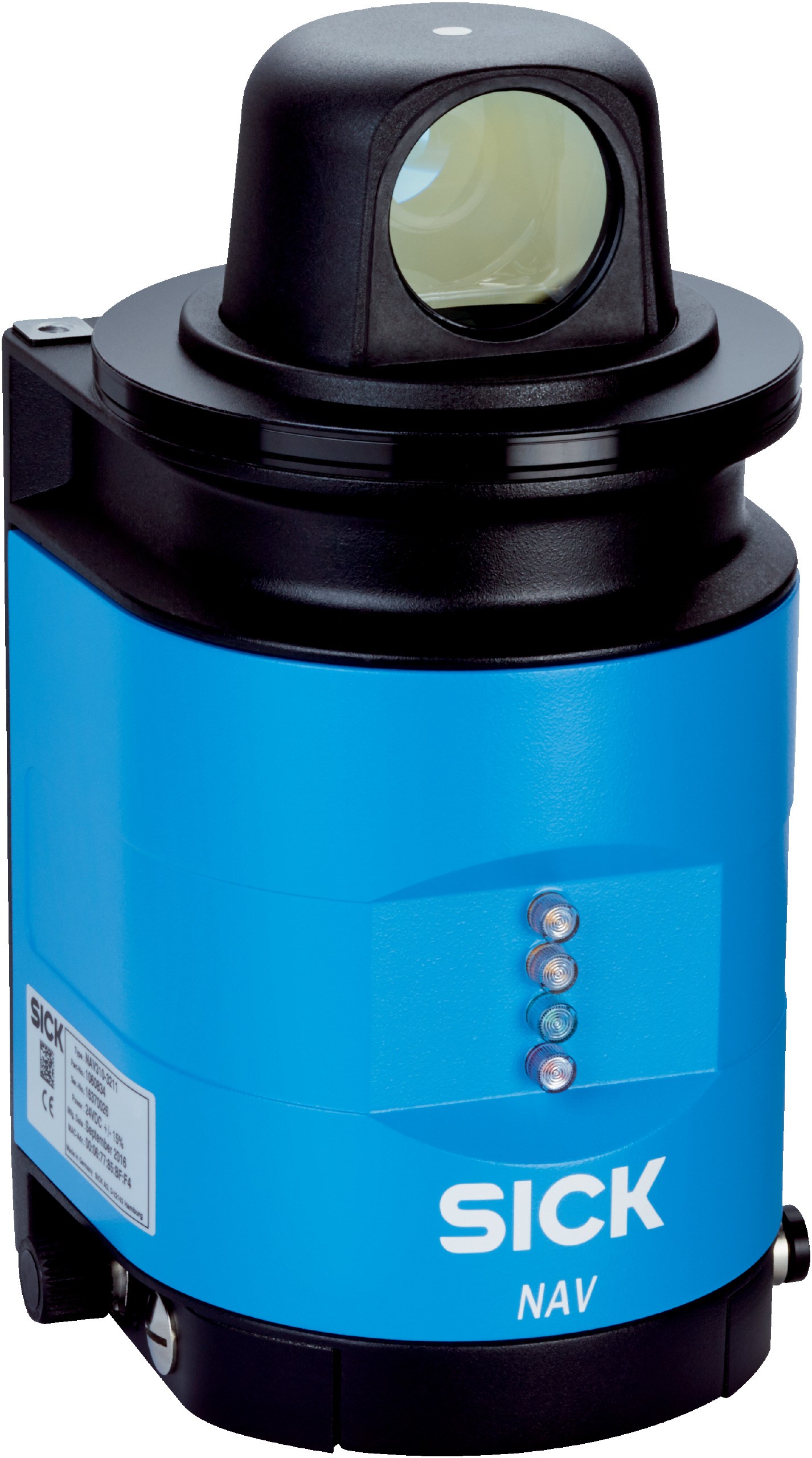

Indoor Laser Scanner NAV310-3211 | 360° Horizontal Aperture | 0.125° Resolution | IP65 Rated | by SICK
The Indoor Laser Scanner NAV310-3211 is designed for precise indoor object detection and scanning, featuring a 360° horizontal aperture and 0.125° angular resolution. With a robust aluminum housing and IP65 rating, it's perfect for industrial automation and safety monitoring, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source wavelength: 905 nm
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Horizontal aperture angle: 360°
- Angular resolution: 0.125° (interlaced 0.0625°)
- Scanning frequency: 5 Hz to 20 Hz
- Working range: 0.5 m to 250 m
- Scanning range at 10% remission factor: 35 m
- Scanning range at 90% remission factor: 120 m
- Connection type: 3 x M12 male/female connectors
- Supply voltage: 24 V DC ± 15%
- Power consumption: 36 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 2.4 kg
- MTBF: 86 years
- MTTFD: > 100 years
- Detectable object shape: Almost any
- Systematic error: ± 10 mm
- Statistical error: 15 mm
- Data transmission rate Ethernet: 100 Mbit/s
- Data transmission rate Serial: 19.2 kBaud to 115 kBaud
- Digital outputs: 1 (digital)
- Optical indicators: 4 LEDs (status displays)
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Permissible relative humidity: 85%, non-condensing
- Dimensions (H x L x W): 222mm x 115mm x 120.5mm
- Weight: 2.4 kg
Key Features
- 905 nm laser light source with Class 1 laser safety
- 360° horizontal aperture angle with 0.125° resolution
- Scanning frequency adjustable from 5 Hz to 20 Hz
- Working range from 0.5 m to 250 m
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including Ethernet TCP/IP and RS-232 serial
- Digital output and optical LED status indicators
- Wide ambient operating temperature range from 0 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Indoor object detection and scanning
- Industrial automation and safety monitoring
- Machine safety and process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NAV310-3211 Indoor Laser Sensor is available for immediate purchase, ideal for industrial indoor scanning and safety applications.
