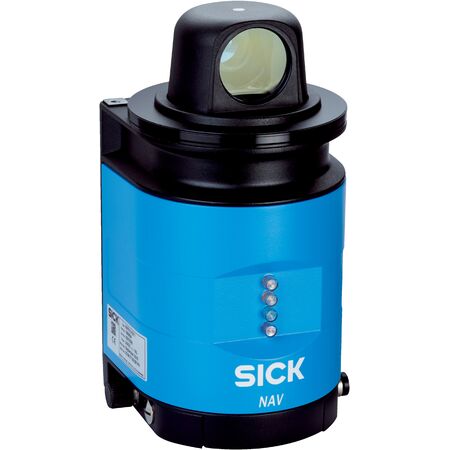

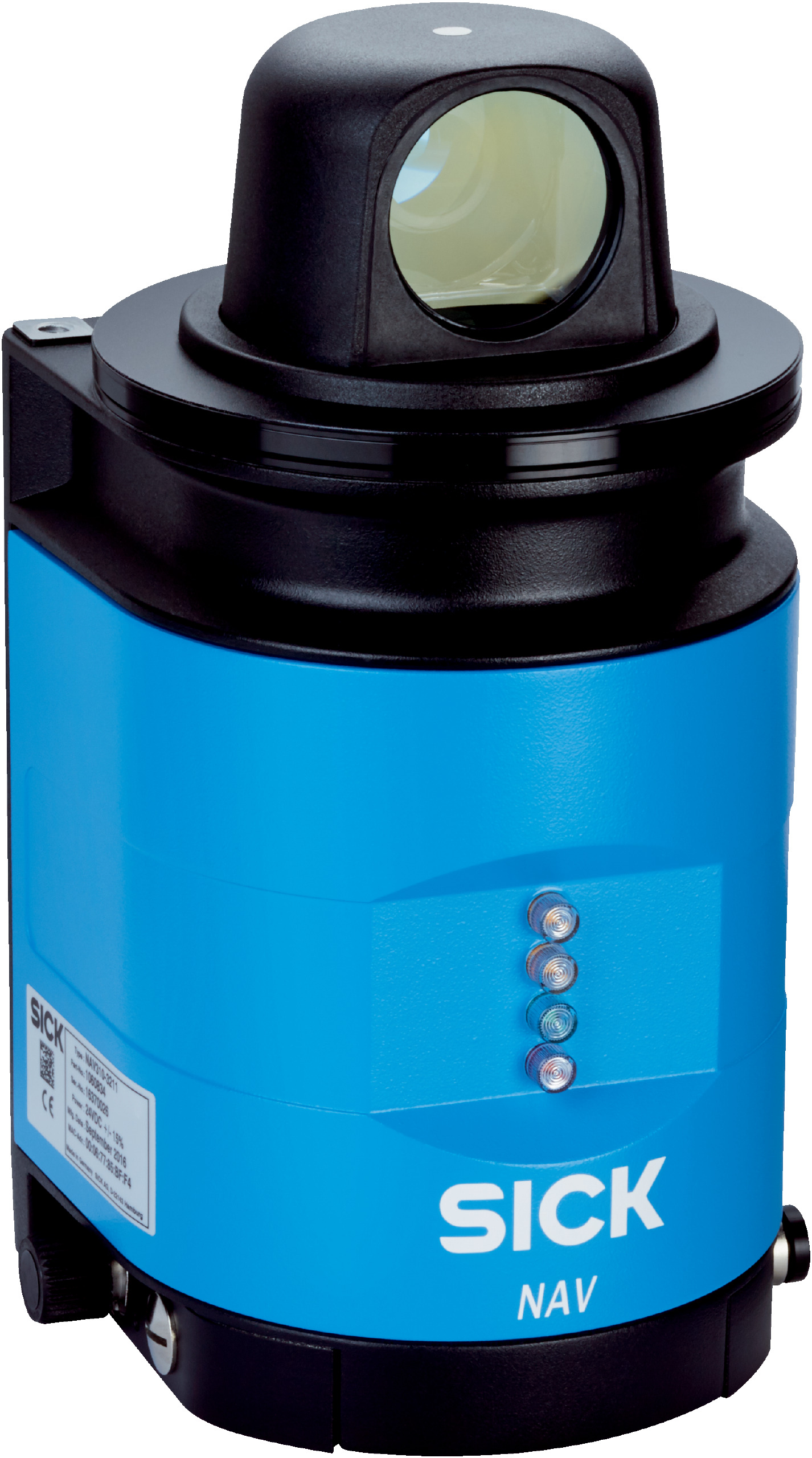

Indoor Laser Scanner NAV340-3232 | 360° Aperture Angle | 0.25° Angular Resolution | IP65 Rated | by SICK
The Indoor Laser Scanner NAV340-3232 is designed for precise indoor object detection and scanning, featuring a 360° horizontal aperture angle and 0.25° angular resolution. With a robust aluminum housing and IP65 rating, it's perfect for industrial automation and safety monitoring, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source wavelength: 905 nm
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 360°
- Angular resolution horizontal: 0.25°
- Scanning frequency: 8 Hz ± 5%
- Working range: 0.5 m to 250 m (0.5 m to 70 m on reflectors)
- Scanning range at 10% remission factor: 35 m
- Scanning range at 90% remission factor: 100 m
- Connection type: 3 x M12 male/female connectors
- Supply voltage: 24 V DC ± 15%
- Power consumption: 36 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- MTBF: 86 years
- MTTFD: > 100 years
- Detectable object shape: Almost any
- Systematic error: ± 10 mm (RDI), ± 15 mm (Contour)
- Statistical error: 15 mm (Contour)
- Data transmission rate Ethernet: 100 Mbit/s
- Data transmission rate Serial: 19.2 kBaud to 115 kBaud
- Digital outputs: 1 (digital)
- Optical indicators: 4 LEDs
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: –20 °C to +80 °C
- Permissible relative humidity: 85%, non-condensing
- Dimensions (H x L x W): 222mm x 115mm x 120mm
- Weight: 2.4 kg
Key Features
- 905 nm laser light source with laser class 1 safety
- 360° horizontal aperture angle with 0.25° angular resolution
- Working range from 0.5 m to 250 m, up to 70 m on reflectors
- Scanning frequency of 8 Hz ± 5%
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including Ethernet TCP/IP and RS-232 serial
- Digital output and 4 LED status indicators
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards.
Applications
- Indoor object detection and scanning
- Industrial automation and safety monitoring
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 36 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK NAV340-3232 Indoor Laser Sensor is available for immediate purchase, ideal for industrial indoor scanning and safety applications.
