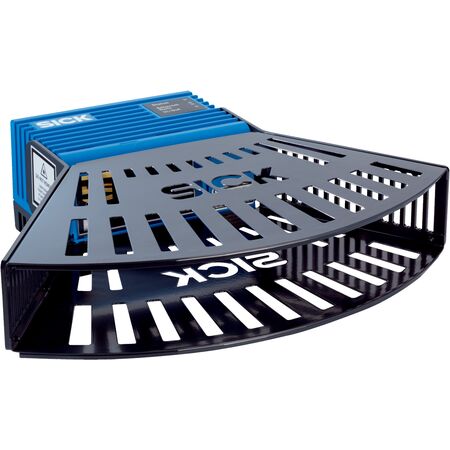

Indoor Laser Scanner Sensor LMS4121R-13000 | 600 Hz Scanning Frequency | IP65 Rated | by SICK
The Indoor Laser Scanner Sensor LMS4121R-13000 is designed for precise indoor scanning and measurement, featuring a high scanning frequency of 600 Hz and a robust IP65-rated aluminum housing. Ideal for industrial automation and safety monitoring, this sensor operates efficiently with low power consumption, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Application: Indoor
- Light source: Visible red light (660 nm)
- Laser class: 2 (IEC 60825-1:2014, EN 60825-1:2014)
- Aperture angle: 70° horizontal
- Angular resolution: 0.0833° horizontal
- Scanning frequency: 600 Hz
- Working range: 0.7 m to 3 m
- Scanning range at 2% remission: 3 m
- Supply voltage: 24 V DC, ± 25%
- Power consumption: ≤ 16 W (start-up max 29 W)
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: IEC 61010-1:2011
- Scan/frame rate: 504,600 measurement points per second
- Response time: ≥ 4.8 ms
- Systematic error: ± 1 mm
- Statistical error: 1.5 mm
- Ethernet: TCP/IP, UDP/IP, 100 Mbit/s to 1,000 Mbit/s
- Digital inputs: 2
- Digital outputs: 3
- Encoder inputs: 2 (phase A, phase B)
- Synchronization inputs/outputs: One (master/slave)
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- EMC: EN 61000-6-3:2007+A1:2011 / IEC 61000-6-3:2006+AMD1:2010
- Vibration resistance: EN 60068-2-6:2007
- Shock resistance: EN 60068-2-27:2008
- Dimensions (H x L x W): 107mm x 397mm x 370mm
- Weight: 3.7 kg
Key Features
- Visible red light source (660 nm) with laser class 2 compliance
- Wide horizontal aperture angle of 70°
- High scanning frequency of 600 Hz
- Angular resolution of 0.0833°
- Working range from 0.7 m to 3 m
- Robust aluminum die cast housing with IP65 rating
- Multiple connection options including Ethernet and M12 plugs
- High measurement point rate of 504,600 points per second
- Integrated filters for enhanced measurement accuracy
- LED optical indicators for status display
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Indoor environment scanning and measurement
- Object detection and distance measurement
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (≤16 W)
- Durable housing reduces need for frequent replacements
- Supports precise measurement reducing waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS4121R-13000 Indoor Laser Scanner Sensor is available for immediate purchase, ideal for industrial indoor scanning and measurement applications.
