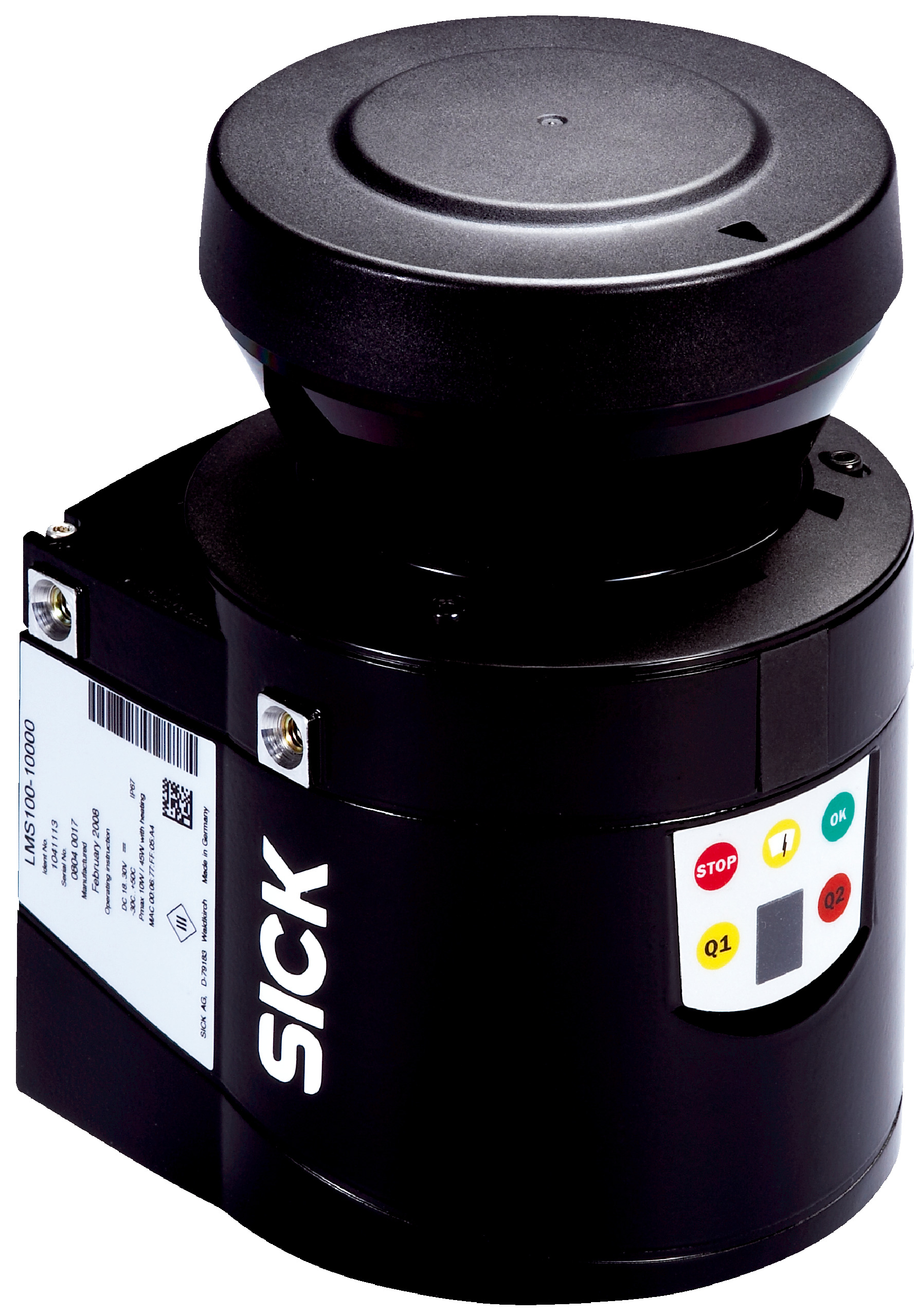

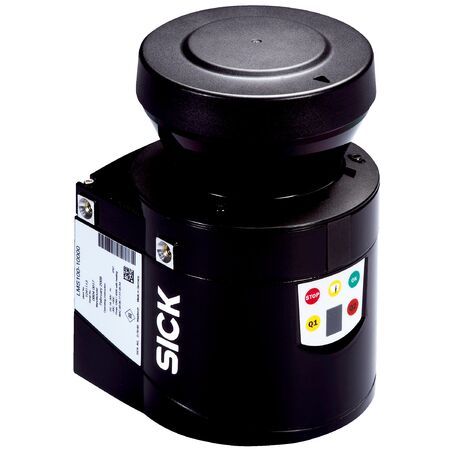

Indoor Laser Scanner SICK LMS102-10000 | Infrared Light Source | IP65 Rated | 270° Aperture Angle | by SICK
The Indoor Laser Scanner SICK LMS102-10000 features an infrared light source with a 905 nm wavelength and a wide horizontal aperture angle of 270°. With high scanning frequency options of 25 Hz and 50 Hz, it's perfect for indoor environment scanning and industrial automation. Built for reliability, this scanner is IP65 rated for dust and water protection, making it ideal for various applications in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Laser Scanner SICK LMS102-10000 | Infrared Light Source | IP65 Rated | 270° Aperture Angle | by SICK
Brand: SICK
SKU: 1048235
Alternatively Known As: Indoor Laser Scanner, Infrared Laser Scanner, SICK LMS102, Industrial Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° or 0.5° selectable
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Heating: No
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: 22 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Object remission: 3% to >1000% (reflectors)
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270°
- High scanning frequency options of 25 Hz and 50 Hz
- Angular resolution selectable between 0.25° and 0.5°
- Working range from 0.5 m up to 20 m
- Fog correction capability for enhanced performance in adverse conditions
- IP65 rated enclosure for dust and water protection
- Multiple interface options including Ethernet TCP/IP, RS-232 serial, and CAN
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Indoor environment scanning and object detection
- Industrial automation and safety monitoring
- Field evaluation and spatial measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 22 W reduces energy usage
- Durable IP65 housing extends product life and reduces waste
- Fog correction improves reliability, reducing need for replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LMS102-10000 Indoor Infrared Laser Scanner is available for immediate purchase, ideal for industrial indoor scanning and safety applications.
