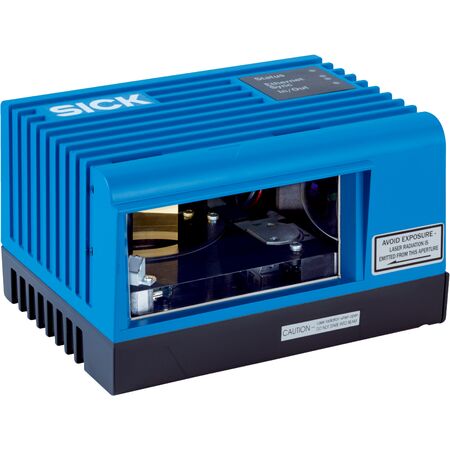

Indoor Laser Scanner SICK LMS4111R-13000 | 600 Hz Scanning Frequency | IP65 Rated | by SICK
The Indoor Laser Scanner SICK LMS4111R-13000 is designed for precise indoor scanning and measurement applications. With a high scanning frequency of 600 Hz and a robust IP65-rated aluminum housing, it ensures reliable performance in industrial automation and safety monitoring. Ideal for object detection and distance measurement, this laser scanner operates efficiently within a working range of 0.7 m to 3 m, making it a perfect choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Visible red light (660 nm)
- Laser class: 2 (IEC 60825-1:2014, EN 60825-1:2014)
- Aperture angle: 70° horizontal
- Angular resolution: 0.0833° horizontal
- Scanning frequency: 600 Hz
- Working range: 0.7 m to 3 m
- Scanning range at 2% remission: 2.3 m
- Scanning range at 3.5% remission: 3 m
- Scanning range at 10% remission: 3 m
- Connection types: M12 5-pin plug, M12 8-pin female connector (Ethernet), M12 5-pin female connector (Encoder + I/O)
- Supply voltage: 24 V DC ± 25%
- Power consumption: ≤16 W (max 29 W at startup)
- Output current: ≤100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: IEC 61010-1:2011
- Scan/frame rate: 504,600 measurement points per second
- Response time: ≥4.8 ms
- Systematic error: ±1.5 mm
- Statistical error: 2.5 mm
- Data transmission rate: 100 Mbit/s to 1,000 Mbit/s, half/full-duplex
- Digital inputs: 2
- Digital outputs: 3
- Encoder inputs: 2 (phase A, phase B)
- Synchronization inputs/outputs: One (master/slave)
- Operating temperature: -10°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: ≤90%, non-condensing
- Ambient light immunity: 2,000 lx
- Dimensions (H x L x W): 107mm x 192mm x 130mm
- Weight: 2.4 kg
Key Features
- Visible red light source (660 nm) with laser class 2 compliance
- Wide horizontal aperture angle of 70°
- High scanning frequency of 600 Hz
- Angular resolution of 0.0833°
- Working range from 0.7 m to 3 m
- Robust aluminum die cast housing with IP65 rating
- Multiple connection options including Ethernet and M12 plugs
- High measurement point rate of 504,600 points per second
- Integrated filters for enhanced measurement accuracy
- Operating temperature range from -10°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure proper setup and compliance.
Applications
- Indoor scanning and measurement applications
- Object detection and distance measurement
- Industrial automation and safety monitoring
Standards & Compliance
- Complies with AS/NZS 61010.1 for electrical safety (IEC 61010-1:2011)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤16 W)
- Durable construction reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK LMS4111R-13000 Indoor Laser Scanner Sensor is available for immediate purchase, ideal for industrial indoor scanning and measurement applications.
