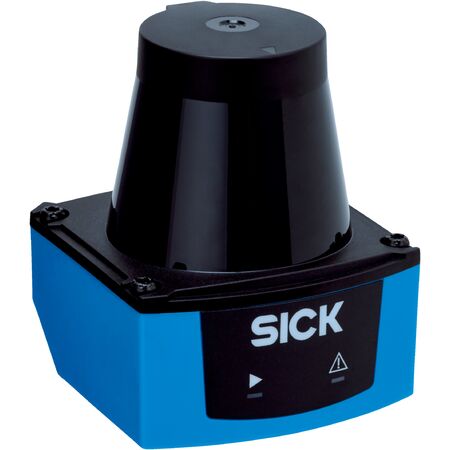

Indoor Laser Scanner TiM240-2050300 | HDDM+ Measurement | IP65 Rated | 240° Aperture Angle | by SICK
The Indoor Laser Scanner TiM240-2050300 utilizes HDDM+ measurement technology and an infrared light source for precise object detection and measurement. With a 240° horizontal aperture angle and IP65 rating, it's perfect for indoor industrial automation and safety systems, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 240°
- Angular resolution horizontal: 1°
- Scanning frequency: 14.5 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 2.8 m to 3 m depending on angle
- Connection type: 1 x Ethernet (4-pin M12 female), 1 x Power (5-pin M12 male)
- Supply voltage: 10 V DC to 28 V DC
- Power consumption: Typical 2.9 W
- Output current: ≤ 100 mA
- Enclosure rating: IP65
- Protection class: III
- Response time: Typical 70 ms
- Detectable object shape: Almost any
- Systematic error: ± 40 mm
- Statistical error: 30 mm
- Digital outputs: 1 (Push-pull, 'Device Ready')
- Optical indicators: 2 LEDs ('device ready')
- Object remission: 4% to 1000% (reflectors)
- Electromagnetic compatibility: IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005
- Vibration resistance: Sine resonance scan 10 Hz to 1000 Hz, Sine test 10 Hz to 500 Hz, 5 g, 10 frequency cycles, Noise test 5 Hz to 250 Hz, 4.24 g RMS, 5 h
- Shock resistance: 25 g, 6 ms, ± 1000 continuous shocks/axis; 50 g, 3 ms, ± 5000 continuous shocks/axis; 50 g, 3 ms, ± 3 single shocks/axis
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 30,000 lx
- Dimensions (H x L x W): 75.8mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Measurement principle: HDDM+
- Infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 240° horizontal aperture angle with 1° angular resolution
- Scanning frequency of 14.5 Hz
- Working range from 0.05 m to 10 m
- IP65 rated enclosure for dust and water protection
- Light blue housing (RAL 5012)
- Low power consumption (typ. 2.9 W)
- Ethernet and power M12 connectors
- High vibration and shock resistance
- Ambient operating temperature from -10°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Indoor environment monitoring
- Object detection and measurement
- Industrial automation and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TiM240-2050300 Indoor Infrared Laser Scanner is available for immediate purchase, ideal for indoor industrial automation and safety applications.
