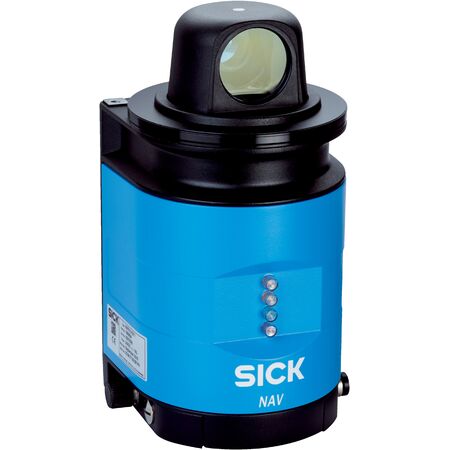

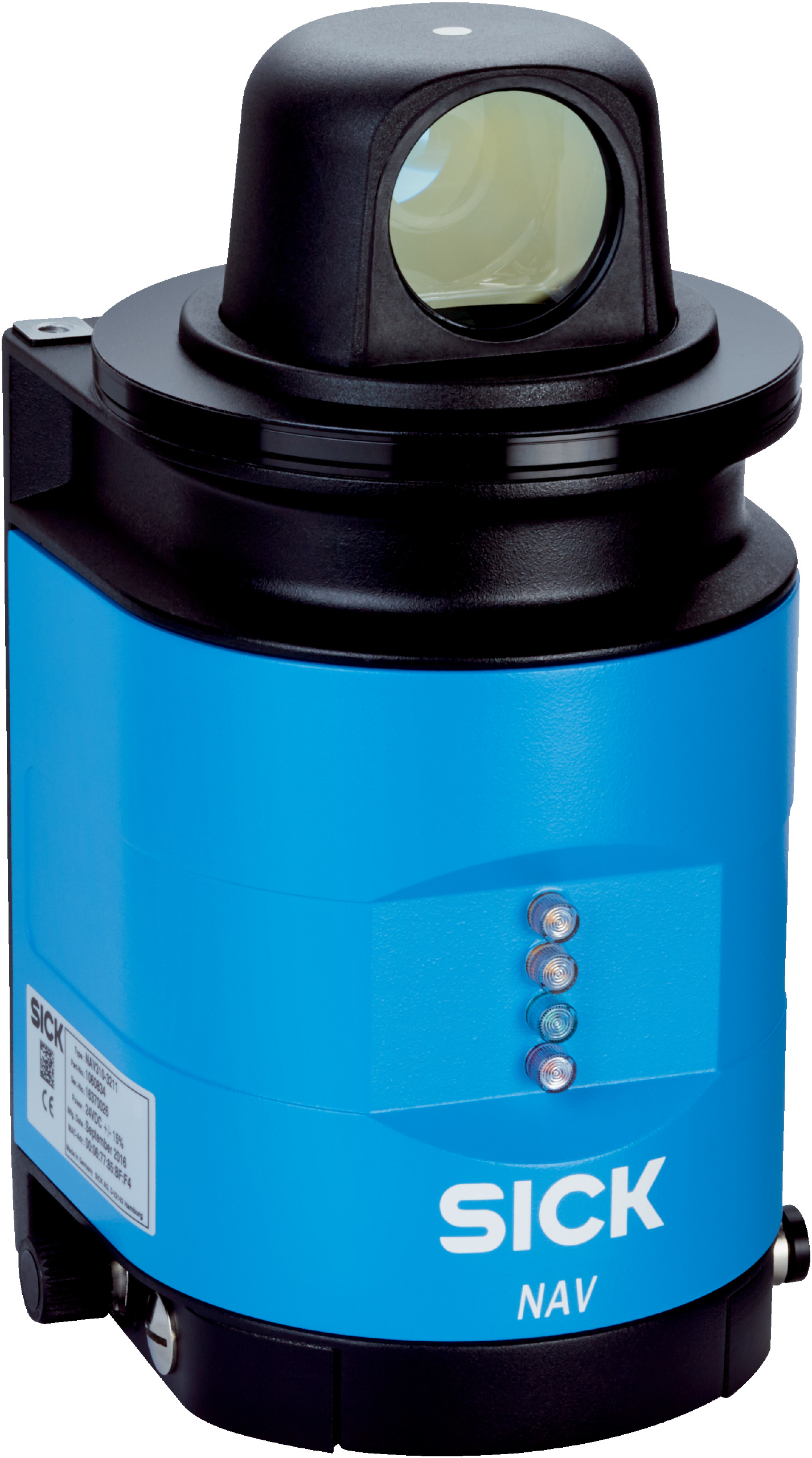

Indoor Navigation Laser Sensor NAV350-3232 | 905 nm Laser | 360° Aperture Angle | IP65 Rated | by SICK
The Indoor Navigation Laser Sensor NAV350-3232 is designed for precise indoor navigation and positioning, featuring a 905 nm laser light source and a 360° horizontal aperture angle. With a robust aluminum die cast housing and an IP65 rating, this sensor is perfect for industrial automation and robotics, ensuring high positioning accuracy of ±4 mm and a working range of up to 250 m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Navigation Laser Sensor NAV350-3232 | 905 nm Laser | 360° Aperture Angle | IP65 Rated | by SICK
Brand: SICK
SKU: 1052928
Alternatively Known As: Indoor navigation laser sensor, SICK NAV350 laser scanner, 3D navigation sensor, industrial positioning sensor
Technical Specifications
- Light source: 905 nm laser
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 360°
- Angular resolution horizontal: 0.25°
- Scanning frequency: 8 Hz ± 5%
- Working range: 0.5 m to 250 m (0.5 m to 70 m on reflectors)
- Scanning range at 10% remission factor: 35 m
- Scanning range at 90% remission factor: 100 m
- Connection type: 3 x M12 male/female connectors
- Supply voltage: 24 V DC ± 15%
- Power consumption: 36 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Positioning accuracy: ±4 mm
- Reflector memory: 12,000
- Data transmission rate Ethernet: 100 Mbit/s
- Data transmission rate Serial: 19.2 kBaud to 115 kBaud
- Digital outputs: 1 (digital)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Relative humidity: 85%, non-condensing
- Dimensions (H x L x W): 222mm x 115mm x 120.5mm
- Weight: 2.4 kg
Key Features
- 905 nm laser light source with Laser Class 1 safety
- 360° horizontal aperture angle with 0.25° angular resolution
- Working range from 0.5 m up to 250 m (70 m on reflectors)
- Scanning frequency of 8 Hz ± 5%
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including Ethernet (TCP/IP) and RS-232 serial
- Digital output with 4 LED status indicators
- High positioning accuracy of ±4 mm
- Reflector memory capacity of 12,000
- Long MTBF of 86 years and MTTFD > 100 years
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Indoor navigation and positioning
- Industrial automation and robotics
- Object detection and mapping
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable IP65 rated housing ensures long product life and reduces waste
- Non-hazardous laser class 1 compliant with IEC safety standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NAV350-3232 Indoor Navigation Sensor is available for immediate purchase, ideal for indoor industrial navigation and automation applications.
