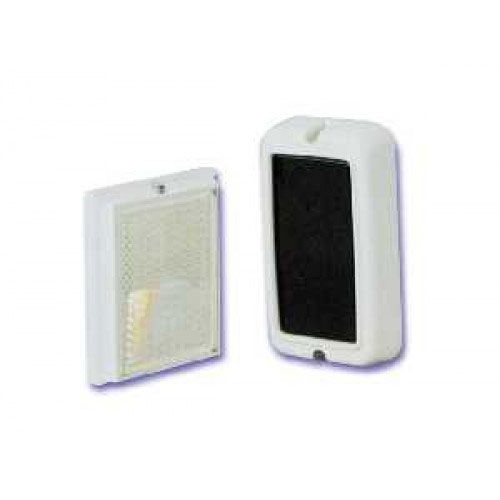

Indoor Retro-Reflective Beam Sensor 5m Hardwired Ness
Ness indoor retro-reflective beam sensor features a 5m range in a compact, energy-efficient design. Ideal for indoor alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Takex PR-5B Photoelectric Beam Sensor, Indoor Reflective Beam, 5 m PE Beam
Technical Specifications
- Model: Takex PR-5B
- Detection System: Near-infrared reflection type
- Protection Distance: Up to 5 m
- Supply Voltage: 10.5–26 V DC, non-polarity
- Current Consumption: 37 mA maximum at 12 V DC
- Alarm Output: Dry-contact Form C relay, N.O./N.C./COM
- Relay Contact Rating: 30 V AC/DC, 0.5 A maximum
- Response Time: 50 ms or greater
- Reset Time: Detection time plus approximately 1 second delay
- Ambient Temperature: -20°C to +50°C
- Mounting Position: Indoor wall or pillar mounting
- Housing Material: Off-white resin
- Included Components: Sensor unit, reflector, mounting screws and adhesive sheet
- Dimensions (H x L x W): 106mm x 23.5mm x 62mm
- Weight: 0.14 kg
Key Features
- 5 m indoor detection range
- Retro-reflective design requires wiring to only one end
- Compact, unobtrusive sensor housing
- Near-infrared beam-break detection
- Dry-contact relay output for connection to alarm control panels
- Suitable for entrances, exits, corridors and stairways
- Snap-on terminal cover for simplified wiring
- Indoor-only installation
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or alarm installer. Connect the low-voltage DC supply and alarm circuit in accordance with the manufacturer's instructions and applicable AS/NZS 2201 requirements.
Applications
- Indoor intruder alarm systems
- Doorway and entrance protection
- Exit and passageway monitoring
- Corridor and stairway beam-break detection
- Commercial and residential security installations
Standards & Compliance
- AS/NZS 2201.1:2007 — relevant to the design, installation, commissioning and maintenance of intruder alarm systems
- AS 2201.3:1991 — relevant to detection devices for internal use
Environmental Benefits
- Low-voltage DC operation supports efficient energy use in alarm systems
- Compact construction reduces material and installation requirements
- Durable resin housing can support a long service life and reduce replacement waste
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness Corporation warranty terms.
Available Now
Available through Ness Corporation and authorised Australian security-system distributors.
