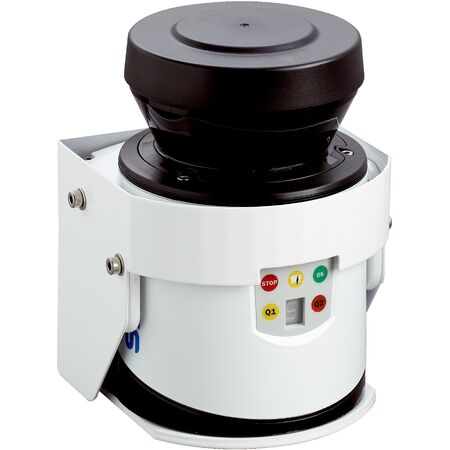

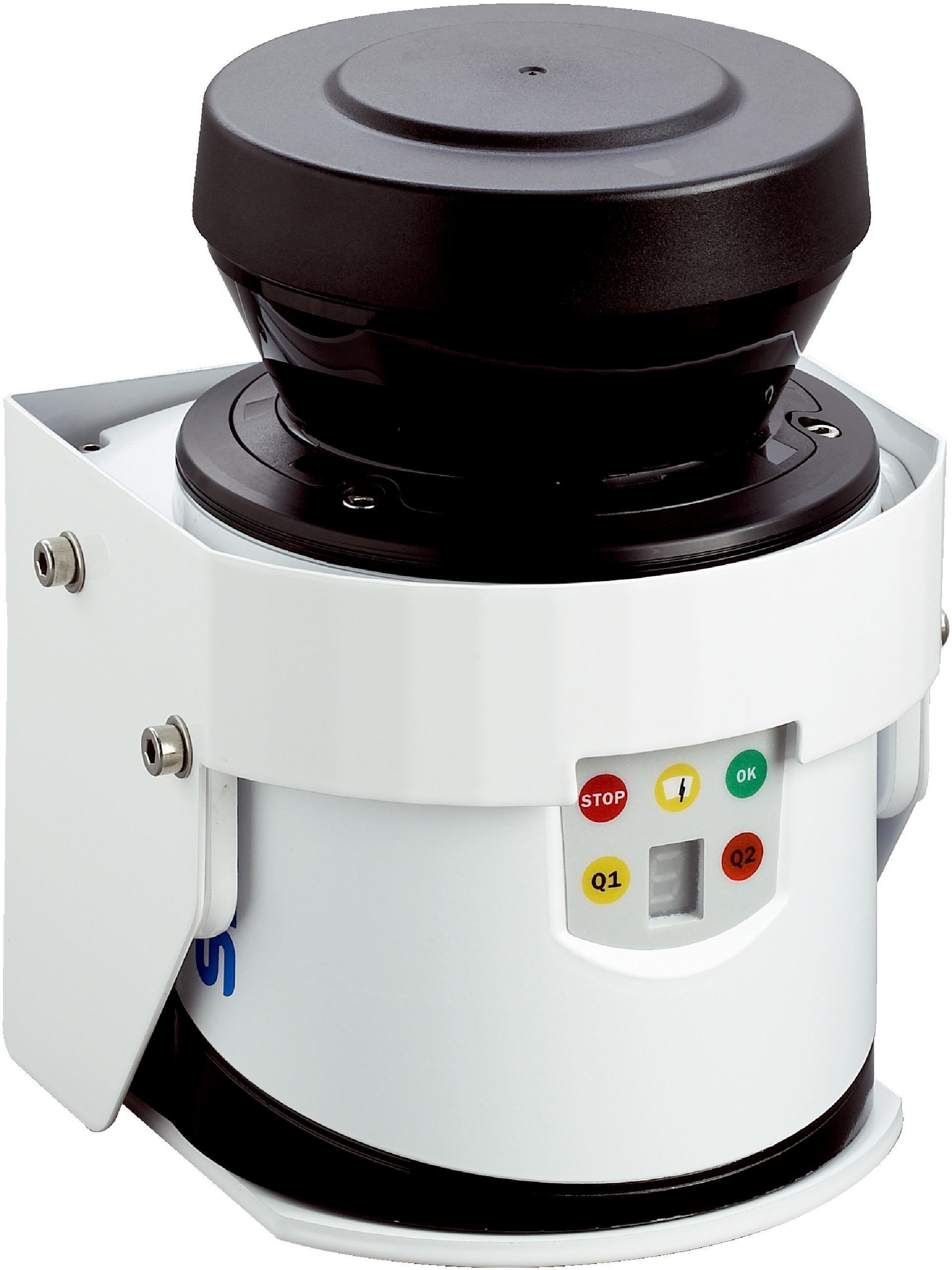

Indoor Security Infrared Sensor | VdS Certified | 270° Aperture Angle | IP65 Rated | by SICK
The Indoor Security Infrared Sensor is designed for precise detection in security applications, featuring a 270° horizontal aperture angle and VdS certification. With a robust IP65 enclosure, it ensures reliable performance in various environments, making it ideal for indoor security monitoring and detection. Its low power consumption and multiple interfaces enhance its usability for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Security Infrared Sensor | VdS Certified | 270° Aperture Angle | IP65 Rated | by SICK
Brand: SICK
SKU: 1051314
Alternatively Known As: Indoor Security Infrared Sensor, VdS Certified Security Sensor, SICK LMC121 Laser Sensor
Technical Specifications
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) for precise detection
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270°
- High scanning frequency of 50 Hz
- Working range from 0.5 m to 20 m with scanning range up to 18 m at 10% remission factor
- Two evaluated echoes for enhanced detection
- Robust IP65 rated enclosure for protection against dust and water
- Low power consumption typically 8 W, max 20 W
- Multiple interfaces including Ethernet (TCP/IP), Serial (RS-232), and CAN
- Digital inputs and outputs with relay and digital options
- Optical indicators with 7-segment display and LEDs for device status and warnings
- High electromagnetic compatibility and vibration/shock resistance
- Operating temperature range from 0 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with security sensor systems to ensure compliance and optimal performance.
Applications
- Indoor security applications
- Security monitoring and detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK LMC121-11001 VdS Indoor Security Infrared Sensor is available for immediate purchase, ideal for indoor security and monitoring applications.
