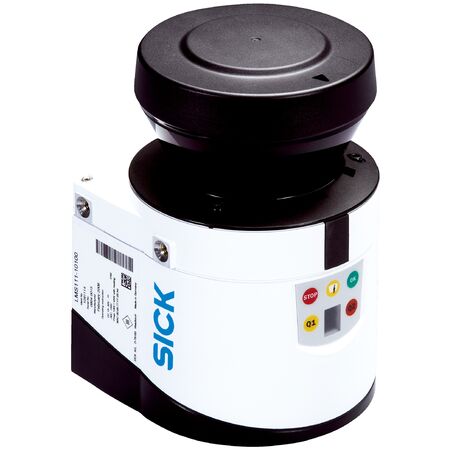

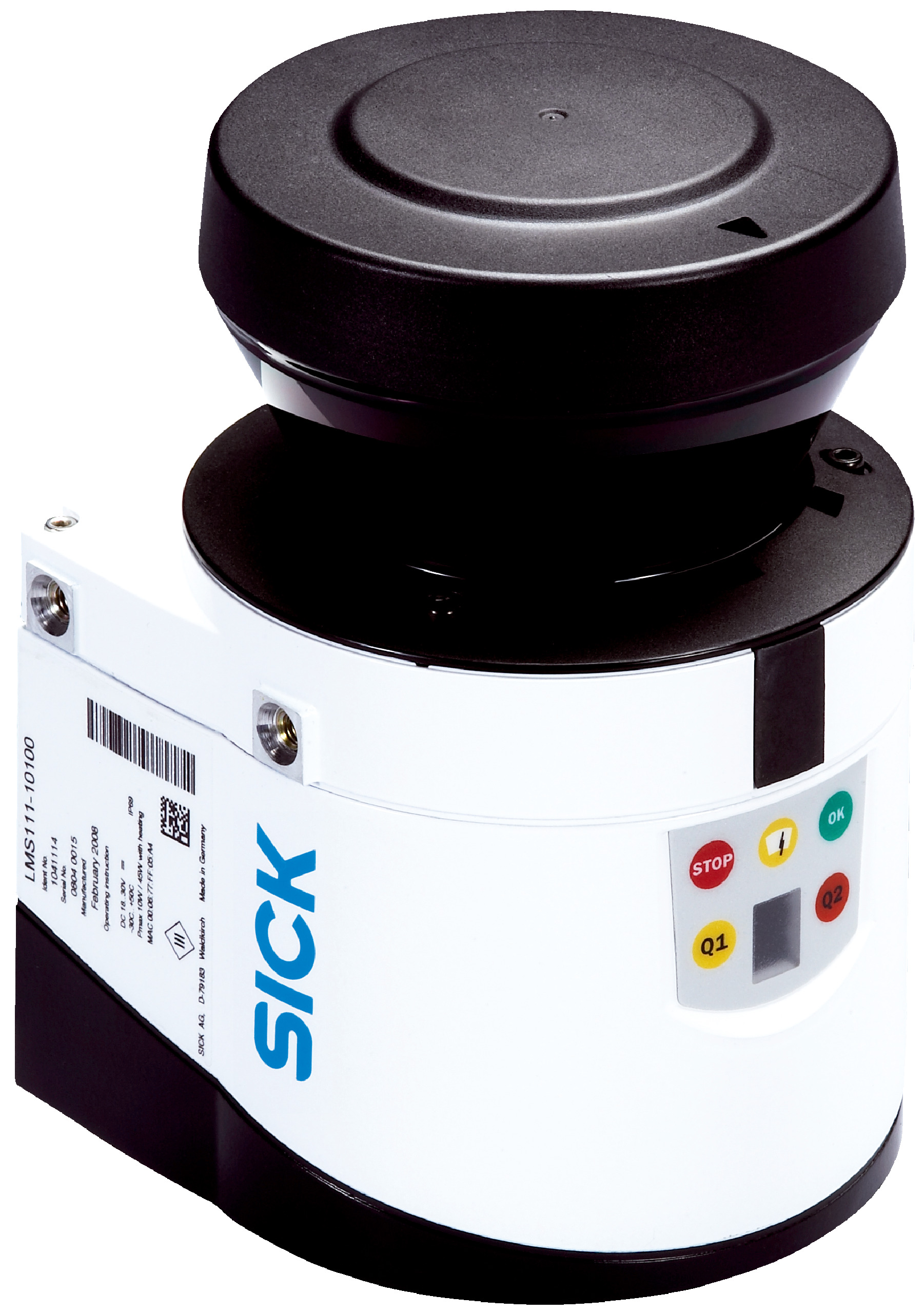

Indoor Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP65 Rated | by SICK
The Indoor Security Laser Scanner is designed for reliable perimeter and area monitoring, featuring an infrared light source and a wide 270° horizontal aperture angle. With scanning frequencies of 25 Hz or 50 Hz and fog correction capabilities, it ensures accurate detection in various conditions. Ideal for industrial safety and automation, this scanner is built for professionals seeking high performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP65 Rated | by SICK
Brand: SICK
SKU: 1044321
Alternatively Known As: Indoor Security Laser Scanner, Infrared Laser Scanner, SICK LMS123 Security Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission: 18 m
- Scanning range at 90% remission: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typically 8 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Ethernet: TCP/IP 10/100 MBit/s
- Serial: RS-232 9.6 kBaud to 115.2 kBaud
- CAN interface available
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 20 m
- Fog correction capability for reliable detection in adverse conditions
- IP65 rated enclosure for dust and water protection
- Multiple interface options including Ethernet TCP/IP, RS-232 serial, and CAN
- Digital inputs and outputs with relay and digital output options
- 7-segment display with LEDs for device status and warnings
- High electromagnetic compatibility and vibration/shock resistance
- Long mean time between failures (MTBF) greater than 100 years
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards and optimal device performance.
Applications
- Security: Indoor perimeter and area monitoring
- Industrial safety and automation
- Obstacle detection and avoidance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption at approximately 8 W reduces energy usage
- Durable IP65 housing extends product life and reduces waste
- Long MTBF minimizes replacement frequency and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS123-10000 Security Indoor Infrared Laser Scanner is available for immediate purchase, ideal for indoor security and industrial safety applications.
