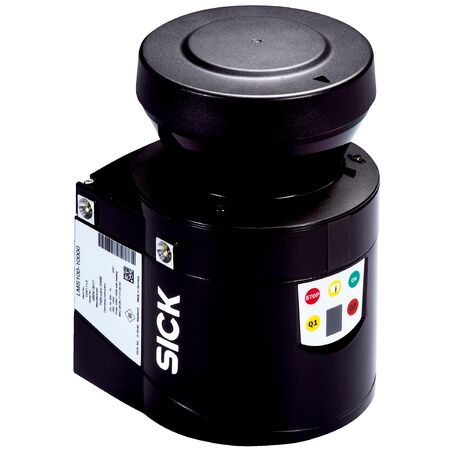

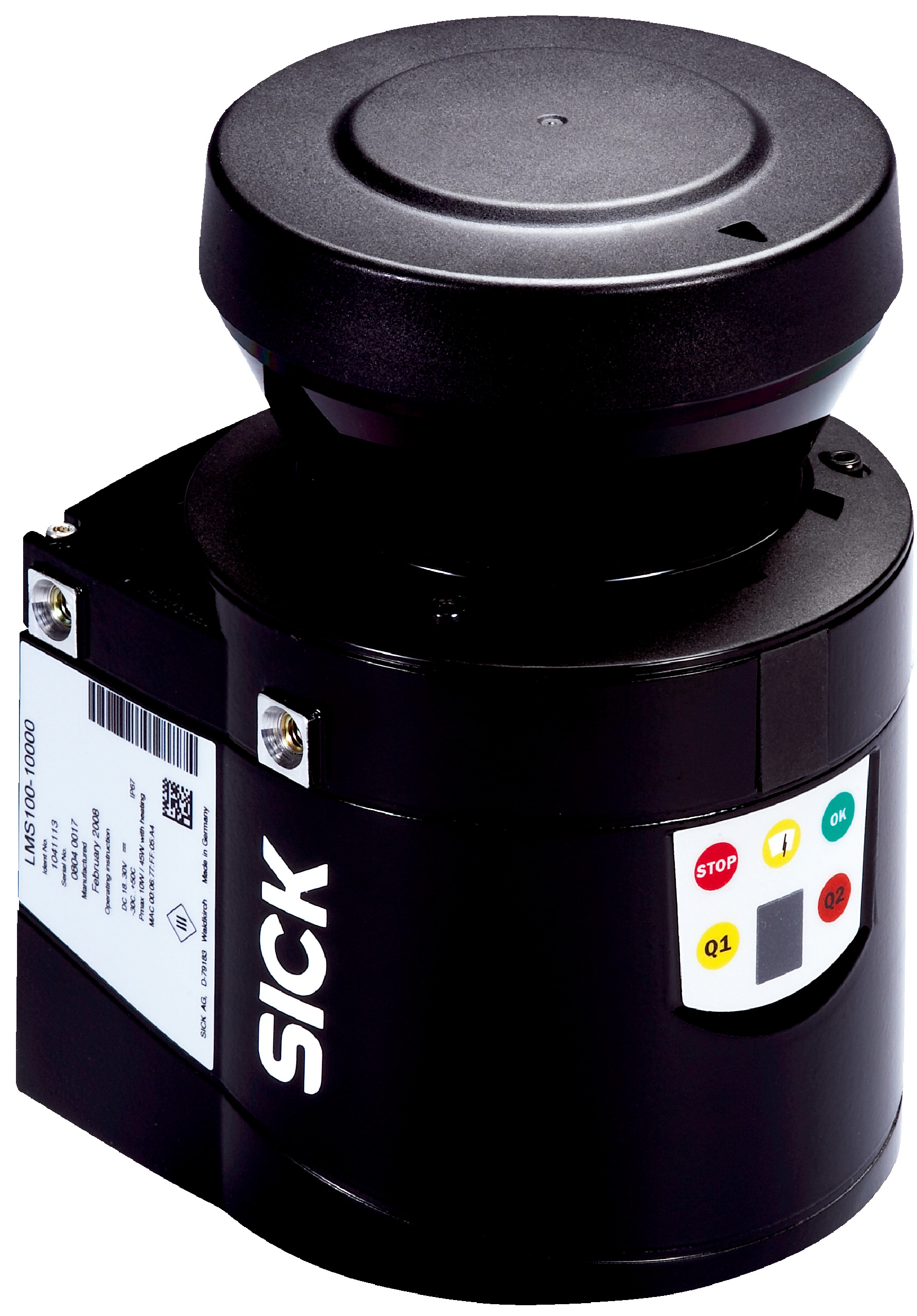

Indoor Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP65 Rated | by SICK
The Indoor Security Laser Scanner is designed for precise indoor security monitoring and perimeter protection. Featuring an infrared light source with a 270° aperture angle and high scanning frequency options of 25 Hz and 50 Hz, it ensures reliable operation in various conditions. Ideal for industrial automation and safety monitoring, this scanner offers robust performance with fog correction and multiple interface options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP65 Rated | by SICK
Brand: SICK
SKU: 1044322
Alternatively Known As: Indoor Security Laser Scanner, Infrared Laser Scanner, SICK LMS122 Security Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Scanning frequency: 25 Hz or 50 Hz
- Angular resolution: 0.25° or 0.5°
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typically 8 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Interfaces: Ethernet (TCP/IP), Serial (RS-232), CAN
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Optical indicators: 7-segment display plus 5 LEDs
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 and EN 60825-1:2014+A11:2021
- Wide horizontal aperture angle of 270°
- High scanning frequency options: 25 Hz and 50 Hz
- Angular resolution selectable between 0.25° and 0.5°
- Working range from 0.5 m up to 20 m
- Fog correction capability for reliable operation in adverse conditions
- IP65 rated enclosure for dust and water protection
- Multiple interface options including Ethernet (TCP/IP), RS-232 serial, and CAN
- Digital inputs and outputs with relay and digital output options
- 7-segment display with LEDs for device status and warnings
- Robust mechanical design with vibration and shock resistance
- Mean time between failures (MTBF) greater than 100 years
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Security: Indoor security monitoring and perimeter protection
- Industrial automation requiring precise object detection
- Safety monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption at approximately 8 W reduces energy usage
- Long operational life reduces waste and replacement frequency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS122-10000 Security Indoor Infrared Laser Scanner is available for immediate purchase, ideal for indoor security and industrial automation applications.
