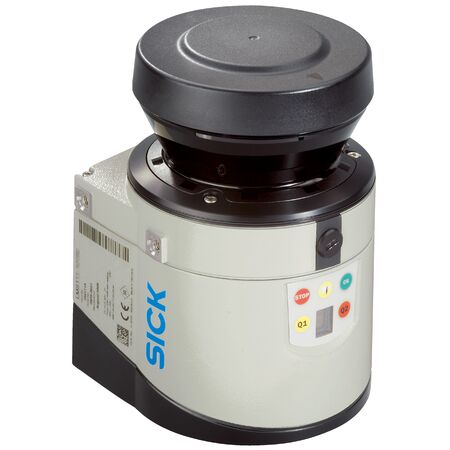

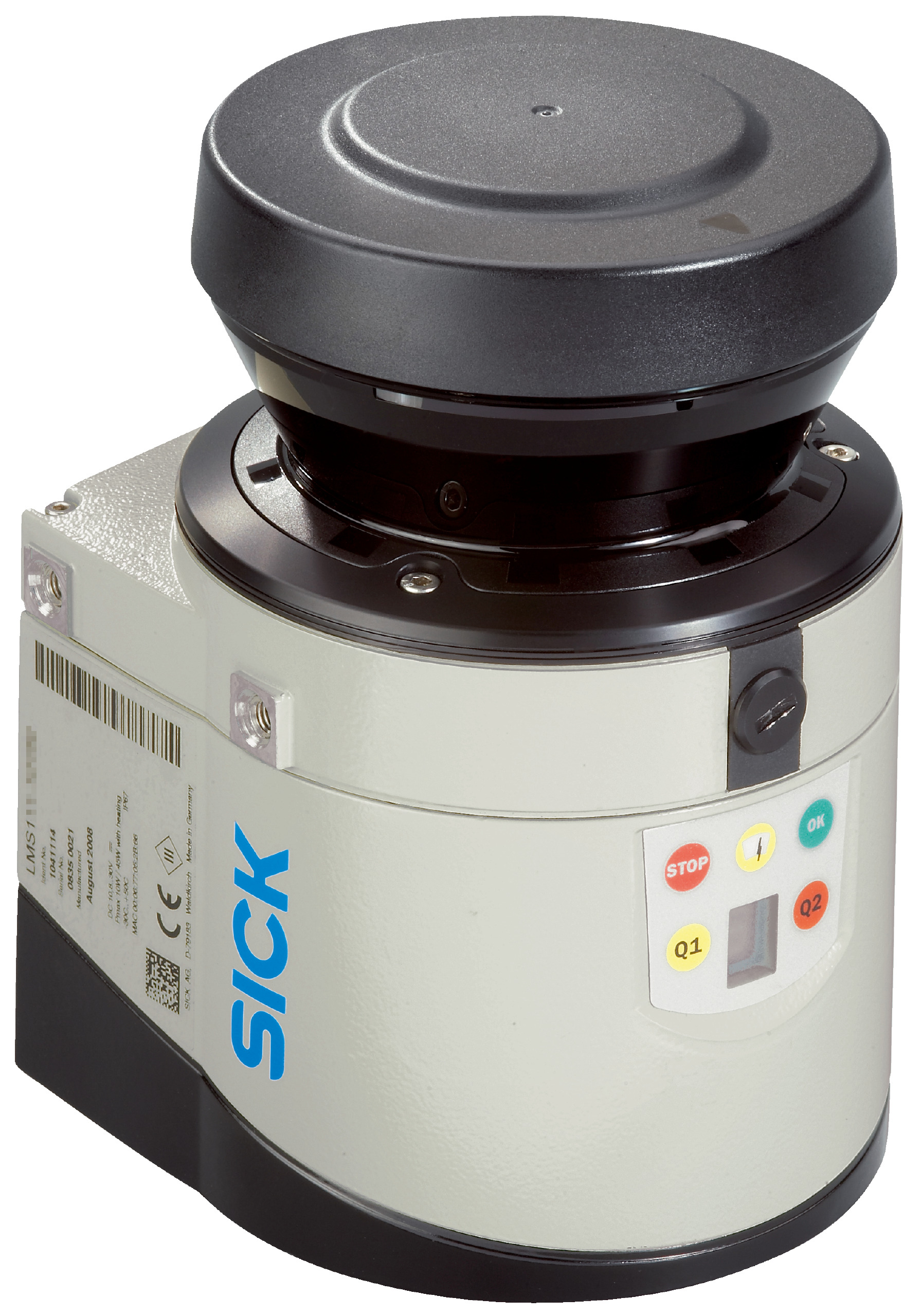

Indoor Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP65 Rated | by SICK
The Indoor Security Laser Scanner is designed for reliable perimeter and area monitoring, featuring an infrared light source and a wide 270° aperture angle. With scanning frequencies of 25 Hz and 50 Hz, it ensures accurate detection in various conditions, making it ideal for industrial automation and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP65 Rated | by SICK
Brand: SICK
SKU: 1051384
Alternatively Known As: Indoor Security Laser Scanner, Infrared Laser Scanner, SICK LMS121 Security Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz, 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Interfaces: Ethernet (TCP/IP), Serial (RS-232), CAN
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Optical indicators: 7-segment display plus 5 LEDs
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 20 m
- Fog correction capability for reliable detection in adverse conditions
- IP65 rated enclosure for dust and water protection
- Multiple interfaces including Ethernet (TCP/IP), RS-232, and CAN
- Digital inputs and outputs with relay and digital options
- 7-segment display with LEDs for device status and warnings
- High electromagnetic compatibility and vibration/shock resistance
- Operating temperature range from 0 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Security: Indoor perimeter and area monitoring
- Industrial automation: Object detection and safety
- Access control and intrusion detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption (typical 8 W) reduces energy usage
- Durable IP65 housing extends product life and reduces waste
- Reliable fog correction minimizes false alarms and unnecessary interventions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LMS121-10000 Security Indoor Infrared Laser Scanner is available for immediate purchase, ideal for indoor security and industrial safety applications.
