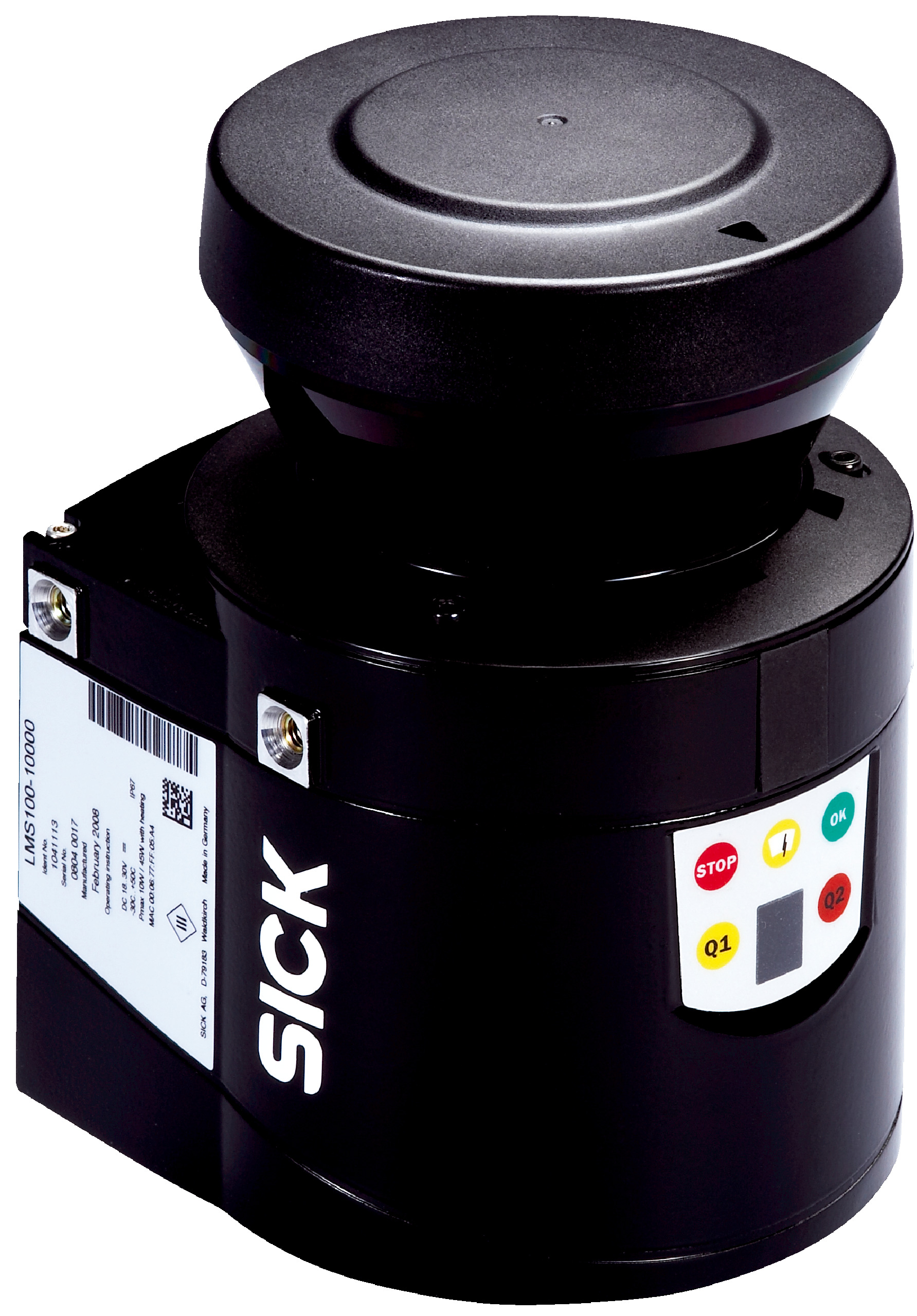

Indoor Security Laser Sensor | Infrared 905 nm | IP65 Rated | 270° Aperture Angle | by SICK
The Indoor Security Laser Sensor is designed for precise object detection and monitoring, utilizing an infrared light source with a 905 nm wavelength. With a wide horizontal aperture angle of 270° and a high scanning frequency of 50 Hz, it’s perfect for indoor security applications. Built for reliability, this sensor features an IP65 rated enclosure for dust and water protection, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Security Laser Sensor | Infrared 905 nm | IP65 Rated | 270° Aperture Angle | by SICK
Brand: SICK
SKU: 1051300
Alternatively Known As: Indoor Security Laser Sensor, Infrared Laser Scanner, SICK VdS Laser Sensor
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Scanning frequency: 50 Hz
- Angular resolution: 0.25° and 0.5° options
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Amount of evaluated echoes: 2
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typically 8 W, max 20 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 50178)
- Response time: ≥ 20 ms
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Interfaces: Ethernet (TCP/IP), RS-232 serial, CAN
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -30 °C to +70 °C
- EMC: EN 61000-6-2:2005 / EN 61000-6-4 (2007-01)
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 and EN 60825-1:2014+A11:2021
- Wide horizontal aperture angle of 270°
- High scanning frequency of 50 Hz
- Angular resolution options of 0.25° and 0.5°
- Working range from 0.5 m to 20 m, with scanning range up to 18 m at 10% remission factor
- Two evaluated echoes for enhanced detection
- IP65 rated enclosure for dust and water protection
- Multiple interface options including Ethernet (TCP/IP), RS-232 serial, and CAN
- Digital inputs and outputs with relay and digital output options
- Robust mechanical design with black housing (RAL 9005)
- Operating temperature range from 0 °C to +45 °C
- High electromagnetic compatibility and vibration/shock resistance
- Integrated field evaluation and security parameterization with up to 10 field sets
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with security sensor systems and electrical standards.
Applications
- Indoor security monitoring
- Object detection and evaluation in security systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W usage
- Durable design reduces need for frequent replacements
- High electromagnetic compatibility minimizes interference with other devices
Warranty Information
Warranty details available upon request from manufacturer.
Available Now

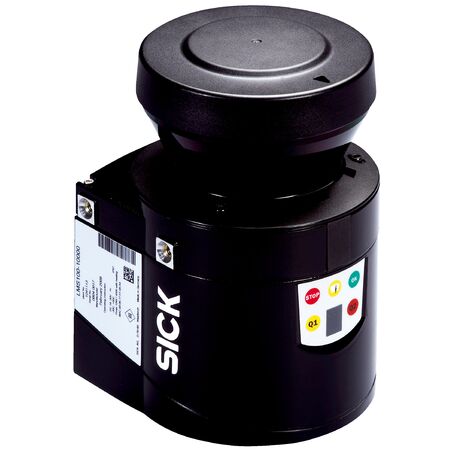

The SICK LMC122-11000 VdS Indoor Security Infrared Laser Sensor is available for immediate purchase, ideal for indoor security and object detection applications.
