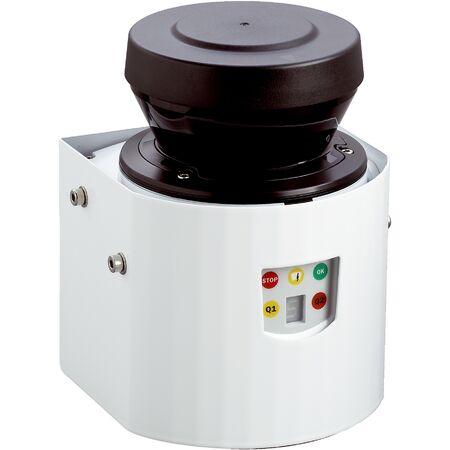

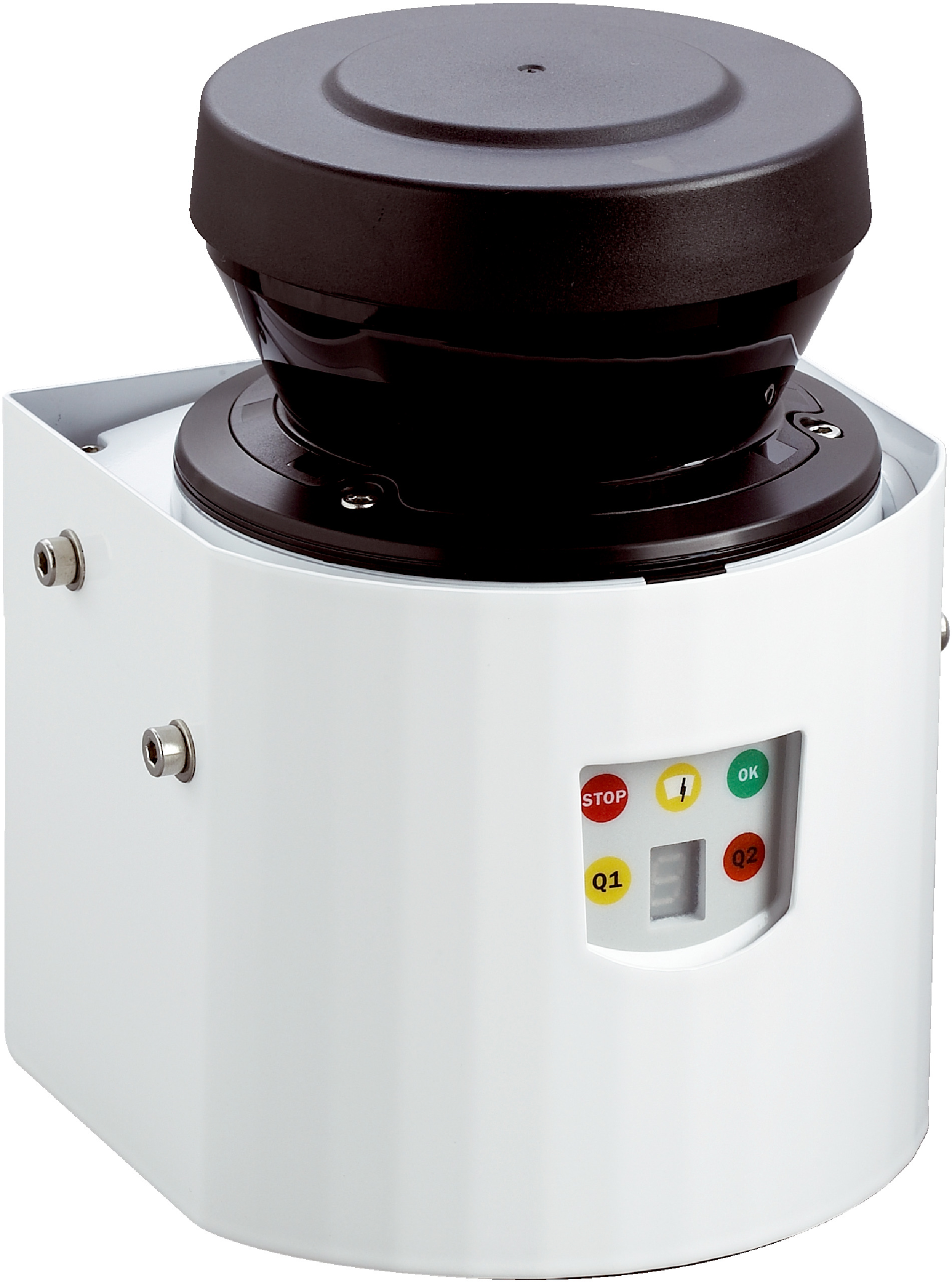

Indoor Security Laser Sensor LMC121-11000 | Infrared Light Source | 270° Aperture Angle | 50 Hz Scanning Frequency | by SICK
The Indoor Security Laser Sensor LMC121-11000 is designed for effective indoor security monitoring and perimeter protection. Featuring an infrared light source with a 270° aperture angle and a high scanning frequency of 50 Hz, this VdS certified sensor ensures reliable intrusion detection. Built for durability and low power consumption, it’s perfect for professional installations in various security applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Security Laser Sensor LMC121-11000 | Infrared Light Source | 270° Aperture Angle | 50 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1051287
Alternatively Known As: Indoor Security Laser Sensor, Infrared Laser Scanner, VdS Certified Laser Sensor
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° and 0.5°
- Scanning frequency: 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Amount of evaluated echoes: 2
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, max 20 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 50178)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rate Ethernet: 10/100 MBit/s
- Data transmission rate Serial: 9.6 kBaud to 115.2 kBaud
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 40,000 lx
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270°
- High scanning frequency of 50 Hz
- Working range from 0.5 m to 20 m, with scanning range up to 18 m at 10% remission factor
- IP65 rated enclosure for dust and water protection
- Multiple interfaces including Ethernet TCP/IP, RS-232 serial, and CAN
- Digital inputs and outputs with relay and digital options
- Robust mechanical design with gray housing (RAL 7032)
- Long mean time between failures (MTBF) greater than 100 years
- Integrated field evaluation and security parameterization
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with security sensor systems and electrical safety standards.
Applications
- Indoor security monitoring
- Intrusion detection
- Perimeter protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with typical 8 W usage
- Durable design reduces need for frequent replacements
- High reliability minimizes electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LMC121-11000 VdS Indoor Security Infrared Laser Sensor is available for immediate purchase, ideal for indoor security and perimeter protection applications.
