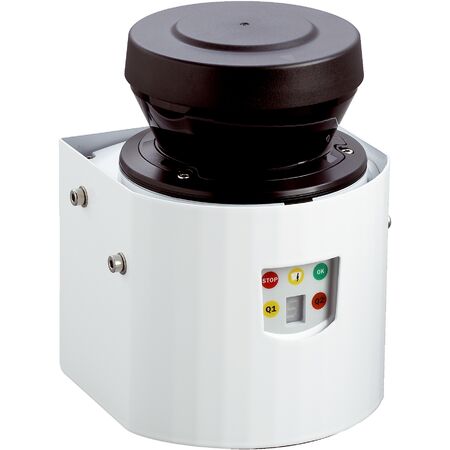

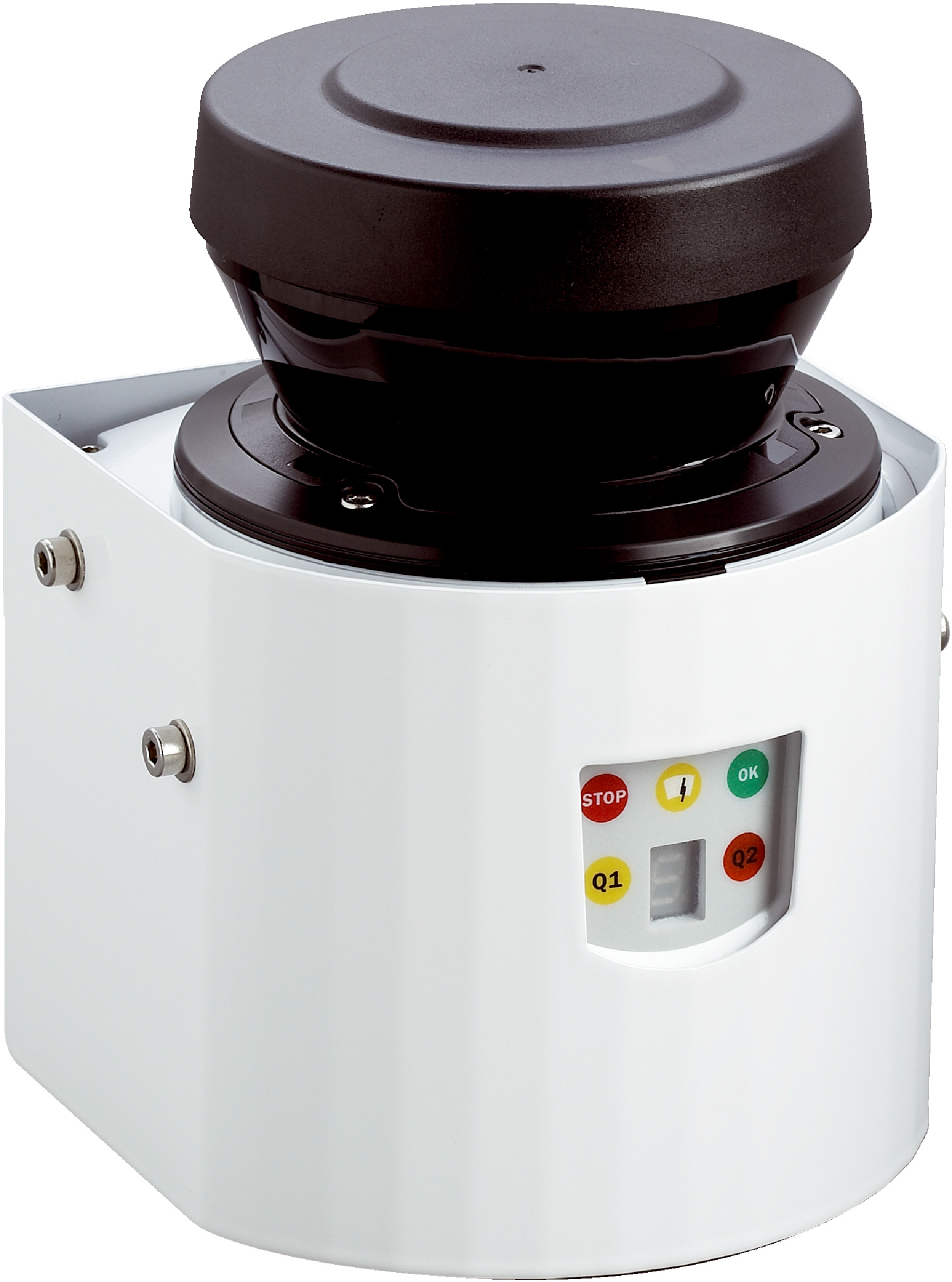

Indoor Security Laser Sensor LMC123-11000 VdS | Infrared Light Source | IP65 Rated | 270° Aperture Angle | by SICK
The Indoor Security Laser Sensor LMC123-11000 VdS is designed for precise object detection in security applications. Featuring an infrared light source with a 270° aperture angle and IP65 enclosure, it ensures reliable performance in various environments. With a scanning frequency of 50 Hz and a working range of 0.5 m to 20 m, this sensor is perfect for indoor security setups, providing robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Indoor Security Laser Sensor LMC123-11000 VdS | Infrared Light Source | IP65 Rated | 270° Aperture Angle | by SICK
Brand: SICK
SKU: 1051301
Alternatively Known As: Indoor Security Laser Sensor, Infrared Laser Scanner, VdS Certified Laser Sensor
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° to 0.5°
- Scanning frequency: 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Amount of evaluated echoes: 2
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, max 20 W
- Housing color: Signal white (RAL 9003)
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 50178)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rates: Ethernet 10/100 MBit/s, Serial 9.6 kBaud to 115.2 kBaud
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Optical indicators: 7-segment display plus 5 LEDs
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 40,000 lx
- EMC: EN 61000-6-2:2005 / EN 61000-6-4 (2007-01)
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency of 50 Hz with a working range of 0.5 m to 20 m
- IP65 rated enclosure for dust and water protection
- Multiple interfaces including Ethernet TCP/IP, RS-232 serial, and CAN
- Digital inputs and outputs with relay and digital output options
- Robust against electromagnetic interference and vibration
- Integrated field evaluation and security conform parameterization
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety and operational standards.
Applications
- Indoor security applications
- Object detection and evaluation in security systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W usage
- Long service life with MTBF greater than 100 years reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LMC123-11000 VdS Indoor Security Infrared Laser Sensor is available for immediate purchase, ideal for indoor security and object detection applications.
