Inductive Proximity Sensor | 0.6 mm Sensing Range | IP67 Rated | 5000 Hz Switching Frequency | by SICK

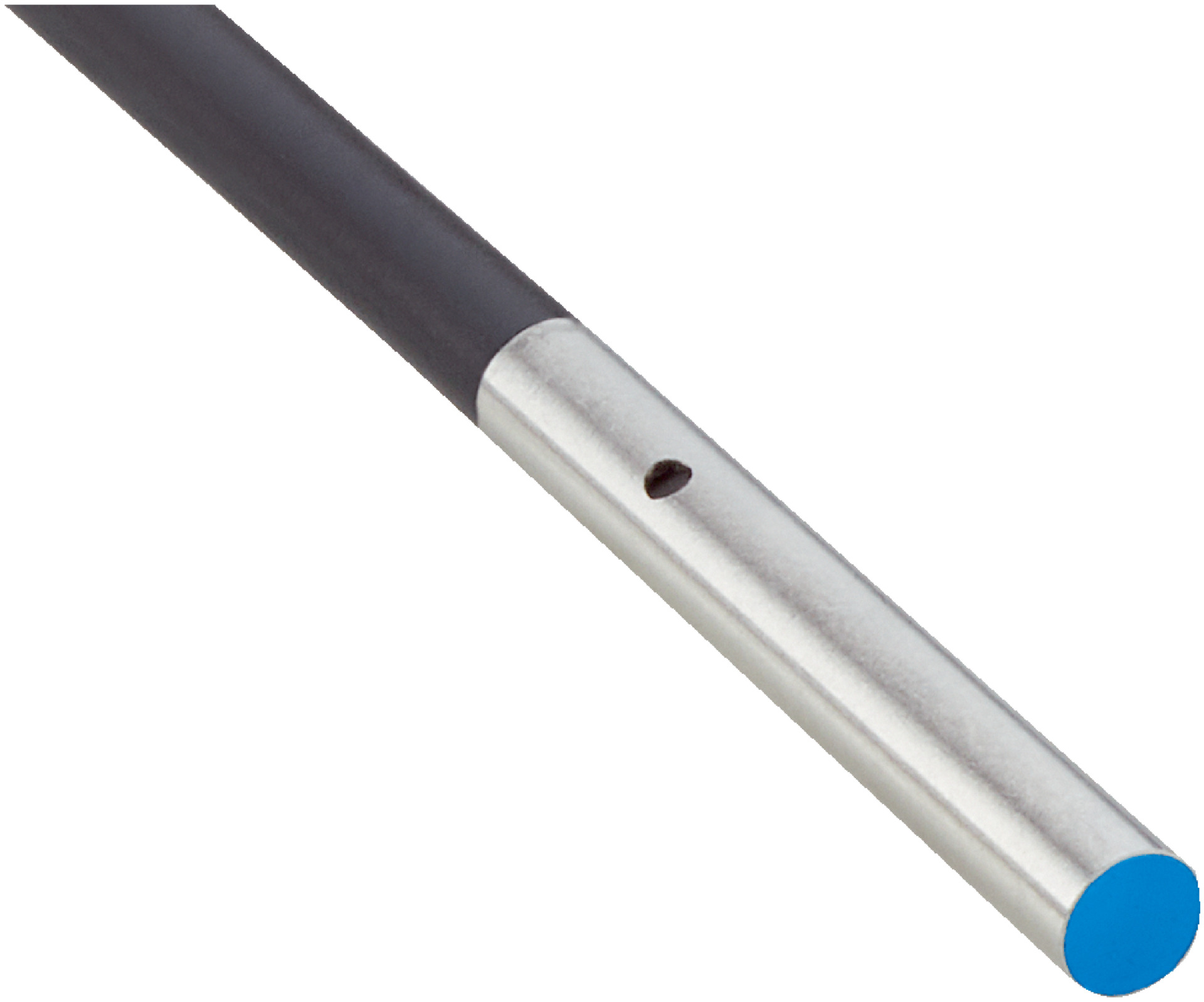

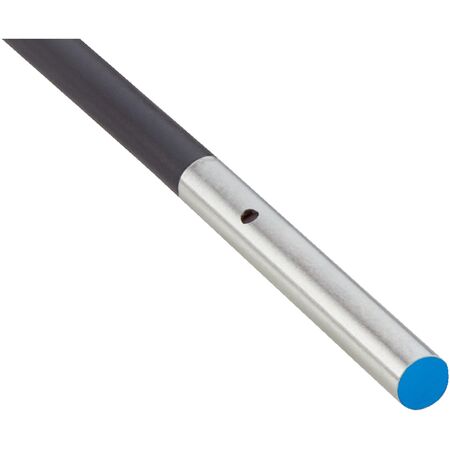

The Inductive Proximity Sensor IHM03-0B6POVU2S features a 0.6 mm sensing range and a high switching frequency of 5,000 Hz, making it perfect for industrial automation and metal detection applications. With an IP67 rated enclosure for dust and water protection, this sensor is built for reliability in harsh environments, ensuring optimal performance in machine safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 0.6 mm
- Safe sensing range Sa: 0.486 mm
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: PNP, NC function
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR with 0.08 mm² conductor size
- Cable diameter: 2.5 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Enclosure rating: IP67
- Short-circuit and power-up pulse protection included
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 6mm x 22mm x 6mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 3 mm diameter sensing face
- High switching frequency of 5,000 Hz
- PNP switching output with NC function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper flush installation and compliance with safety standards.
Applications
- Industrial automation for metal object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-0B6POVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
