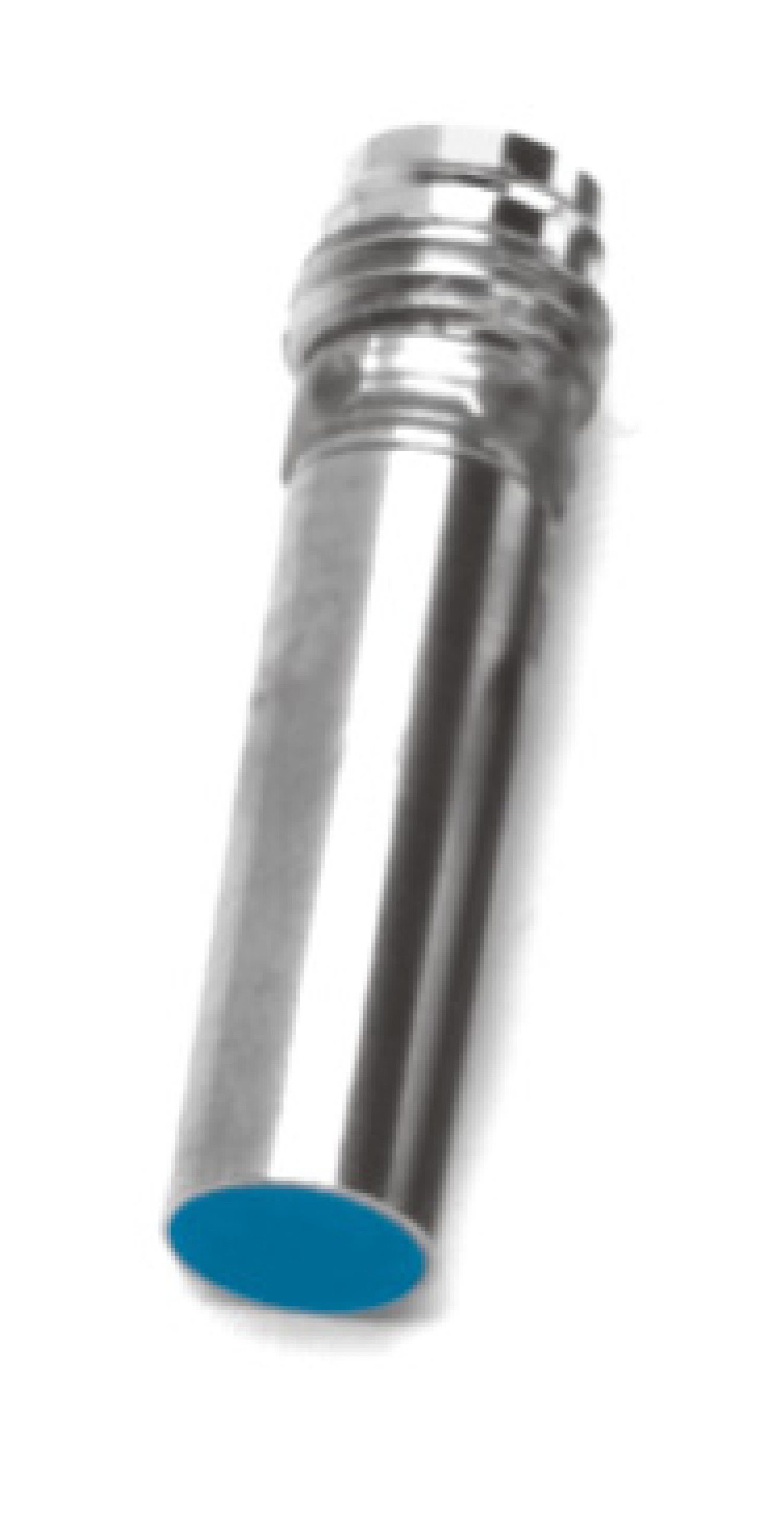

Inductive Proximity Sensor | 1.5mm Sensing Range | 5,000 Hz Switching Frequency | IP67 Rated | by SICK
Inductive Proximity Sensor with a 1.5mm sensing range and a high switching frequency of 5,000 Hz—ideal for industrial automation and machinery safety applications. Built for reliable object detection, this sensor features a durable stainless steel housing and is IP67 rated for dust and water protection, ensuring longevity and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: Ø 6.5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally open
- Supply voltage: 10 V DC to 30 V DC
- Voltage ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, POM
- Ambient operating temperature: –25 °C to +70 °C
- EMC standards: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Short-circuit protection: Yes
- Dimensions (H x L x W): 6.5mm x 29mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 29 mm housing length
- Flush installation type
- High switching frequency of 5,000 Hz
- NPN switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low voltage DC 3-wire electrical wiring
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

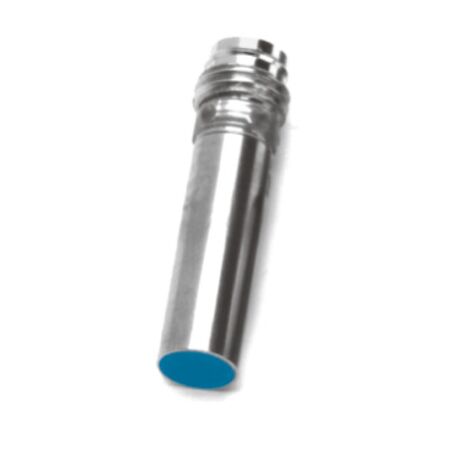

The SICK IH06-1B5NS-VTK inductive sensor is available for immediate purchase, ideal for industrial automation and machinery safety applications.
