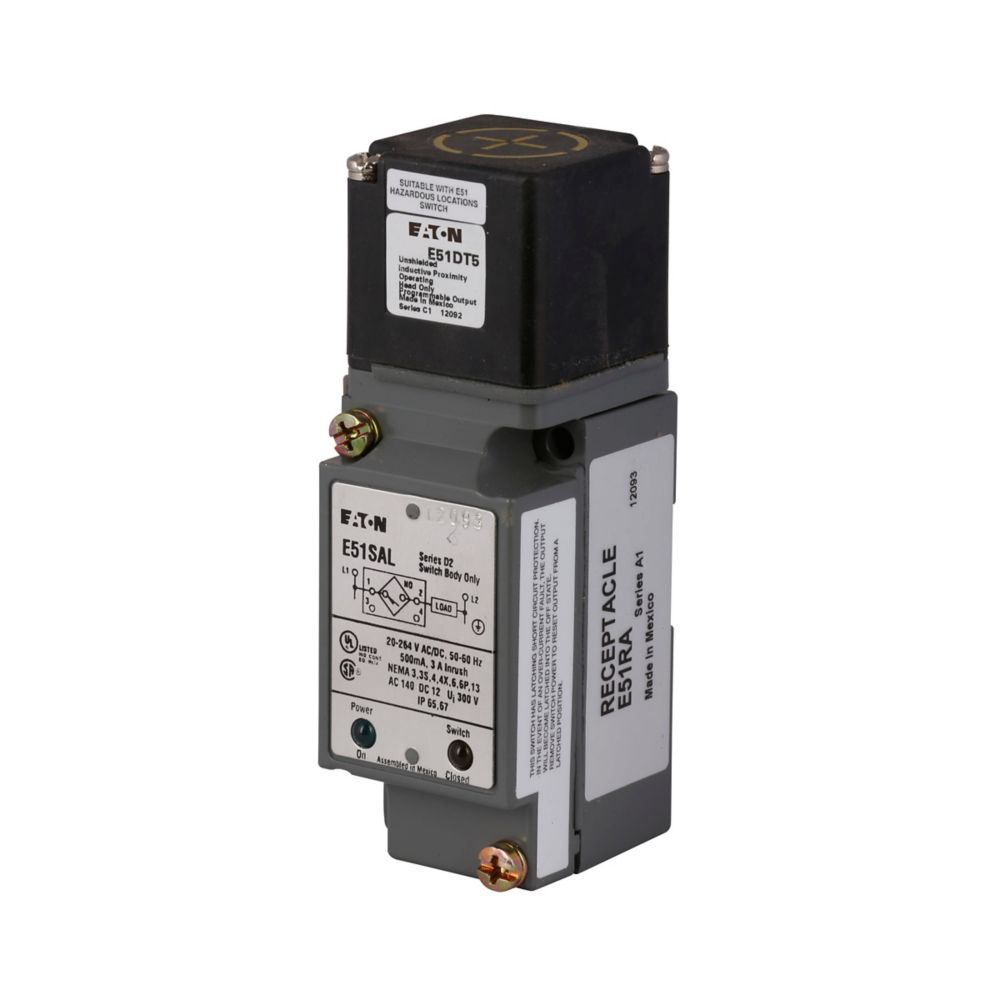

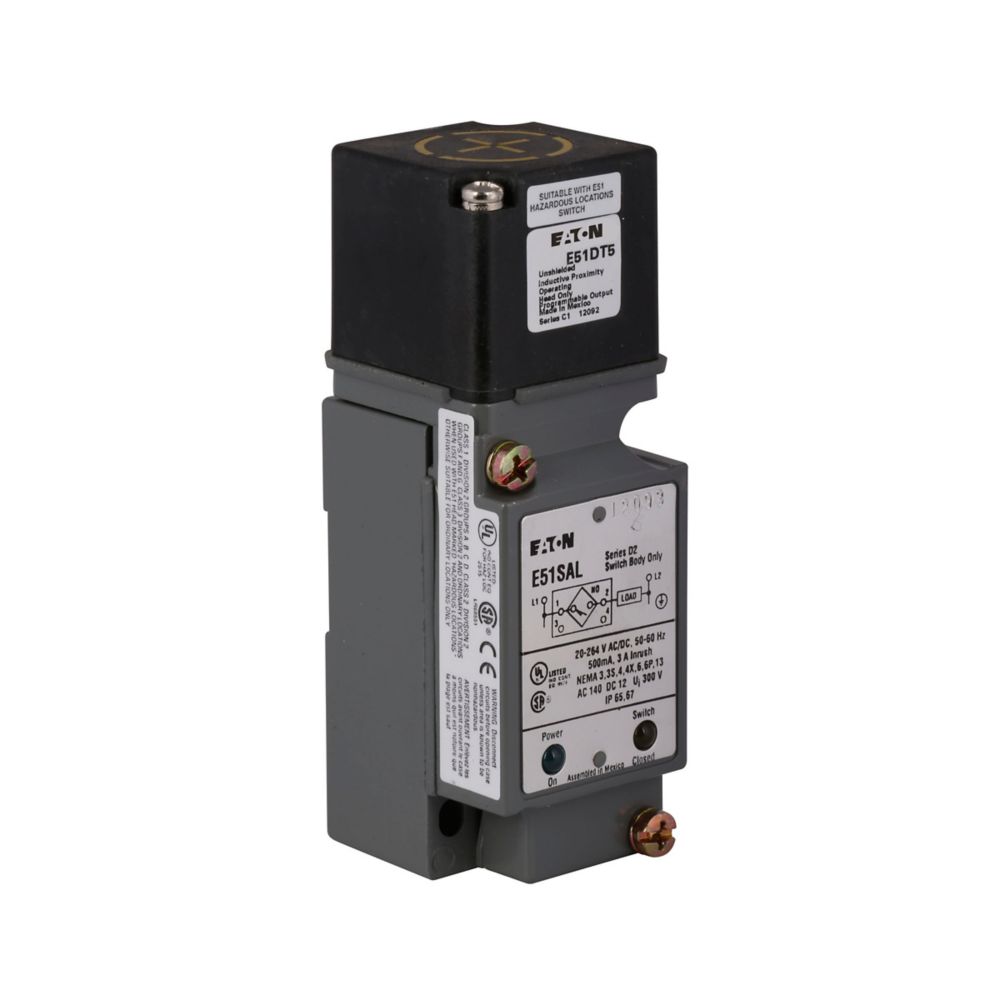

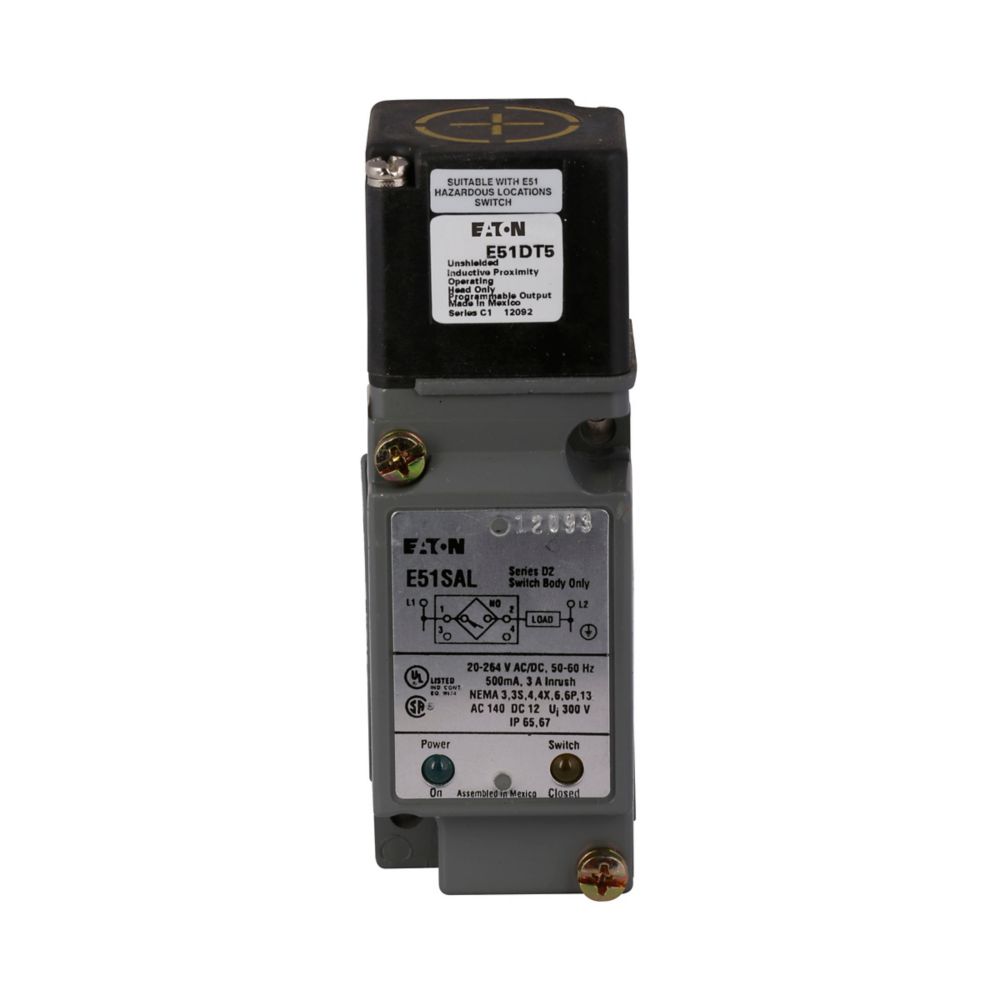

Inductive Proximity Sensor 24mm | 500 mA AC/DC Output | NEMA 3, 4, 6, IP67 | by Eaton
The Inductive Proximity Sensor 24mm is designed for reliable position sensing in industrial automation. With a robust die cast zinc enclosure and a sensing range of 0.94 inches, it features a 500 mA AC/DC solid state output and NO/NC contact configuration. Ideal for applications like conveyor systems and manufacturing process control, this sensor ensures durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor 24mm | 500 mA AC/DC Output | NEMA 3, 4, 6, IP67 | by Eaton
Brand: Eaton
SKU: E51ALT5
Alternatively Known As: E51 Proximity Sensor, Eaton Inductive Sensor 24mm, E51ALT5 Proximity Switch, NEMA Inductive Proximity Sensor
Technical Specifications
- Sensing Range: 0.94 inches (24mm)
- Output: 500 mA AC/DC solid state
- Contact Configuration: NO/NC
- Frequency Rating: Standard
- Enclosure Material: Die cast zinc
- Connection Type: Screw terminal
- LED Indicator: Output ON (1 LED per output)
- Operating Temperature: -13°F to 158°F (-25°C to 70°C)
- Environmental Rating: NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13, IP67
- Input Voltage: 20-264 Vac/dc
- Protection: Latching short circuit
- Dimensions (H x L x W): 45mm x 115mm x 39mm
- Weight: 0.48 kg
Key Features
- Inductive modular proximity sensor with 0.94 inch sensing range
- Unshielded actuator function for top sensing
- 500 mA AC/DC solid state output with NO/NC contact configuration
- Die cast zinc enclosure providing robust protection
- Screw terminal connection for secure wiring
- LED indicator for output ON status
- Environmental ratings: NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 and IP67
- Operating temperature range from -13°F to 158°F
- Latching short circuit protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with electrical standards.
Applications
- Industrial automation for position sensing
- Limit switch replacement in machinery
- Conveyor system object detection
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Solid state output reduces mechanical wear and extends sensor life
- Robust enclosure reduces need for frequent replacements, minimizing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E51 NEMA inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
