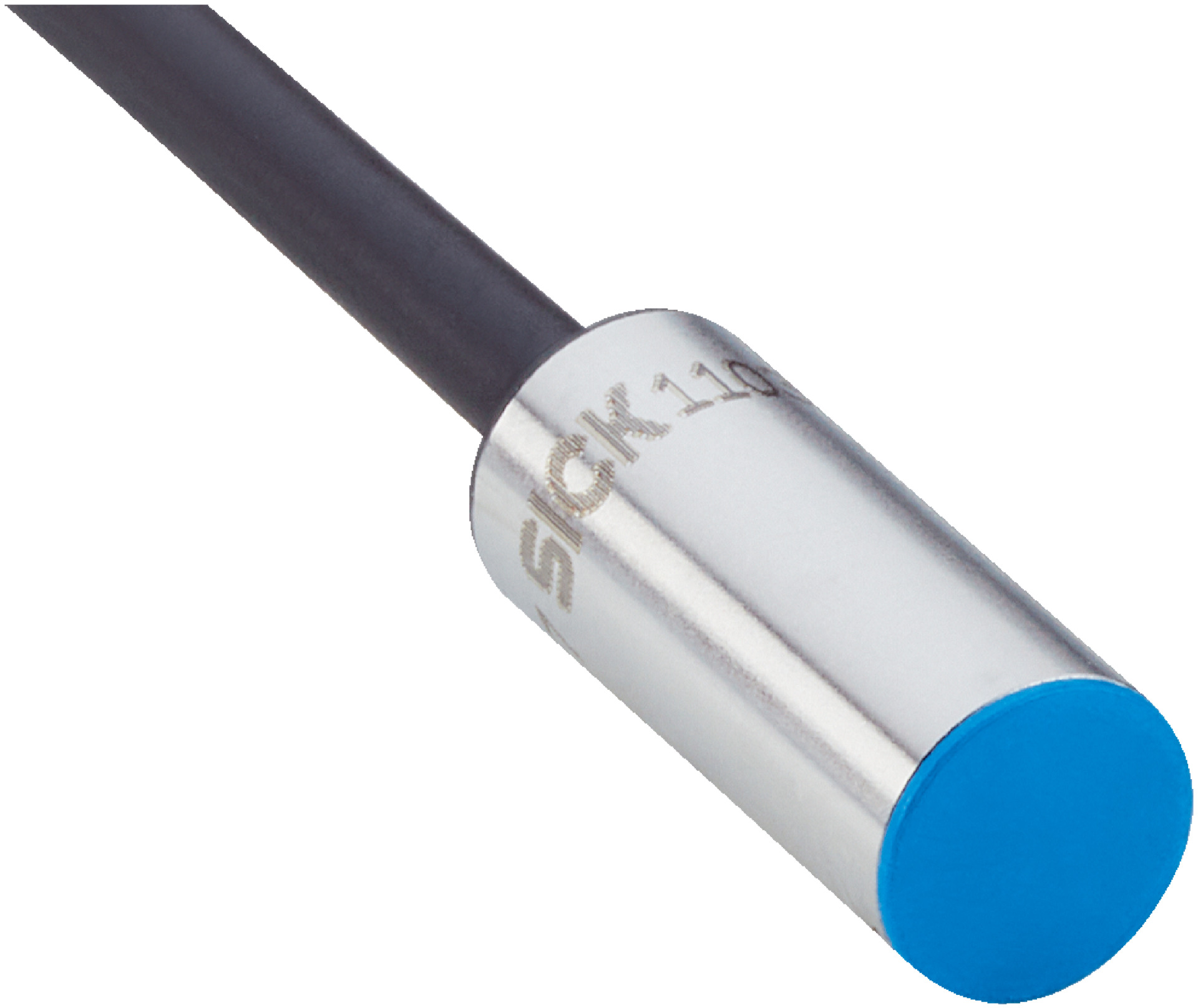

Inductive Proximity Sensor | 2mm Sensing Range | IP67 Rated | 5000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for precise object detection with a sensing range of 2 mm and a high switching frequency of 5,000 Hz. Ideal for industrial automation and safety control systems, this sensor features a durable stainless steel housing and an IP67 rating for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC
- Conductor size: 0.14 mm²
- Cable diameter: 2.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 16 mm
- Dimensions (H x L x W): 6.5mm x 16mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 16 mm housing length
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz
- NPN switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor placement.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

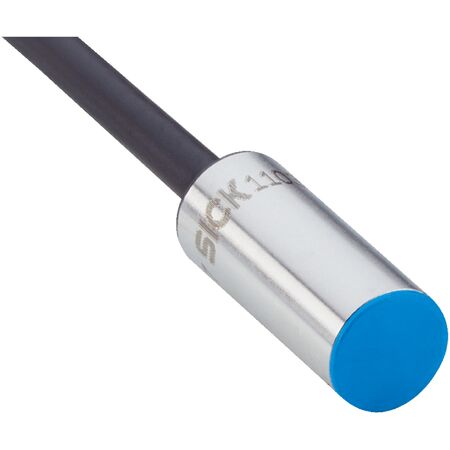

The SICK IHM06-02BNSVW2G Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
