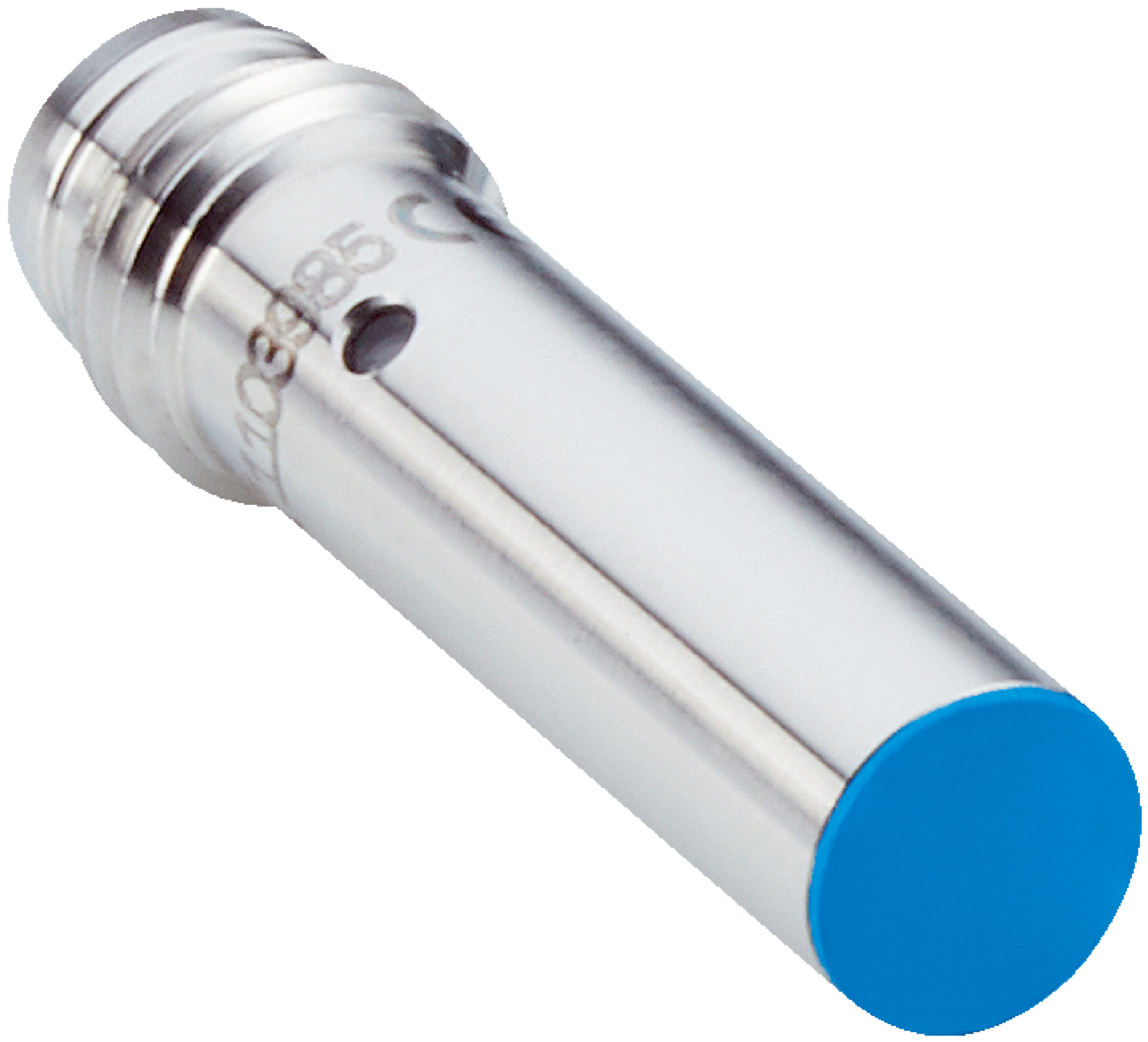

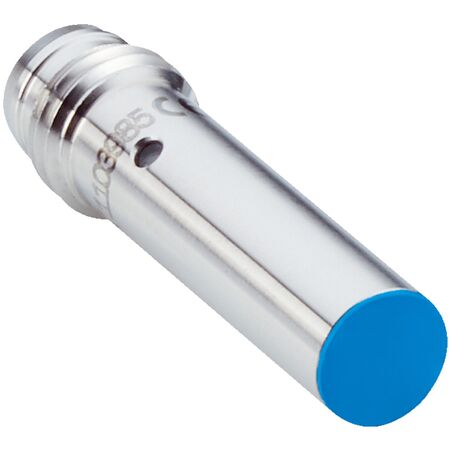

Inductive Proximity Sensor | 3mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor IHM06-03BPSVT0G features a 3mm sensing range and high switching frequency of 1,500 Hz, making it ideal for industrial automation and precise object detection. With an IP67 rated enclosure and durable stainless steel housing, this sensor is built for reliability in harsh environments, ensuring optimal performance in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- EMC compliant with EN 60947-5-2
- Operating temperature range: -25 °C to +70 °C
- Dimensions (H x L x W): 6.5mm x 29mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short housing model with 6.5 mm diameter
- Flush installation type
- High switching frequency of 1,500 Hz
- PNP switching output with normally open function
- Visual adjustment indicator and IO-Link communication
- Triple sensing range for versatile applications
- IP67 rated enclosure for dust and water protection
- Stainless steel V2A housing for durability
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection using M8, 3-pin connector.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-03BPSVT0G inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications.
