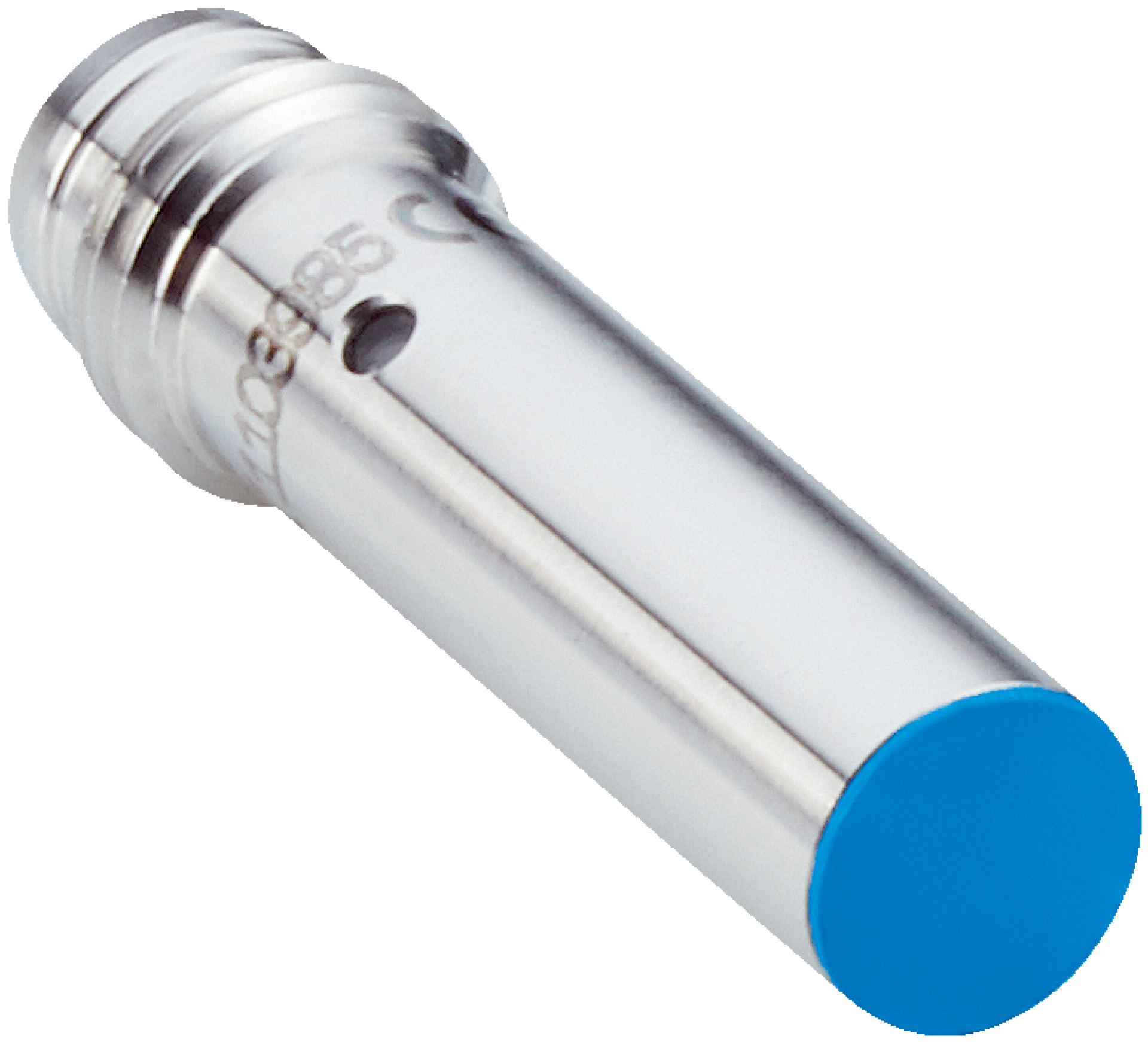

Inductive Proximity Sensor | 3 mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor is designed for precise object detection with a sensing range of 3 mm and an IP67 rated enclosure for dust and water protection. Ideal for industrial automation and machine safety applications, this sensor features a PNP switching output and a flush installation type, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 3 mm
- Safe sensing range Sa: 2.43 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Operating temperature range: -25°C to +70°C
- Connector type: M8, 3-pin
- Switching output: PNP, NC function
- EMC compliant with EN 60947-5-2
- Dimensions (H x L x W): 6.5mm x 29mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 6.5 mm diameter
- Flush installation type
- Switching frequency up to 1,500 Hz
- PNP switching output with NC function
- Visual adjustment indicator with triple sensing range
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage and current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

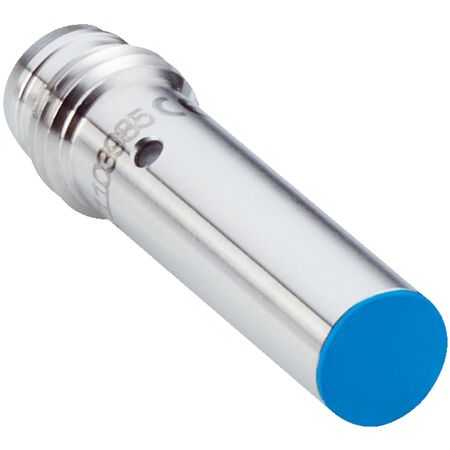

The SICK IHM06-03BPOVT0G inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
