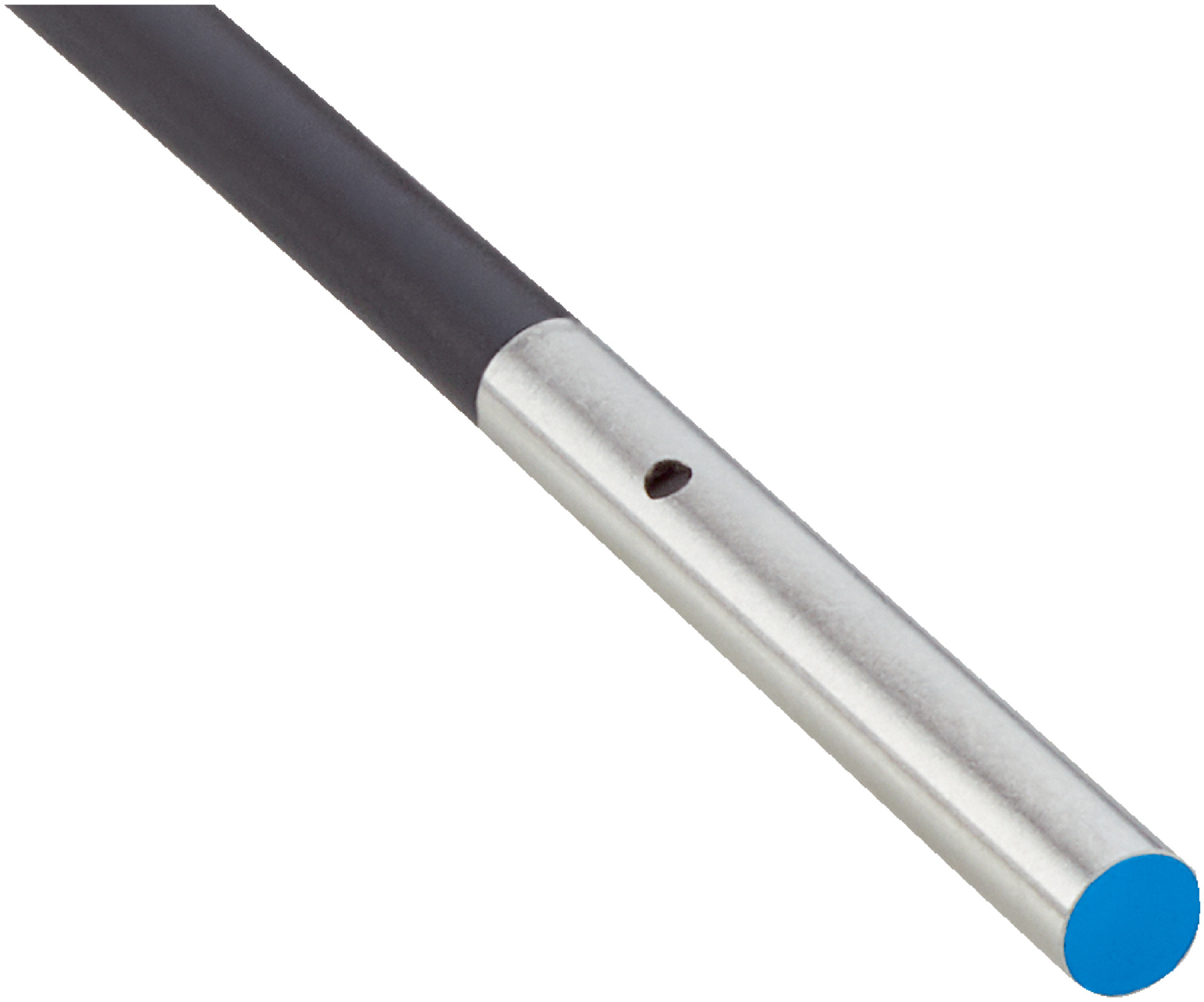

Inductive Proximity Sensor 3mm | NPN Output | IP67 Rated | High Switching Frequency | by SICK
Inductive Proximity Sensor 3mm is designed for precise object detection in industrial automation. With a sensing range of 0.6 mm and a high switching frequency of 5,000 Hz, it ensures fast and reliable performance. Built for durability with an IP67 rated enclosure, this sensor is perfect for manufacturing processes and safety systems requiring accurate sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 0.6 mm
- Safe sensing range Sa: 0.486 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of Sr: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable: PUR, 3-wire, 2 m length, diameter Ø 2.5 mm
- Switching output: NPN, normally closed (NC)
- EMC compliant with EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature: –25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Housing length: 22 mm
- Dimensions (H x L x W): 6mm x 22mm x 6mm
- Weight: 0.1 kg
Key Features
- Standard design housing with 3 mm diameter sensing face
- Flush installation type for seamless integration
- High switching frequency of 5,000 Hz for fast response
- NPN switching output with normally closed (NC) function
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

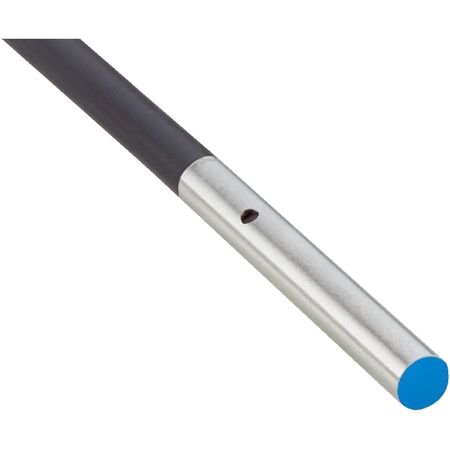

The SICK IHM03-0B6NOVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
