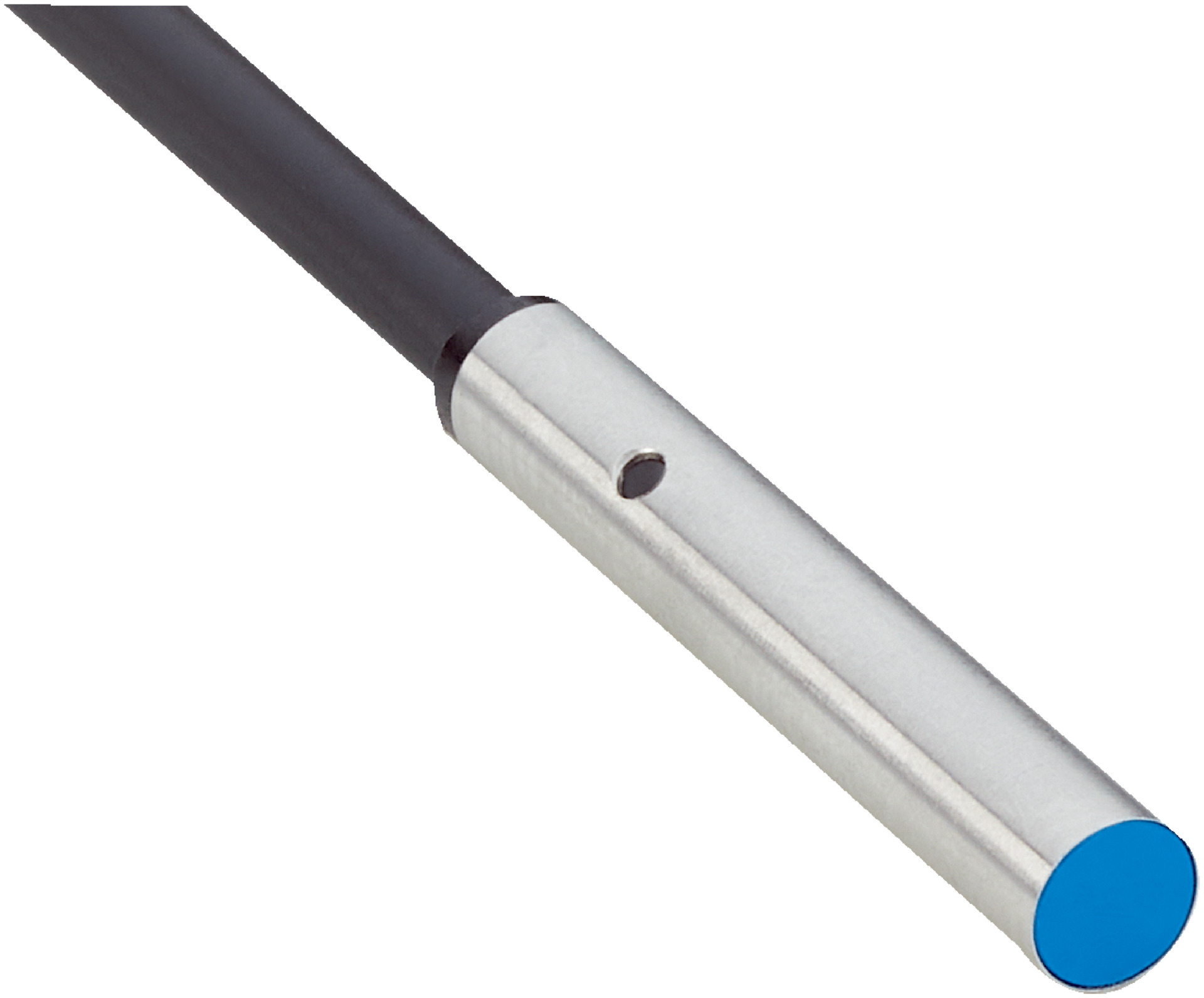

Inductive Proximity Sensor | 4mm Diameter | IP67 Rated | 4000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a 4mm diameter and a sensing range of 2.5 mm. With a high switching frequency of 4,000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for manufacturing processes and safety systems, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 4,000 Hz
- Switching output: PNP, Normally Open (NO)
- Sensing range Sn: 2.5 mm
- Safe sensing range Sa: 2.025 mm
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Cable: 3-wire, 2 m PUR cable, diameter 2.9 mm
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 4mm x 25mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Diameter of 4 mm with quasi-flush installation type
- Sensing range of 2.5 mm and safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz with PNP NO output
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Cable connection type with 3-wire, 2 m PUR cable
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g and 10-55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor wiring to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

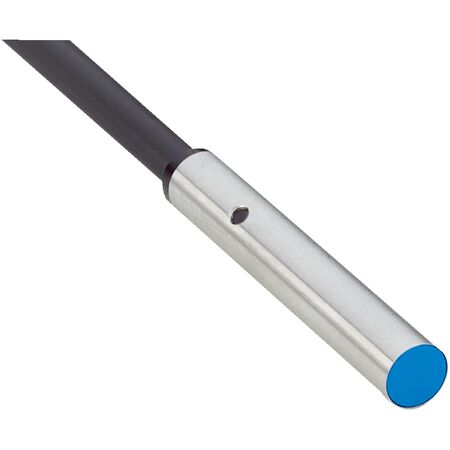

The SICK IHM04-2B5PSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
