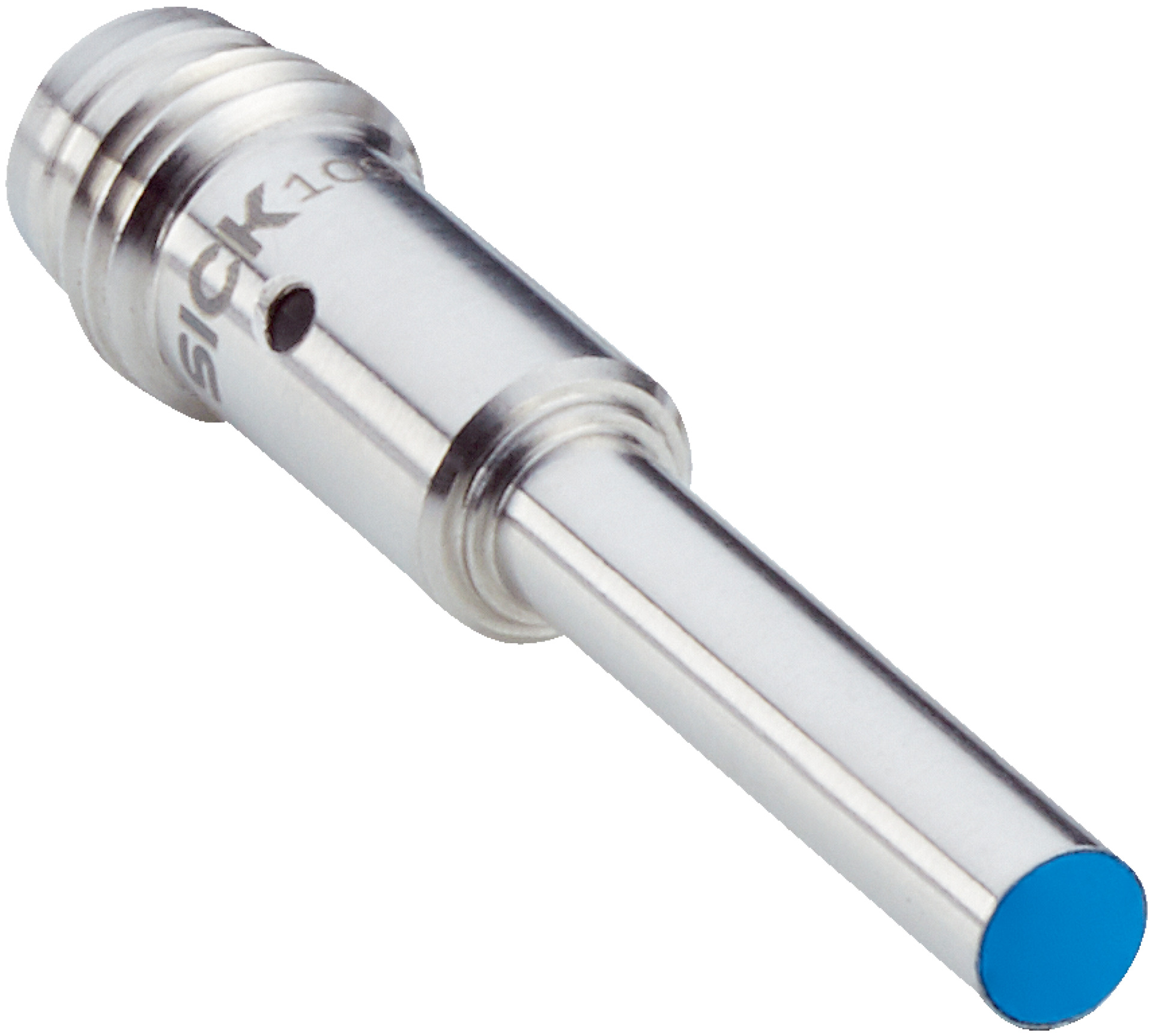

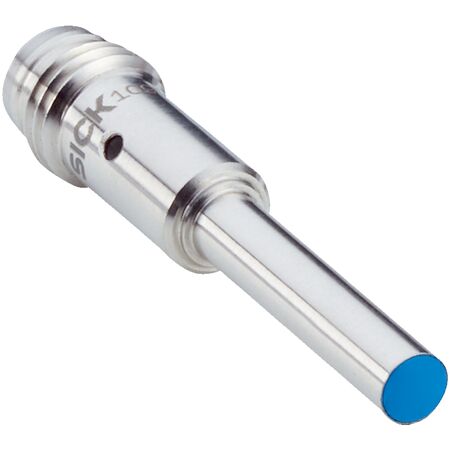

Inductive Proximity Sensor | 4mm Diameter | IP67 Rated | 4000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM04-2B5PSVT0S features a compact 4mm diameter design, ideal for industrial automation and machine safety applications. With a high switching frequency of 4,000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments. This sensor is perfect for object detection and position sensing in manufacturing processes, providing durability and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor | 4mm Diameter | IP67 Rated | 4000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1108724
Alternatively Known As: Inductive Proximity Sensor, IO-Link Inductive Sensor, 4mm Diameter Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature operating range: -10°C to +60°C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Voltage drop: ≤ 2 V
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 4mm x 38mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Diameter of 4 mm with quasi-flush installation type
- Sensing range of 2.5 mm and safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz with PNP NO output
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Triple sensing range capability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM04-2B5PSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
