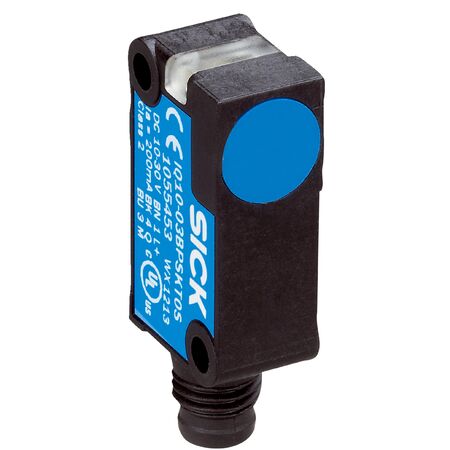

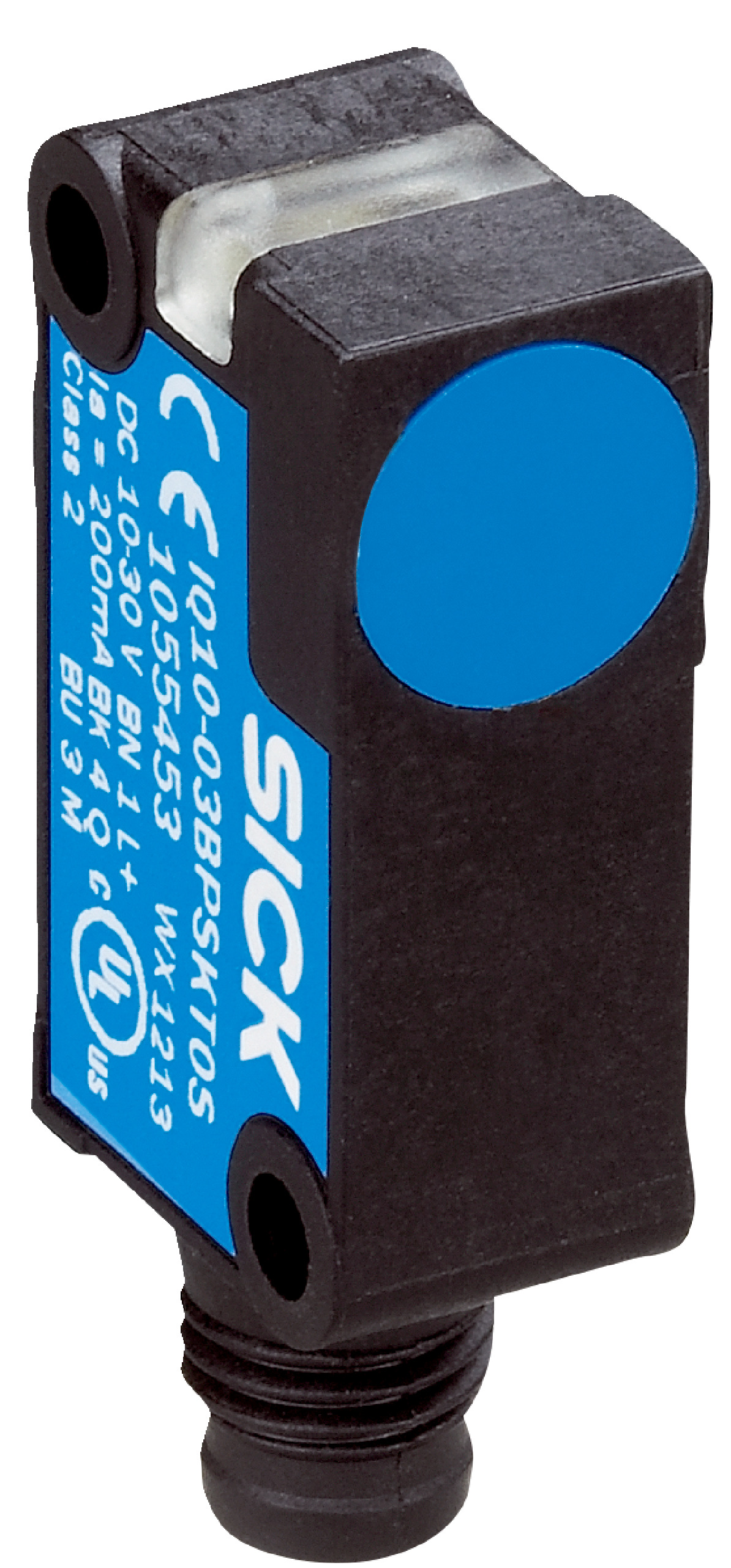

Inductive Proximity Sensor | 4mm Sensing Range | IP68 Rated | 2000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for precise object detection with a sensing range of 4 mm and a high switching frequency of 2,000 Hz. Ideal for industrial automation and metal detection applications, this sensor features a robust IP68 rated enclosure, ensuring durability in harsh environments. With NPN normally open output and shock resistance, it’s perfect for manufacturing lines and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular plastic VISTAL®
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Cable material: PVC, diameter 3.7 mm
- Conductor size: 0.25 mm²
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: ≤ 1 Nm
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 4 mm with triple sensing range characteristic
- High switching frequency of 2,000 Hz
- NPN normally open switching output
- IP68 rated enclosure for robust protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes electronic waste through extended lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IQ10-04BNSKW2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
