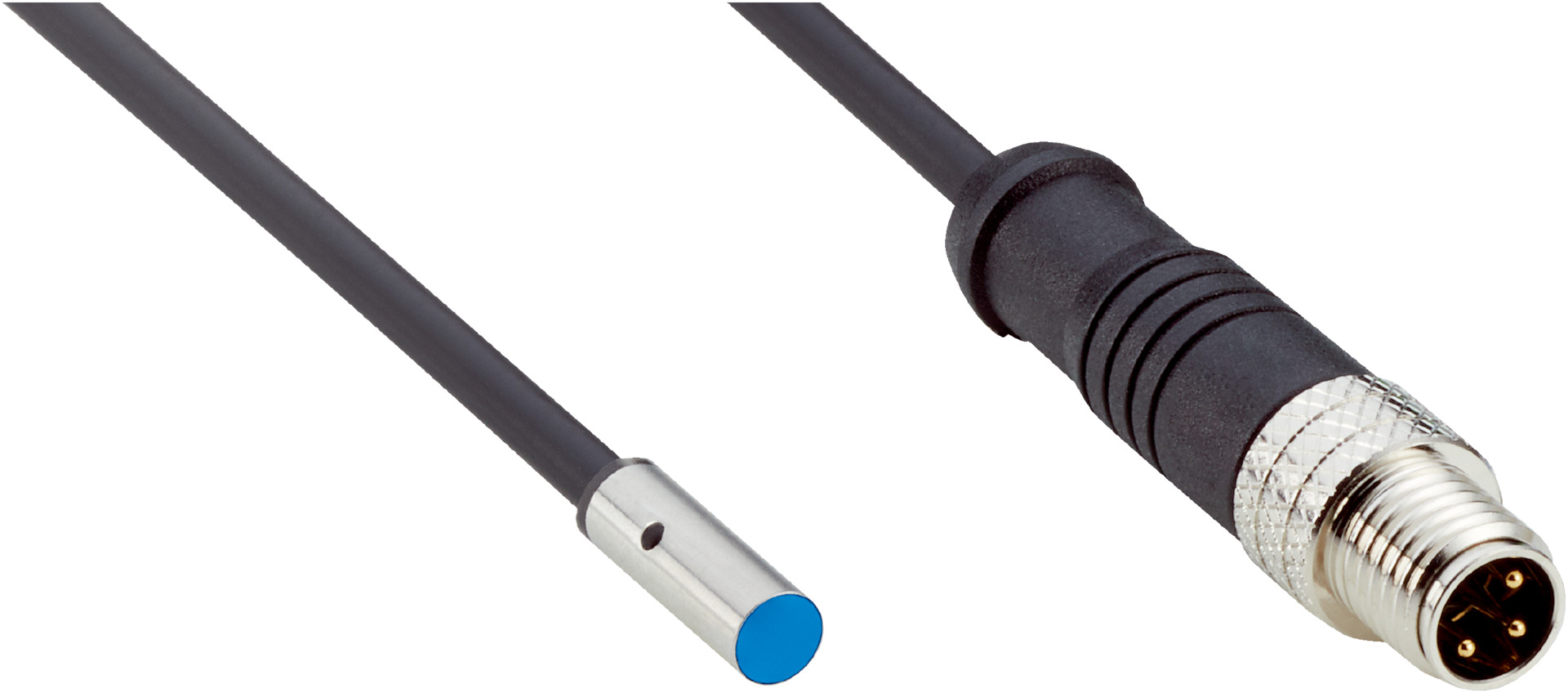

Inductive Proximity Sensor 4mm | Short-Body Metal Design | IP67 Rated | PNP NO Output | by SICK
The Inductive Proximity Sensor 4mm is designed for precise object detection in industrial automation, featuring a short-body metal design and an IP67 rated enclosure for dust and water protection. With a sensing range of 2.5 mm and a high switching frequency of 4,000 Hz, this sensor is perfect for metal detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 100 mA
- Cable material: PUR, diameter 2.9 mm
- Short-circuit and power-up pulse protection included
- EMC compliant with EN 60947-5-2
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 12mm x 20mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 4 mm diameter
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- Cable with M8, 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Housing made of stainless steel V2A (AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring, mounting, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Automation systems requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- IO-Link interface enables efficient device communication and diagnostics
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

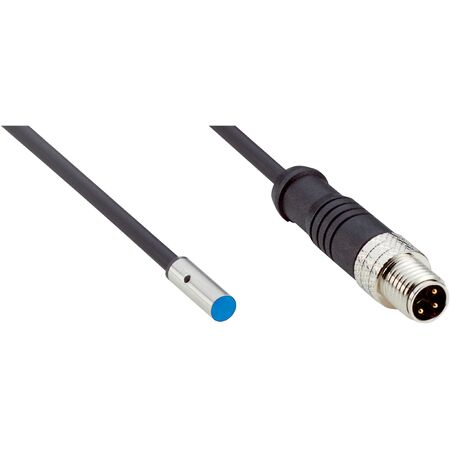

The SICK IHM04-2B5PSVR8K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
