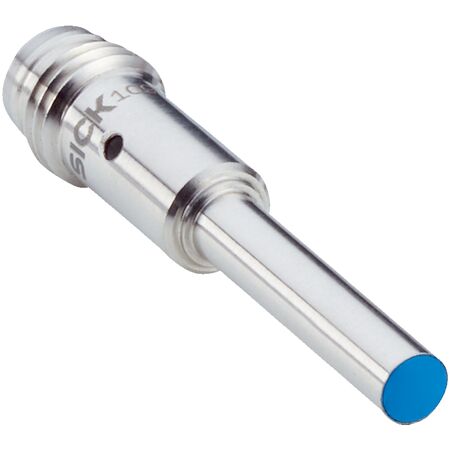

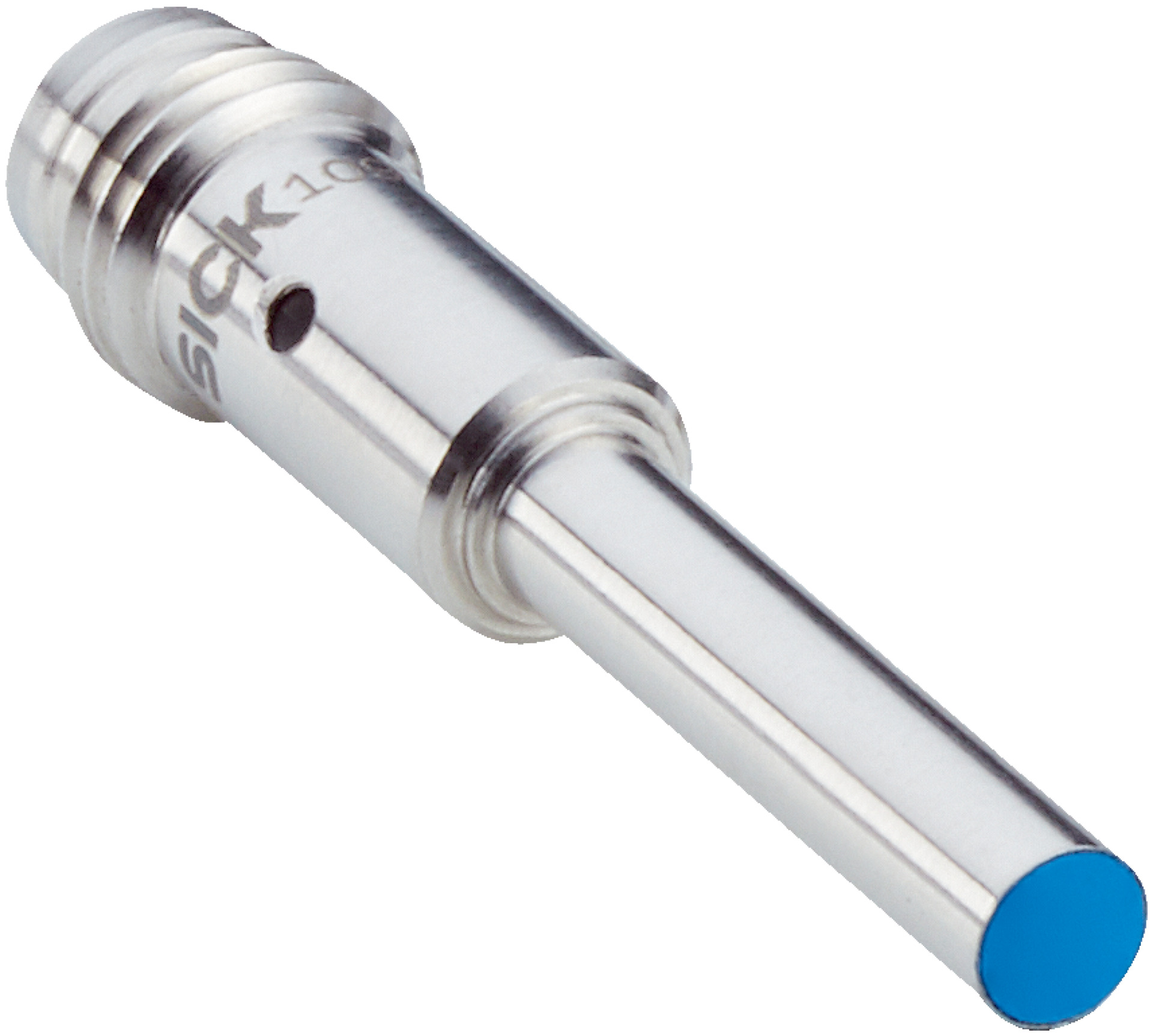

Inductive Proximity Sensor 4mm | Stainless Steel Housing | 2.5mm Sensing Range | IP67 Rated | by SICK
Inductive Proximity Sensor 4mm designed for industrial automation, featuring a durable stainless steel housing and a sensing range of 2.5mm. With a high switching frequency of 4,000 Hz and IP67 rating for dust and water protection, this sensor is perfect for precise object detection and position sensing in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 4 mm
- Sensing range Sn: 2.5 mm
- Safe sensing range Sa: 2.025 mm
- Installation type: Quasi-flush
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -10 °C to +60 °C
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- UL File No.: NRKH.E348498
- Dimensions (H x L x W): 4mm x 38mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- 4 mm diameter sensing face made of plastic LCP
- Quasi-flush installation type
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from -10 °C to +60 °C
- Complies with EMC standard EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity detection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- Robust design minimizes replacement frequency and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IHM04-2B5NSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise proximity sensing.
